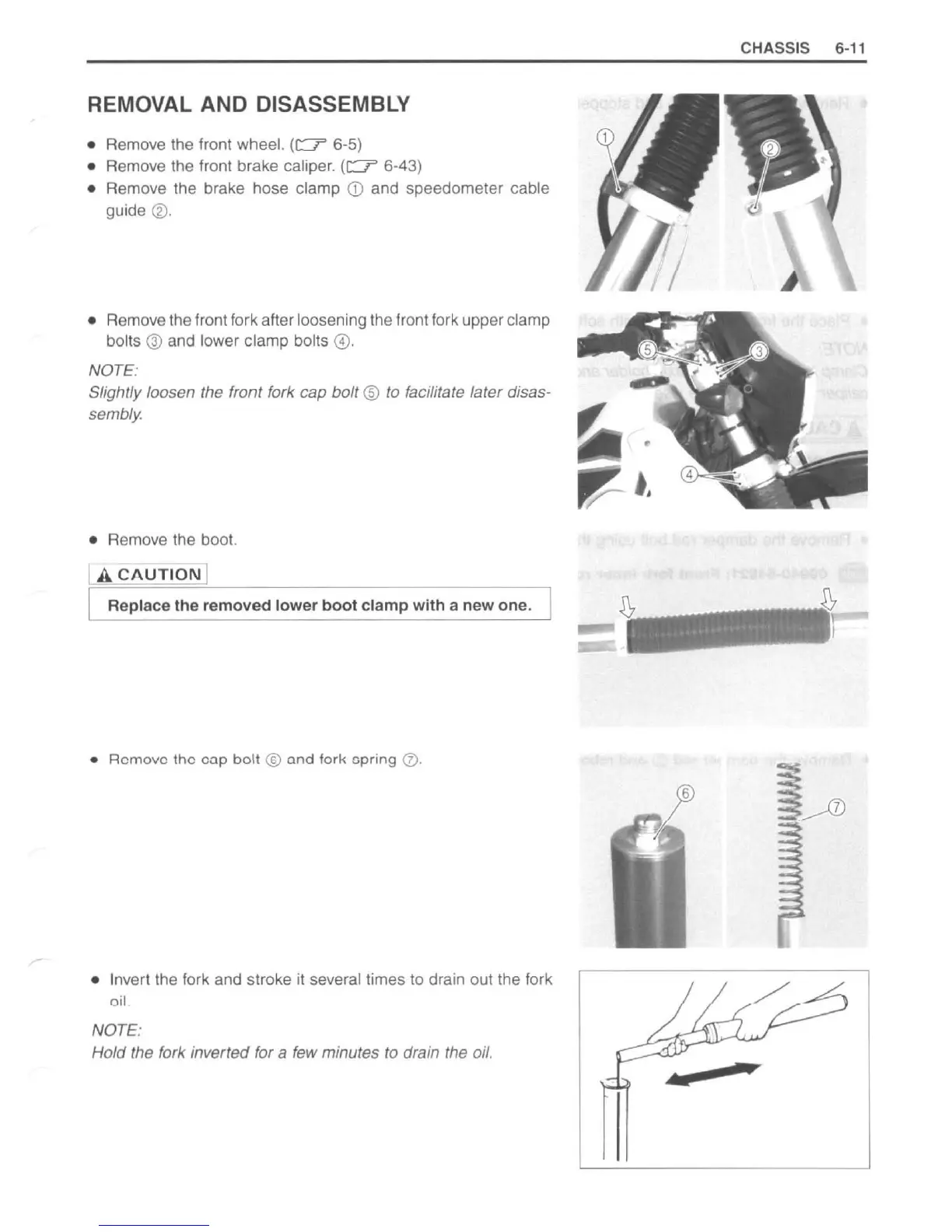

REMOVAL AND DISASSEMBLY
• Remove the front wheel. (c::? 6-5)
• Remove the front brake caliper. (c::? 6-43)
• Remove the brake hose clamp CD and speedometer cable
guide ®.
• Remove the front fork after loosening the fronl fork upper clamp
bolts
@ and lower clamp bolts @.
NOTE:
Slightly loosen the front fork cap bolt ® to facilitate later disas-
sembly
• Remove the boot.
! A CAUTION !
Replace
the removed lower boot clamp with a new one _
• Remove the cap bolt ® and fork cpring 0.
• Invert the fork and stroke it several times to drain out the fork
oil.
NOTE:
Hold the fork inverted for a few minutes to drain the oil.
CHASSIS 6 -1 1
