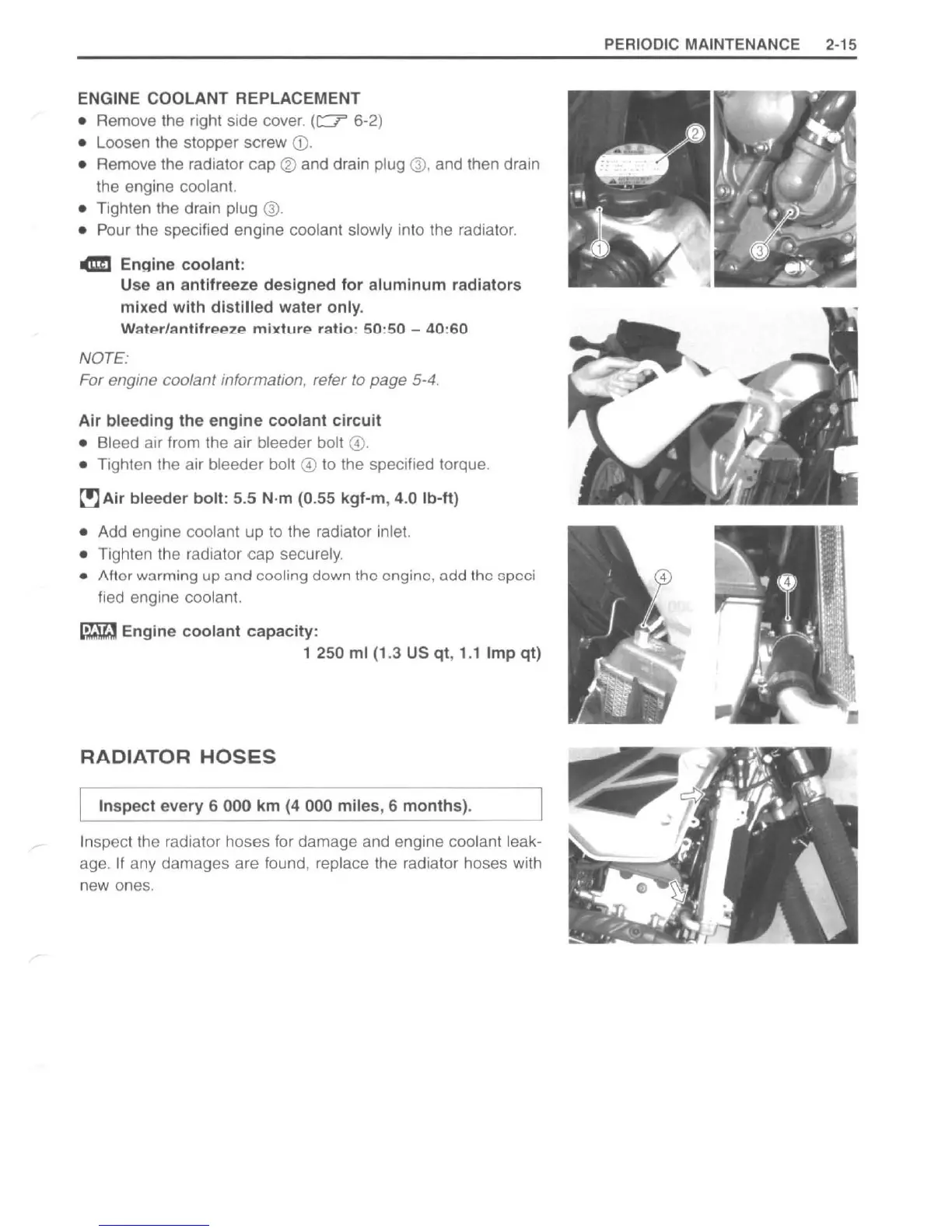

ENGINE COOLANT REPLACEMENT
• Remove the right side cover. (c:::7' 6-2)
• Loosen the stopper screw (j).
• Remove Ihe radiator cap ® and drain plug @, and then drain
the engine coolant.
• Tighten the drain plug @.
• Pour the specified engine coolant slowly into the radiator.
G En!line coolant:
Use an antifreeze designed for aluminum radiators
mixed with distilled water only.
Wat"r/antifr"""" mil<lur" ratio: 50:50 - 40:60
NOTE:
For engine coolant information, refer to page 5-4.
Air bleeding the engine coolant circuit
• Bleed air from the air bleeder bolt @.
• Tighten the air bleeder bolt @ to the specified torque.
~Air bleeder bolt : 5.5 N·m (0.55 kgf-m , 4.0 Ib-ft)
• Add engine coolant up to the radiator inlet.
• Tighten the radiator cap securely.
• After worming up and cooling down the engine, add tho apcci
fied engine coolant.
_ Engine coolant capacity:
1250 ml (1.3 US qt , 1.1 Imp qt)
RADIATOR HOSES
Inspect every 6 000 km (4000 miles , 6 months) .
Inspect the radiator hoses for damage and engine coolant leak-
age. If any damages are found, replace the radiator hoses with
new ones.
PERIODIC MAINTENANCE 2-15
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
