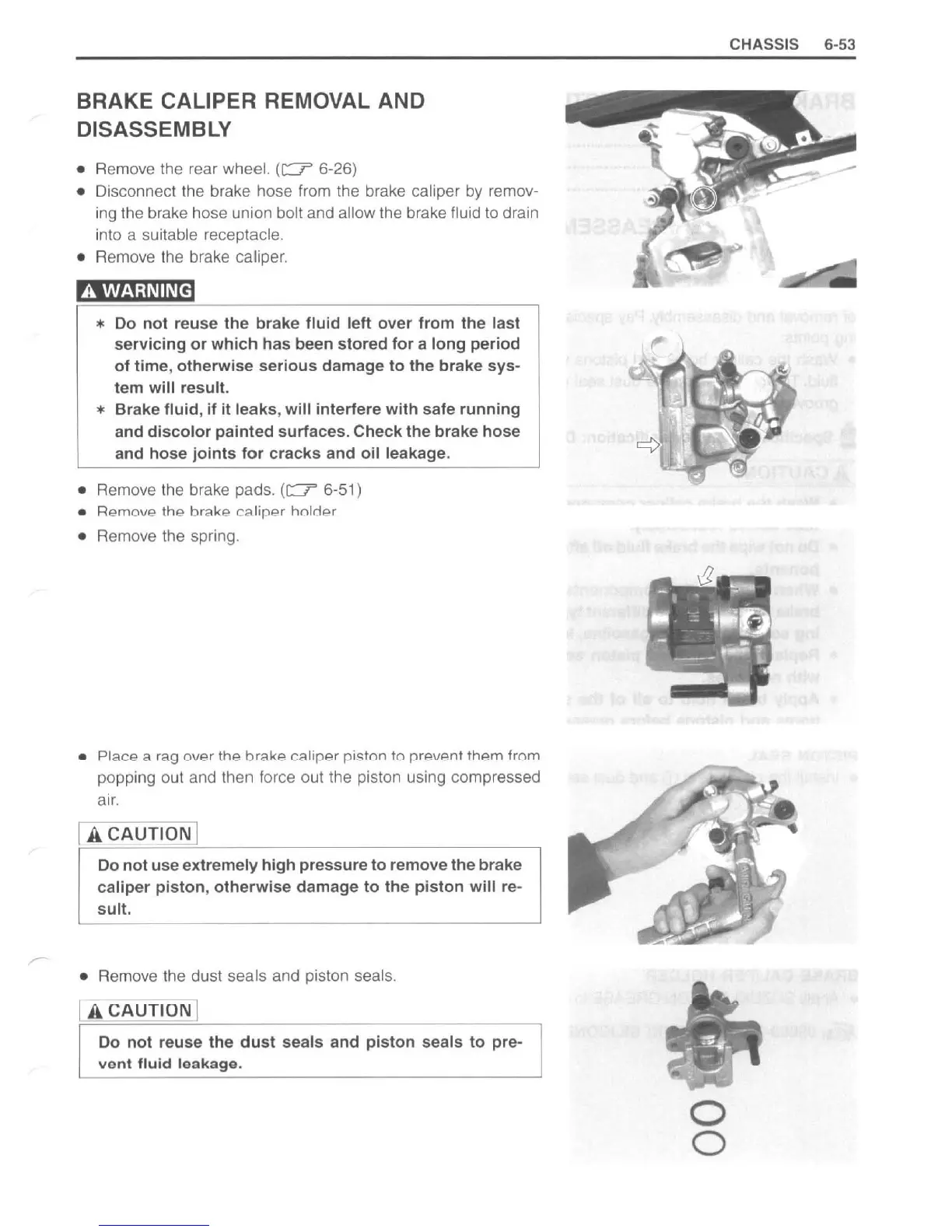

BRAKE CALIPER REMOVAL AND
DISASSEMBLY
• Remove the rear wheel. (c:7' 6-26)
• Disconnect the brake hose from the brake caliper by remov-
ing the brake hose union bolt and allow the brake fluid to drain
into a
suitable receptacle.
• Remove the brake caliper.
A WARNING
* Do not reuse the brake fluid left over from the last
servicing or which has been stored for a long period
of time , otherwise serious damage to the brake sys-
tem will result.
* Brake fluid , if it leaks, will interfere with safe running
and discolor painted surfaces . Check the brake hose
and hose
joints for cracks and oil leakage.
• Remove the brake pads. (c:7' 6·51)
• R emove the brake caliper holder
• Remove the spring.
• Place a r ag over the brake caliper pistnn tn pn::~vent them frnm
popping out and then force out the piston using compressed
air.
I A CAUTIOrll]
Do not use extremely high pressure to remove the brake
caliper piston , otherwise damage to the piston will re-
sult.
• Remove th e dust seals and piston seals.
I ACAUTION !
Do not reuse the dust seals and piston seals to pre-
vent fluid le a kage.
o
o
CHASSIS 6- 53
