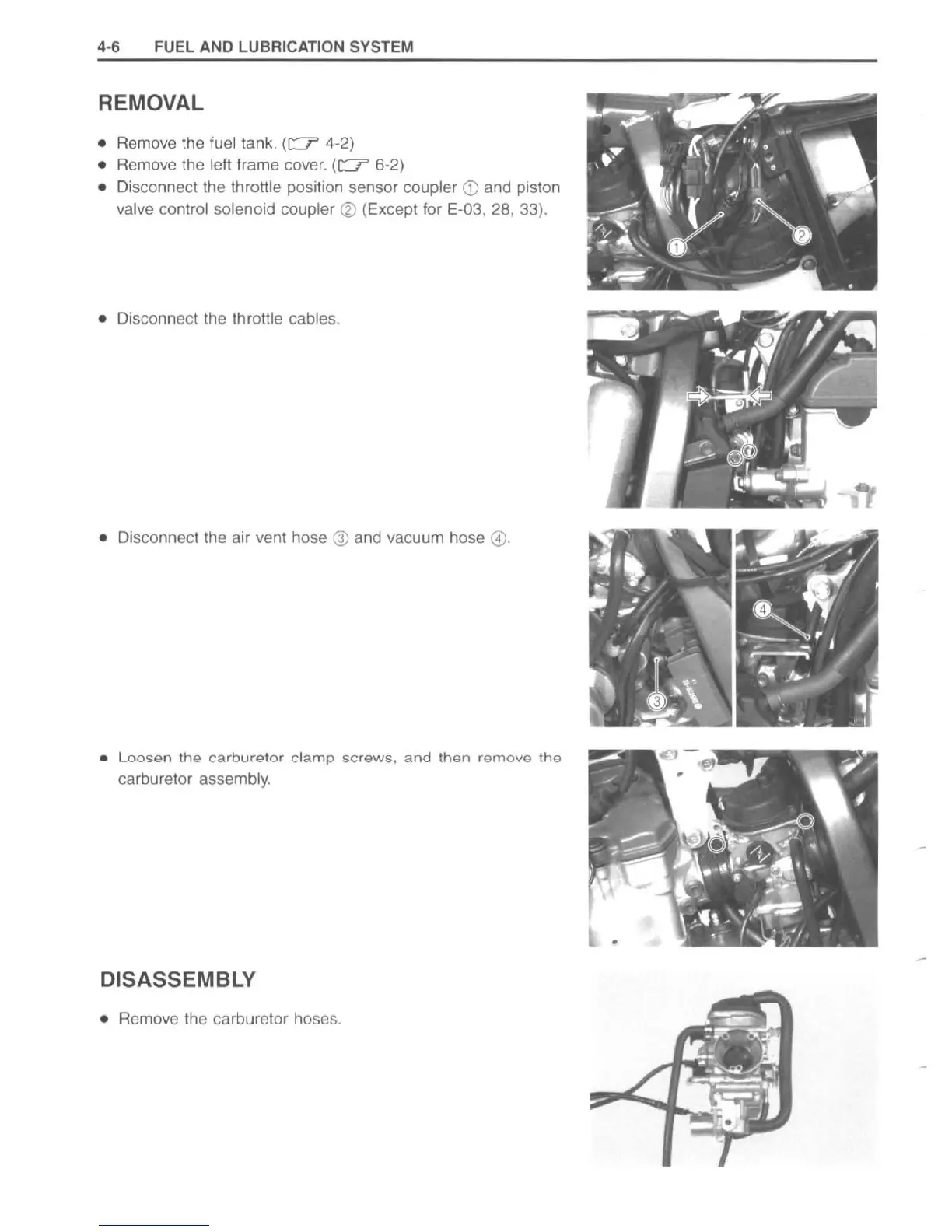

4-6 FUEL AND LUBRICATION SYSTEM
REMOVAL
• Remove the fuel tank. (c::7' 4-2)
• Remove the left frame cover. (c::7' 6-2)
• Disconnect the throttle position sensor coupler CD and piston
valve control solenoid coupler
® (Except for E-03, 28, 33).
• Disconnect the throttle cables.
• Disconnect the air vent hose 0) and vacuum hose @.
• Loosen the carburetor clamp screws , and thc;m remove the
carburetor assembly.
DISASSEMBLY
• Remove the carburetor hoses.
http://www.motorcycle.in.th

Suzuki drz 400 2007 Specifications

General

Year	2007
Manufacturer	Suzuki
Model	DR-Z400
Category	Dual-sport
Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Fuel System	Mikuni BSR36 carburetor
Ignition	CDI
Rear Suspension	Link type, coil spring, oil damped
Ground Clearance	300 mm
Wheelbase	1, 485 mm
Fuel Capacity	10.0 L (2.6 US gal)
Engine Type	Single-cylinder, four-stroke
