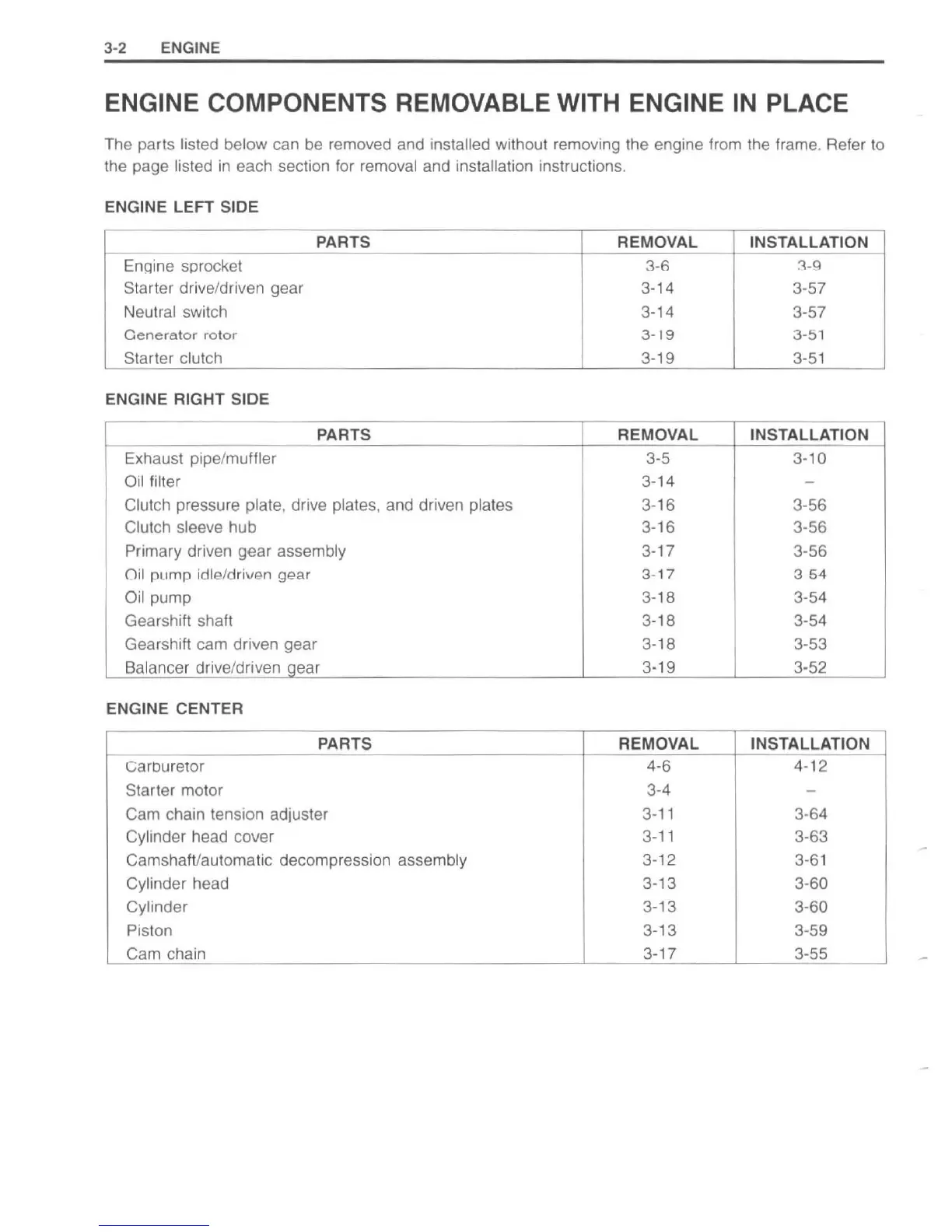

3-2 ENGINE
ENGINE COMPONENTS REMOVABLE WITH ENGINE IN PLACE
The paris lisled below can be removed and installed wilhoul removing the engine from the frame. Refer to
the page listed in each section for removal and installation instructions.
ENGINE LEFT SIDE
PARTS REMOVAL INSTALLATION
Enqine sprocket
3-6
1-Q
Starter drive/driven gear
3-14
3-57
Neutral switch
3-14 3-57
Cenerator rotor 3-19 3-51
Starter clutch 3-19 3-51
ENGINE RIGHT SIDE
PARTS REMOVAL INSTALLATION
Exhaust pipe/muffler 3-5 3-10
Oil
filter
3-14
-
Clutch pressure plate, drive plates, and driven plates 3-16 3-56
Clutch sleeve hub 3-16 3-56
Primary driven gear assembly 3-17 3-56
Oil rump idl" /driv,,n g"ar
3- 17 3 54
Oil pump
3-18 3-54
Gearshift shaft 3-18 3-54
Gearshift cam driven gear
3-18
3-53
Balancer drive/driven gear 3-19 3-52
ENGINE CENTER
PARTS
REMOVAL
INSTALLATION
Carburetor 4-6
4-12
Starter motor 3-4
-
Cam chain tension adjuster
3-11 3-64
Cylinder head cover
3-11 3-63
Camshaft/automatic decompression assembly 3-12 3-61
Cylinder head
3-13
3-60
Cylinder
3-13
3-60
Piston 3-13 3-59
Cam chain
3-17 3-55
