Differential: 3B-6

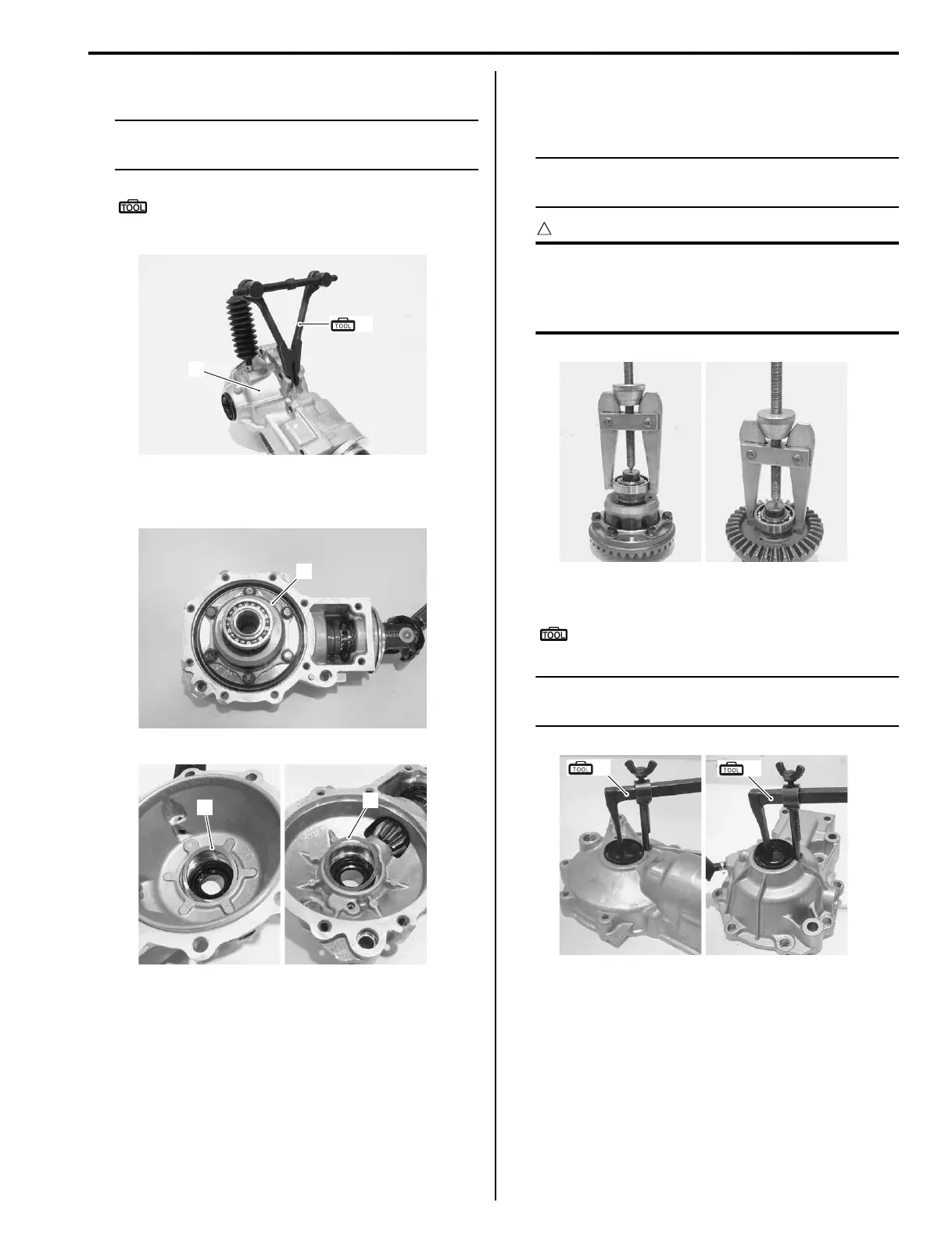

2) Remove the front drive (differential) case cover (1).
NOTE
Use the special tool to remove the cover from
housing if necessary.
Special tool
(A): 09912–34510 (Cylinder disassembling
tool)
3) Remove the front differential gear assembly (2) and
shims (3).
4) Remove the bearings from the front differential gear
assembly with a commercially available bearing
puller.
NOTE
If there is no abnormal condition, the bearing
removal is not necessary.
CAUTION
!
Do not attempt to disassemble the front
differential gear assembly. The front
differential gear is available only as an
assembly.
5) Remove the oil seals with the special tool.
Special tool
(B): 09913–50121 (Oil seal remover)
NOTE
If there is no abnormal condition, the oil seal
removal is not necessary.
(A)
1
I827H1320010-01
2
I827H1320011-01
3
3
I827H1320012-01
I827H1320013-01
(B)
(B)
I827H1320014-01
