Suzuki LT-F400F Service Manual

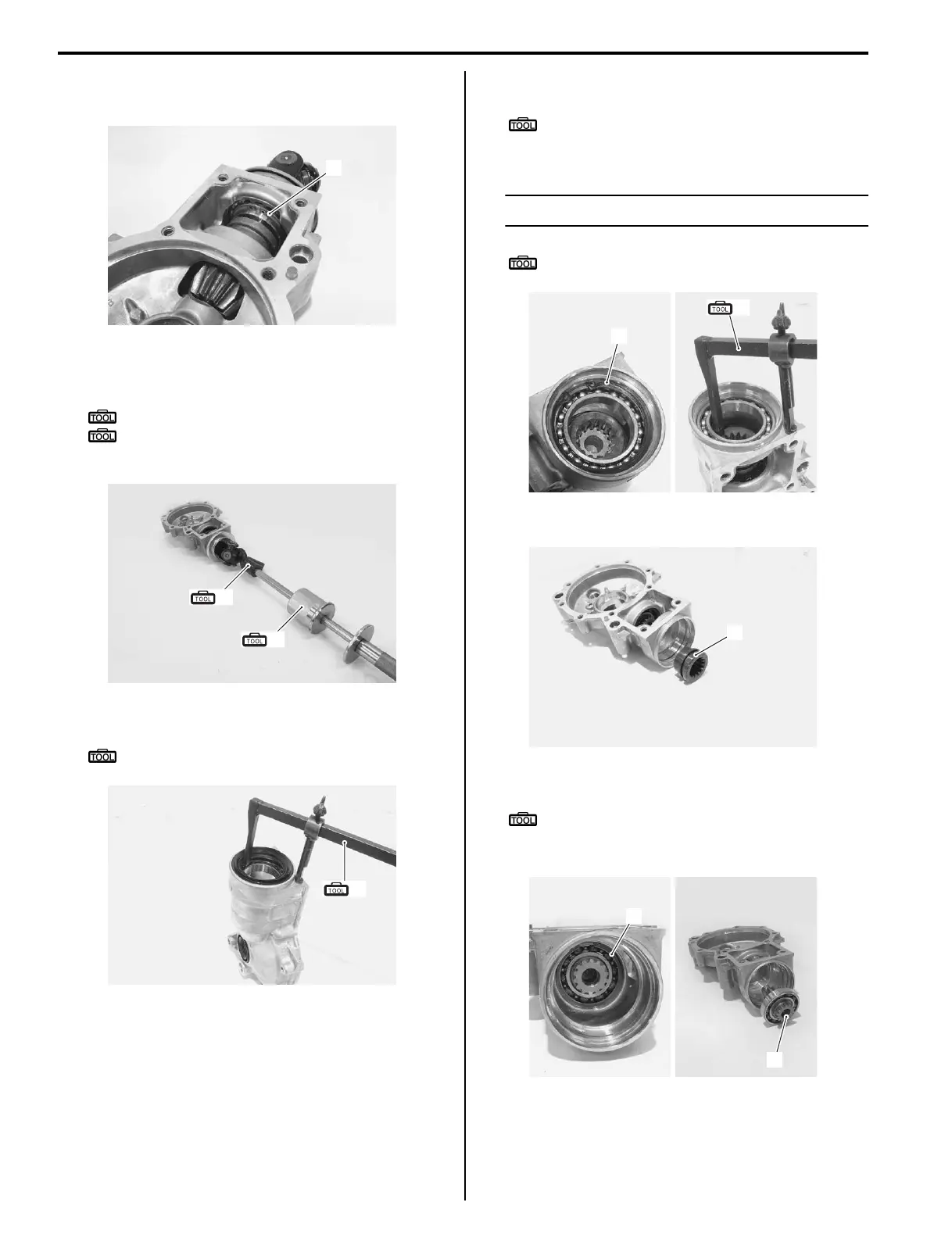

3B-7 Differential:
6) Remove the snap ring (4) out of its groove and slide
it towards the shifting sleeve.
7) Remove the oil universal joint yoke assembly with
the special tools.
Special tool
(C): 09924–21920 (Wheel hub remover)
(D): 09930–30104 (Rotor remover slide
shaft)
8) Remove the oil seal with the special tool.
Special tool
(B): 09913–50121 (Oil seal remover)
9) Remove the snap ring (5).
Special tool
: 09900–06108 (Snap ring pliers)
10) Remove the bearing.
NOTE
Use the special tool if necessary.
Special tool
(B): 09913–50121 (Oil seal remover)
11) Remove shifting sleeve (6).
12) Remove the snap ring (7).
Special tool
: 09900–06108 (Snap ring pliers)
13) Remove pinion gear (8) together with the bearing.
4
I827H1320015-01
(C)
(D)
I827H1320016-01
(B)
I827H1320017-01
5
(B)
I827H1320018-01
6
I827H1320019-01
7
8
I827H1320020-01
