3B-11 Differential:

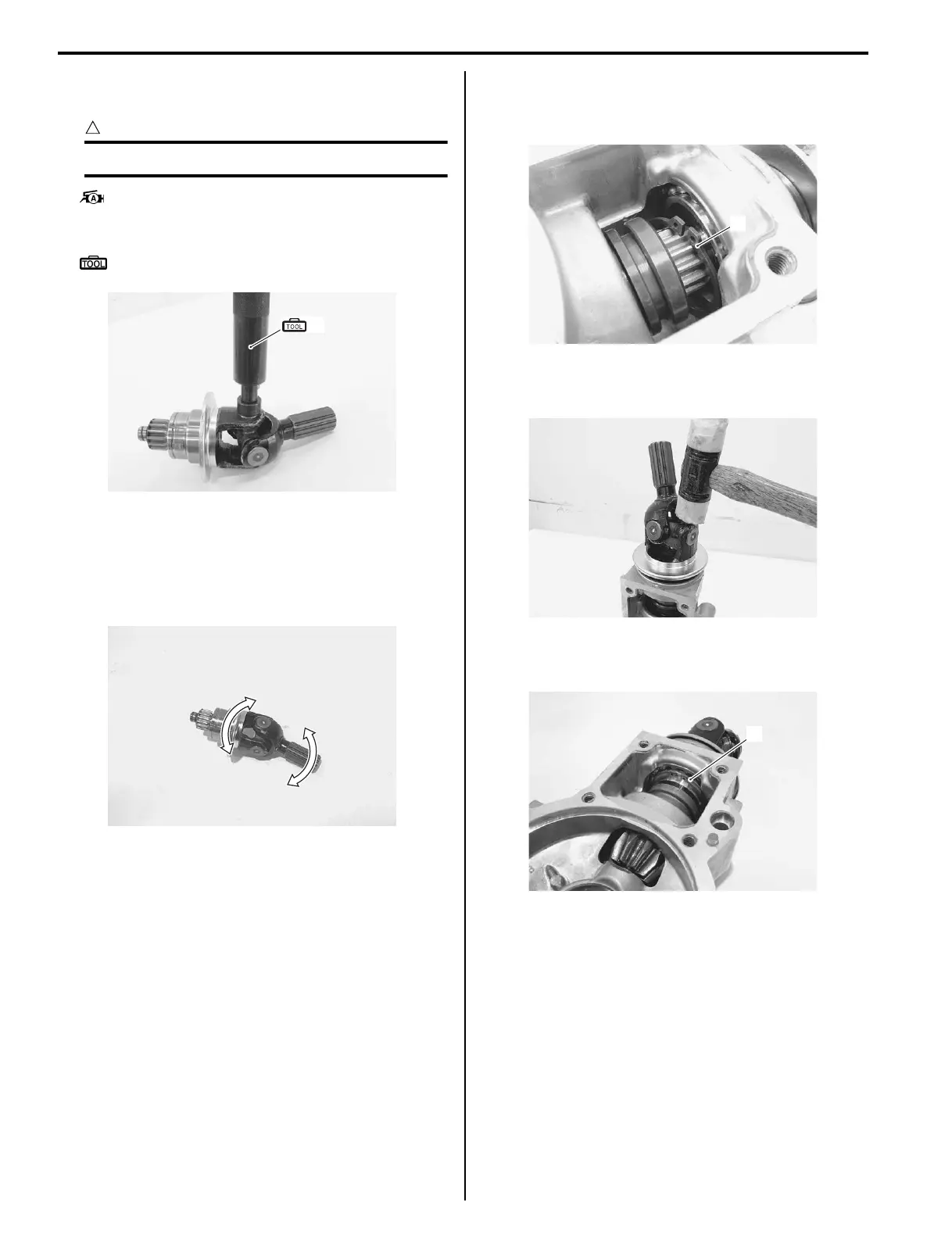

• Install the universal joint and bearings with the special
tool.
CAUTION
!
Replace the removed C-rings with new ones.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the C-rings by tapping them with a copper
hammer.
• After reassembling the universal joint, check the joint
moves smoothly. If a large resistance is felt, tap the
bearing with a plastic mallet lightly.
• Before installing the universal joint yoke assembly,
place the snap ring (4) between the shifting sleeve
and splines of universal joint.
• Install the universal joint yoke assembly by tapping it
with a plastic mallet.
• Fix the universal joint yoke assembly with the snap
ring (4).
(A)
I827H1320034-01
I827H1320035-01
4
I827H1320036-01
I827H1320037-01
4
I827H1320038-02
To Next Page
