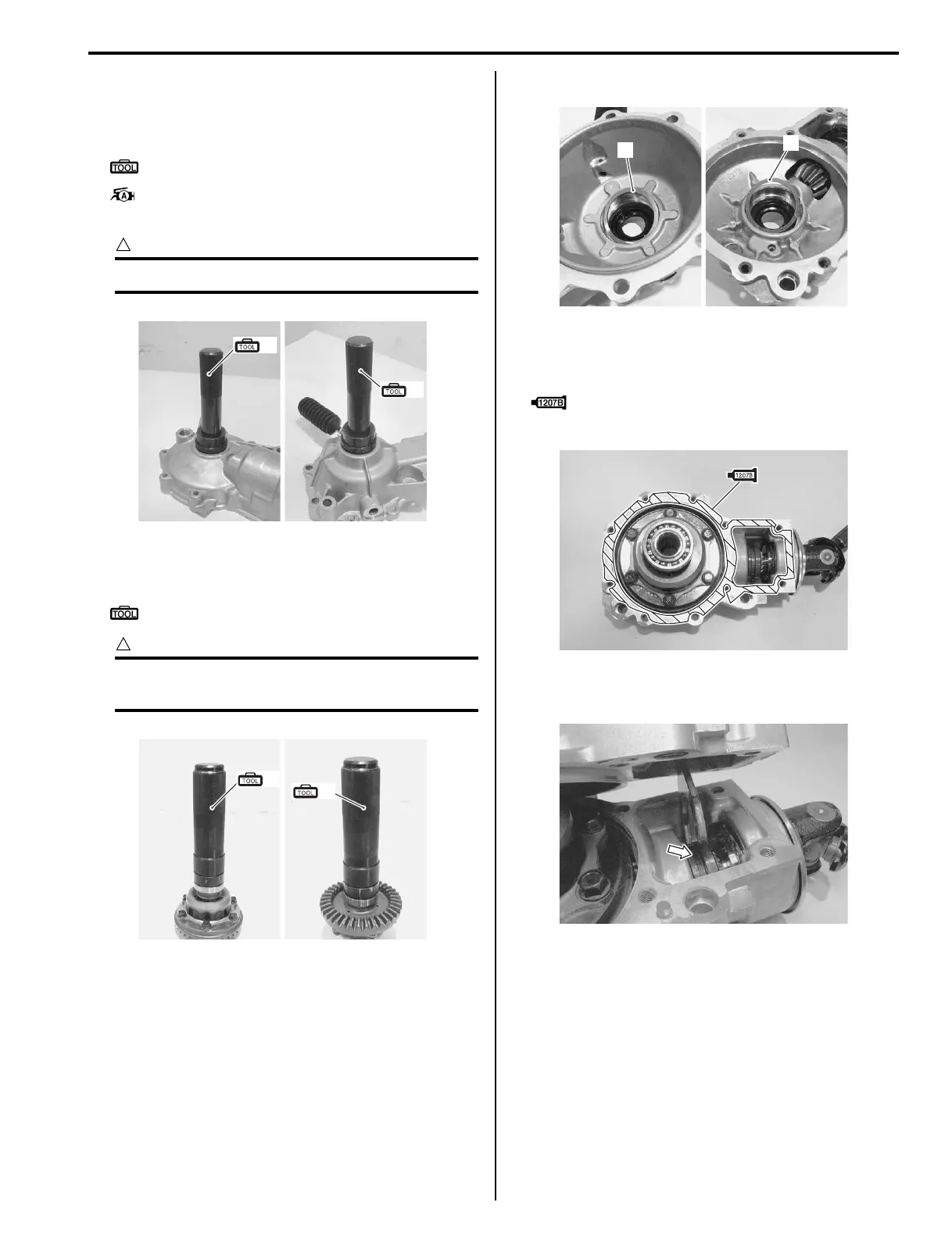

Differential: 3B-12
• Install new oil seals into the gear case and case cover
with the special tool.
• Apply grease to the oil seal lips.
Special tool
(A): 09913–70210 (Bearing installer set)
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
CAUTION
!
Replace the oil seals with new ones.
• Install the bearings to the front deferential gear with
the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
CAUTION
!
The removed bearing must be replace with a
new one.
• Install the shims (5) to the gear case and cover.
• Install the front differential gear assembly to the gear
case.
• Apply bond to the mating surface of the case.
: Sealant 99000–31140 (SUZUKI BOND
No.1207B or equivalent)
• When installing the gear case cover, align the shifting
fork with its groove.
(A)
(A)
I827H1320039-01
(A)
(A)
I827H1320040-01
5
5
I827H1320041-02
I827H1320042-01
I827H1320043-01
