6·3
ELECTRICAL
SYSTEM
INSPECTION

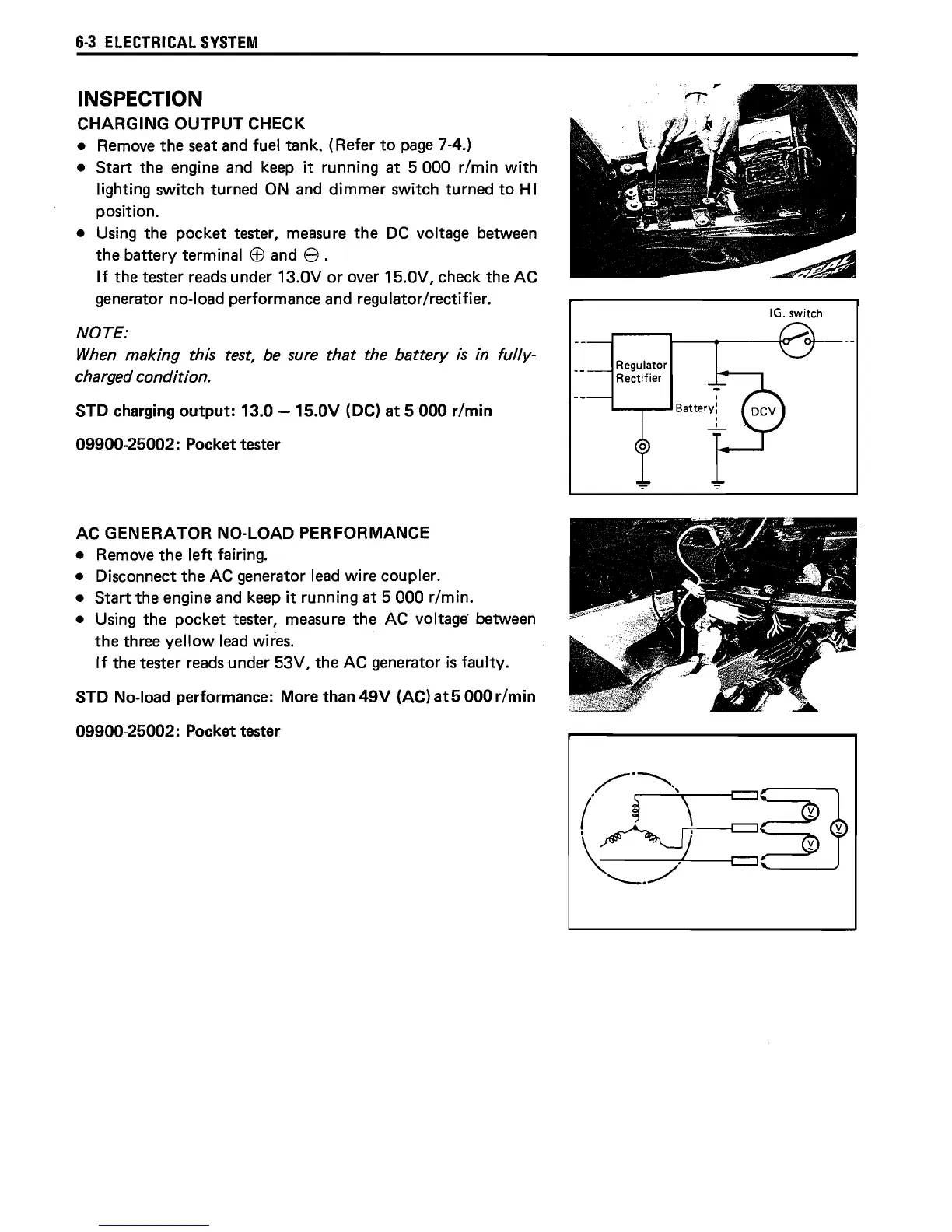

CHARGING OUTPUT CHECK
•
Remove
the
seat
and
fuel tank. (Refer
to
page
7·4.)
• Start the engine
and
keep
it
running at
5000
r/min
with
lighting switch turned
ON
and dimmer switch turned
to
HI
position.
• Using the pocket tester, measure the
DC
voltage between
the battery terminal
Et!
and e .
I f the tester
reads
under 13.0V
or
over 15.0V, check the AC
generator no·load performance and regulator/rectifier.
NOTE:
When
making this test, be sure that the battery
is
in
fully·
charged condition.
STD charging
output:
13.0 - 15.0V (DC)
at
5 000
r/min
09900·25002: Pocket tester
AC
GENERATOR NO·LOAD PERFORMANCE
• Remove the
left
fairing.
• Disconnect the AC generator lead wire coupler.
• Start the engine
and
keep
it
running
at
5 000 r/min.
• Using the pocket tester, measure the AC voltage· between
the three
yellow
lead
wires.
If
the tester
reads
under 53V, the AC generator
is
faulty.
STD No·load performance: More than
49V
(AC)
at
5000
r/min
09900·25002: Pocket tester
Regulator
Rectifier
IG. switch
