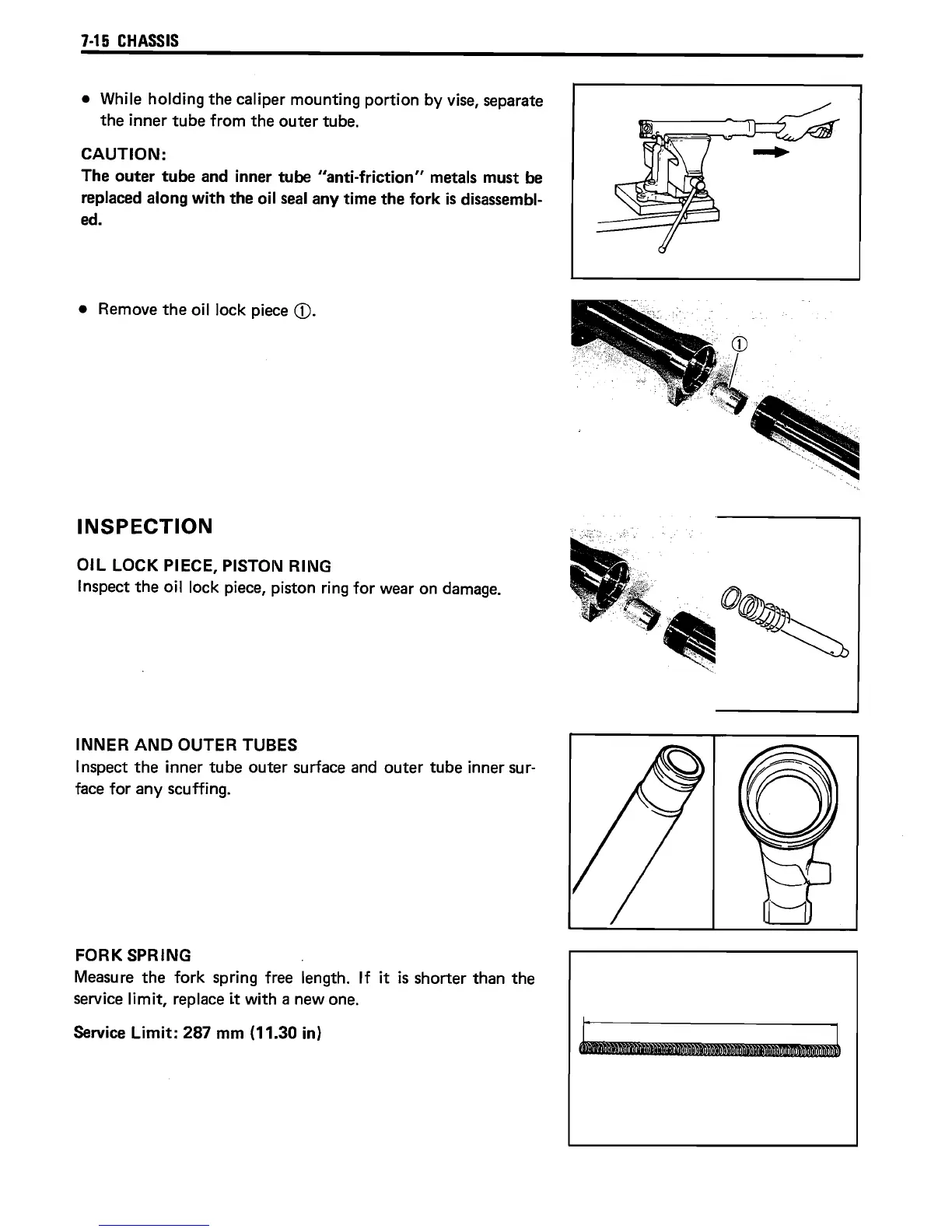

7·15
CHASSIS
• While holding
the
caliper mounting portion by vise, separate
the
inner
tube
from
the
outer tube.
CAUTION:
The
outer
tube
and inner
tube
"anti·friction" metals must be
replaced along with
the
oil seal any time
the
fork
is
disassembl·
ed.
• Remove
the
oil lock piece
CD.
INSPECTION
OIL
LOCK PIECE, PISTON RING
Inspect
the
oil lock piece, piston ring for wear on damage.
INNER
AND
OUTER TUBES
I nspect
the
inner
tube
outer surface and
outer
tube inner sur-
face for
any
scuffing.
FORK SPRING
Measure
the
fork spring free length.
If
it
is
shorter than
the
service limit, replace it with a new one.
Service Limit: 287 mm (11.30 in)
