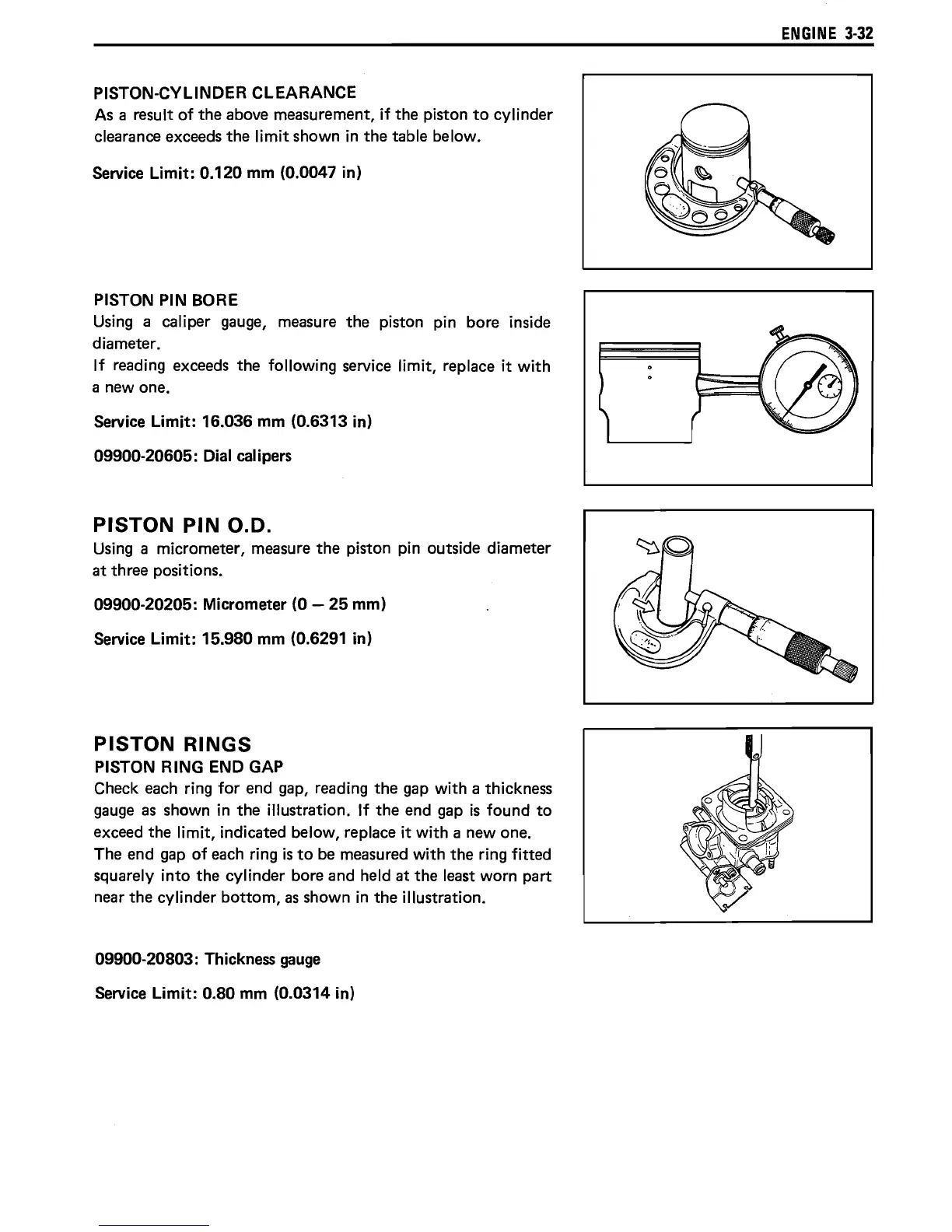

PISTON-CYLINDER
CLEARANCE
As
a result
of
the
above measurement, if
the
piston
to
cylinder
clearance exceeds
the
limit shown
in
the
table below.
Service
Limit:
0.120 mm (0.0047 in)
PISTON PIN BORE
Using a caliper gauge, measure
the
piston pin bore inside
diameter.
If
reading exceeds
the
following service limit, replace it with
a new one.
Service
Limit:
16.036 mm (0.6313 in)
09900-20605: Dial calipers
PISTON
PIN
0.0.
Using a micrometer, measure
the
piston pin outside diameter
at
three positions.
09900-20205: Micrometer (0 - 25 mm)
Service
Limit:
15.980 mm (0.6291 in)
PISTON
RINGS
PISTON RING END GAP
Check each ring
for
end gap, reading
the
gap with a thickness
gauge as shown
in
the
illustration. If
the
end gap
is
found
to
exceed
the
limit, indicated below, replace it with a new one.
The end gap
of
each ring
is
to
be measured with
the
ring fitted
squarely into
the
cylinder bore and held
at
the
least worn part
near
the
cylinder
bottom,
as
shown
in
the
illustration.
09900-20803: Thickness
gauge
Service
Limit:
0.80 mm (0.0314 in)
ENGINE
3-32
