6-17 ELECTRICAL SYSTEM

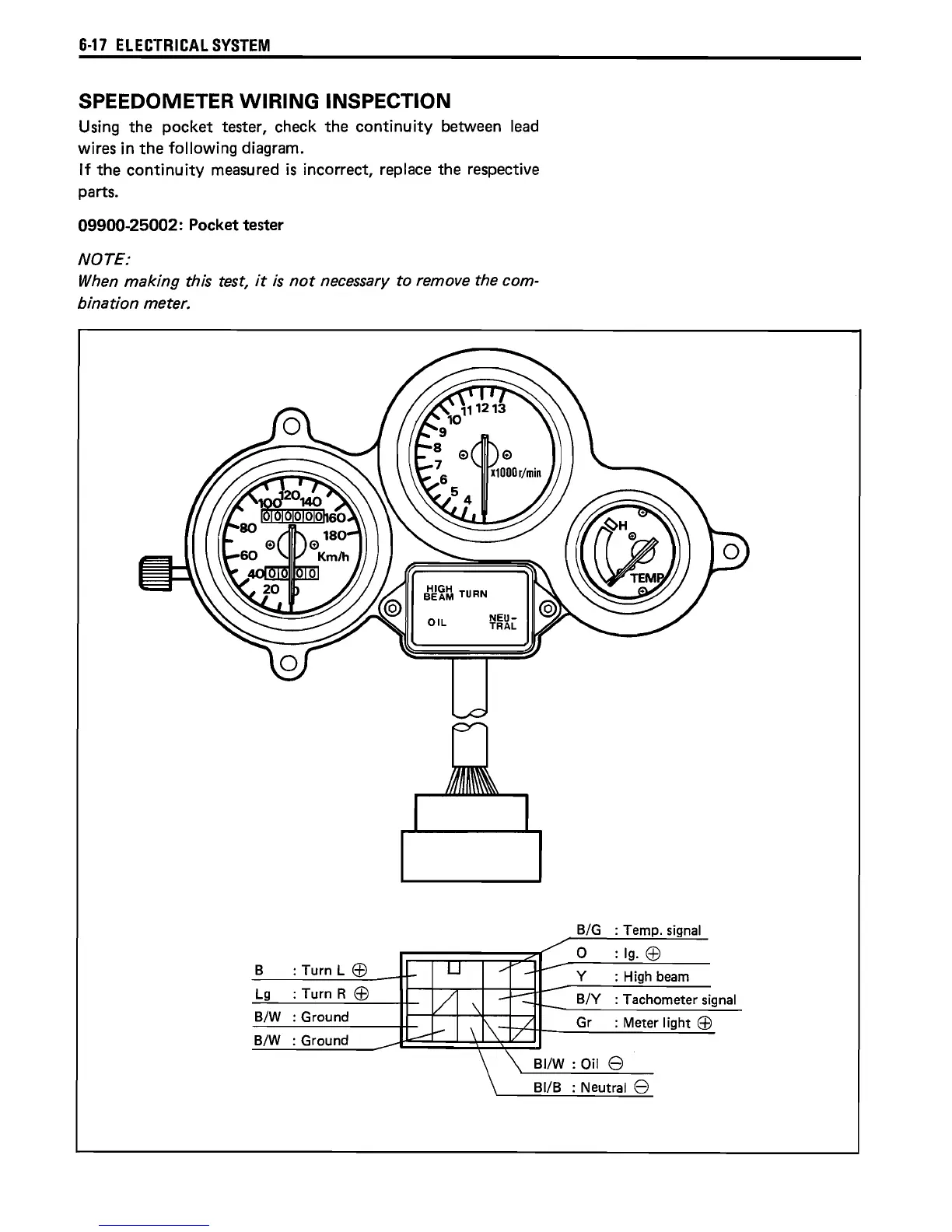

SPEEDOMETER WIRING INSPECTION
Using the pocket tester, check the continuity between lead
wires in
the following diagram.
If
the continuity measured is incorrect, replace the respective
parts.
09900-25002: Pocket tester
NOTE:
When making this test, it is not necessary to remove the com-
bination meter.
B : Turn L EB
I-
U
;'
-
Lg
: Turn R EB
1/
\
-
1--:::,
B/W
: Ground
1\-
-.2
B/W : Ground
.-
~
\ 1/
B/G . Temp signal
0
: Ig. EB
V-
Y : High beam
f--
BIY
: Tachometer signal
Gr : Meter light
EB
\\
BI/W : Oil e
BI/B : Neutral e
