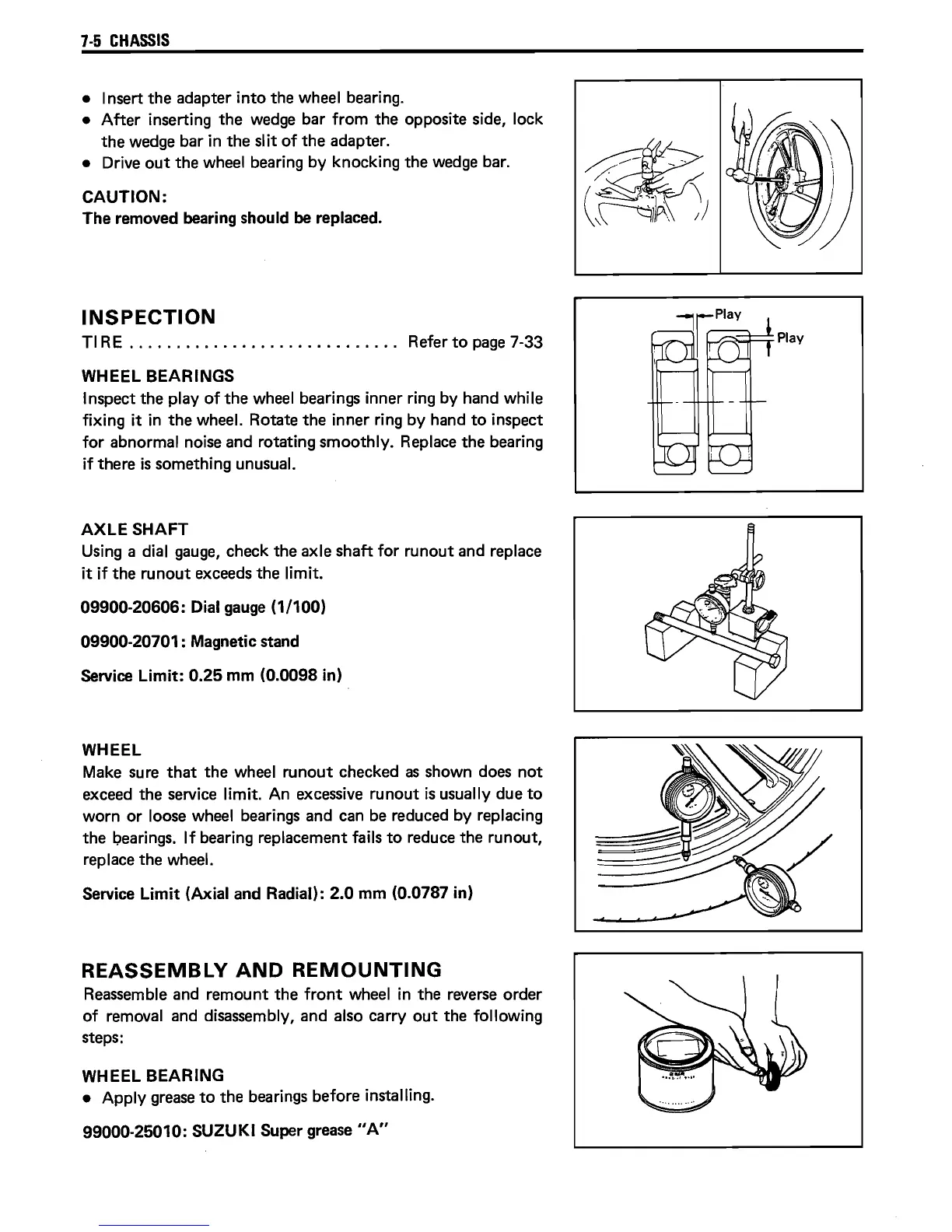

7-5
CHASSIS
• Insert the adapter
into
the wheel bearing.
•
After
inserting the
wedge
bar
from
the opposite side, lock
the wedge bar in the slit
of
the adapter.
• Drive
out
the wheel bearing
by
knocking the
wedge
bar.
CAUTION:
The removed bearing should be replaced.
INSPECTION
TI
RE
......................
_
......
Refer
to
page
7-33
WHEEL BEARINGS
Inspect the play
of
the wheel bearings inner ring
by
hand while
fixing
it
in the wheel. Rotate the inner ring
by
hand
to
inspect
for
abnormal noise and rotating smoothly.
Replace
the bearing
if
there
is
something unusual.
AXLE
SHAFT
Using a dial
gauge,
check the axle shaft
for
runout and replace
it if
the runout
exceeds
the
limit.
09900-20606: Dial
gauge
(1/100)
09900-20701 : Magnetic stand
Service
Limit:
0.25
mm
(0.0098 in)
WHEEL
Make
sure
that
the wheel
runout
checked
as
shown
does
not
exceed the service
limit.
An excessive runout
is
usually due
to
worn
or
loose wheel bearings and
can
be
reduced by replacing
the
Qearings.
If
bearing replacement fails
to
reduce the runout,
replace the wheel.
Service
Limit
(Axial and Radial): 2.0 mm (0.0787 in)
REASSEMBLY
AND
REMOUNTING
Reassemble
and remount the
front
wheel in the
reverse
order
of
removal
and
disassembly, and also carry
out
the following
steps:
WHEEL BEARING
•
Apply
grease
to
the bearings before installing.
99000-25010: SUZUKI Super
grease
HA"
