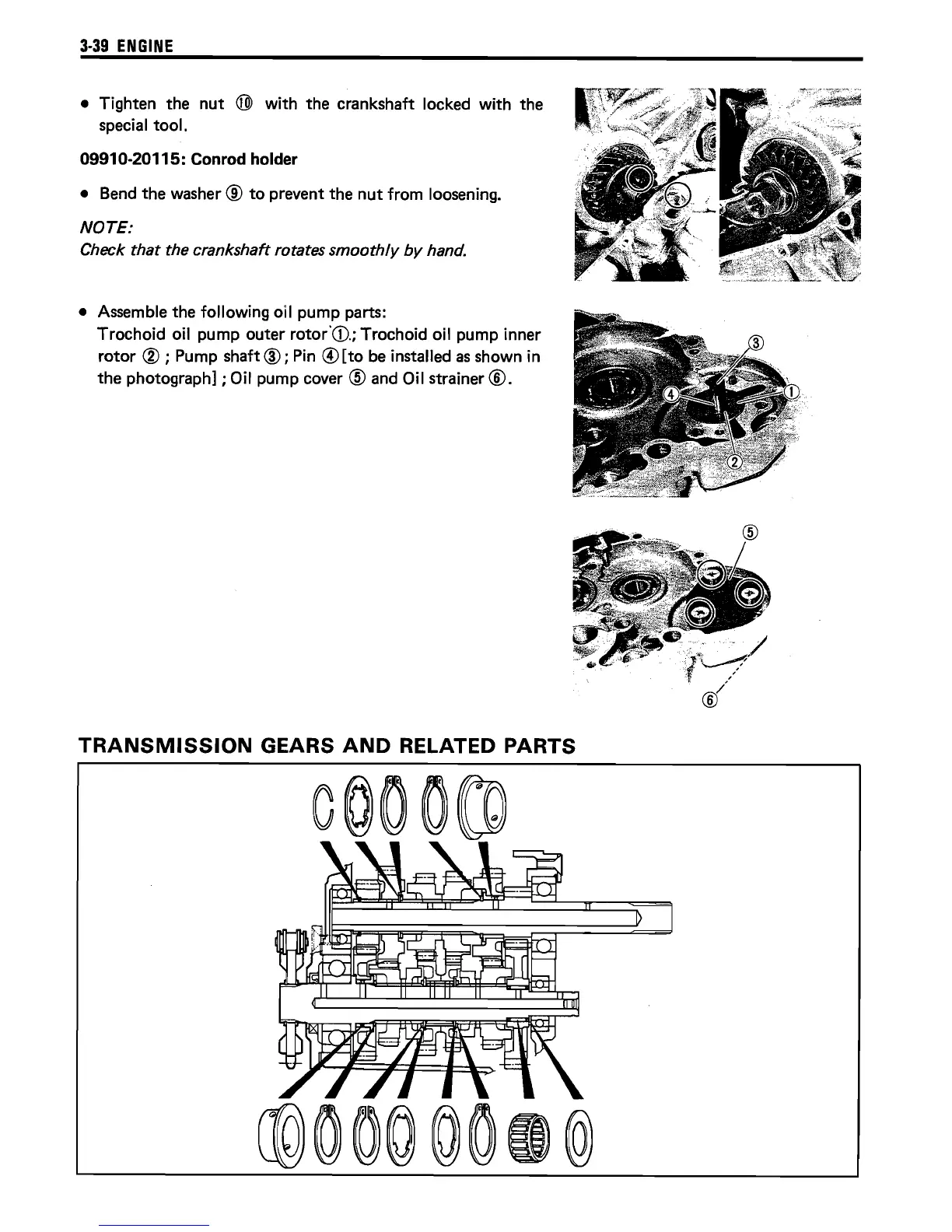

3·39
ENGINE
•
Tighten
the
nut
®
with
the
crankshaft
locked
with
the
special
tool.
09
910-20115:
Conrod
holder
•
Bend
the
washer
®
to
prevent
the
nut
from
loosening.
N
OTE:
C
heck
that
the
crankshaft
rotates
smoothly
by
hand.
•
Assemble
the
following
oil
pump
parts:
Trochoid
oil
pump
outer
rotor'G),;
Trochoid
oil
pump
inner
rotor
®
;
Pump
shaft
@
;
Pin
@
[to
be
installed
as
shown
in
the
photograph]
;
Oil
pump
cover
@
and
Oil
strainer
®.
T
RANSMISSION
GEARS
AND
RELATED
PARTS
71
73
