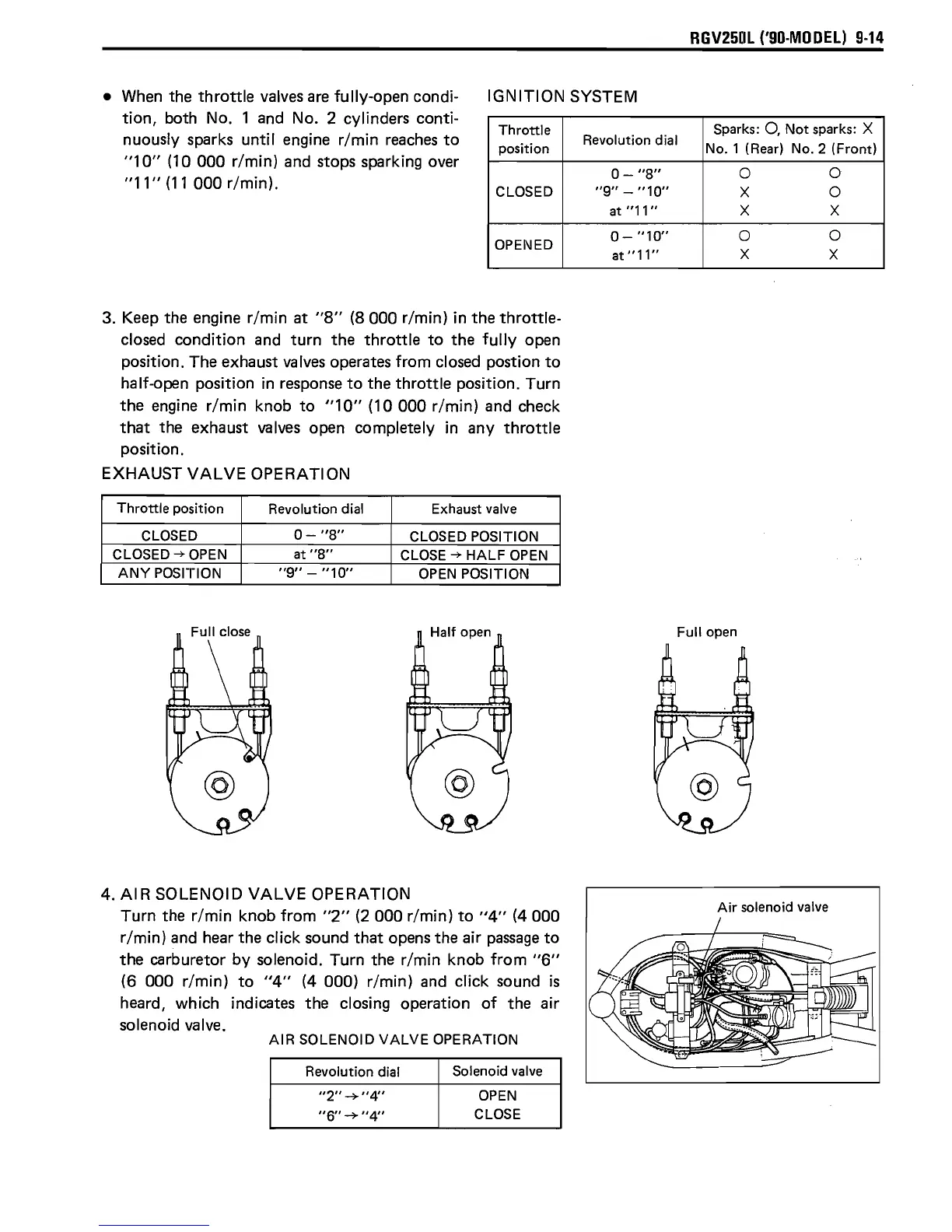

• When the throttle valves are fully-open condi- IGNITION SYSTEM
tion, both No. 1 and No. 2 cylinders conti-
nuously sparks
until engine r/min reaches to
"10" (10 000 r/min) and stops sparking over
Throttle
position
"11" (11 000 r/min).
CLOSED
OPENED
3. Keep the engine r/min at "8" (8000 r/min) in the throttle-
closed condition and turn the throttle to the fully open
position. The exhaust
valves operates from closed postion to
half-open position in response to the throttle position. Turn
the engine
r/min knob to "10" (10 000 r/min) and check
that the exhaust valves open completely in any throttle
position.
EXHAUST VALVE OPERATION
Throttle position
Revolution dial Exhaust valve
CLOSED
0-"8"
CLOSED POSITION
CLOSED
4 OPEN
at
"8"
CLOSE 4 HALF OPEN
ANY POSITION
"9" - 11 1 0"
OPEN POSITION
4. AIR SOLENOID VALVE OPERATION
Turn the
r/min knob from "2" (2000 r/min) to "4" (4000
r/min) and hear the click sound that opens the air passage to
the carburetor by solenoid. Turn the r/min knob from "6"
(6 000 r/min) to "4" (4 000) r/min) and click sound is
heard, which indicates the closing operation of the air
solenoid valve.
AIR SOLENOID VALVE OPERATION
Revolution dial
Solenoid valve
112" ~ "4"
OPEN
"6" ~ "4"
CLOSE
Revolution dial
0-"8"
119
11
- 111 A"
at "11"
0-"10"
at "11"
RGV250L ('90-MODEL) 9-14
Sparks: 0. Not sparks: X
No. 1 (Rear) No.2 (Front)
0
0
X 0
X
X
0
0
X X
Full open
Air solenoid valve
