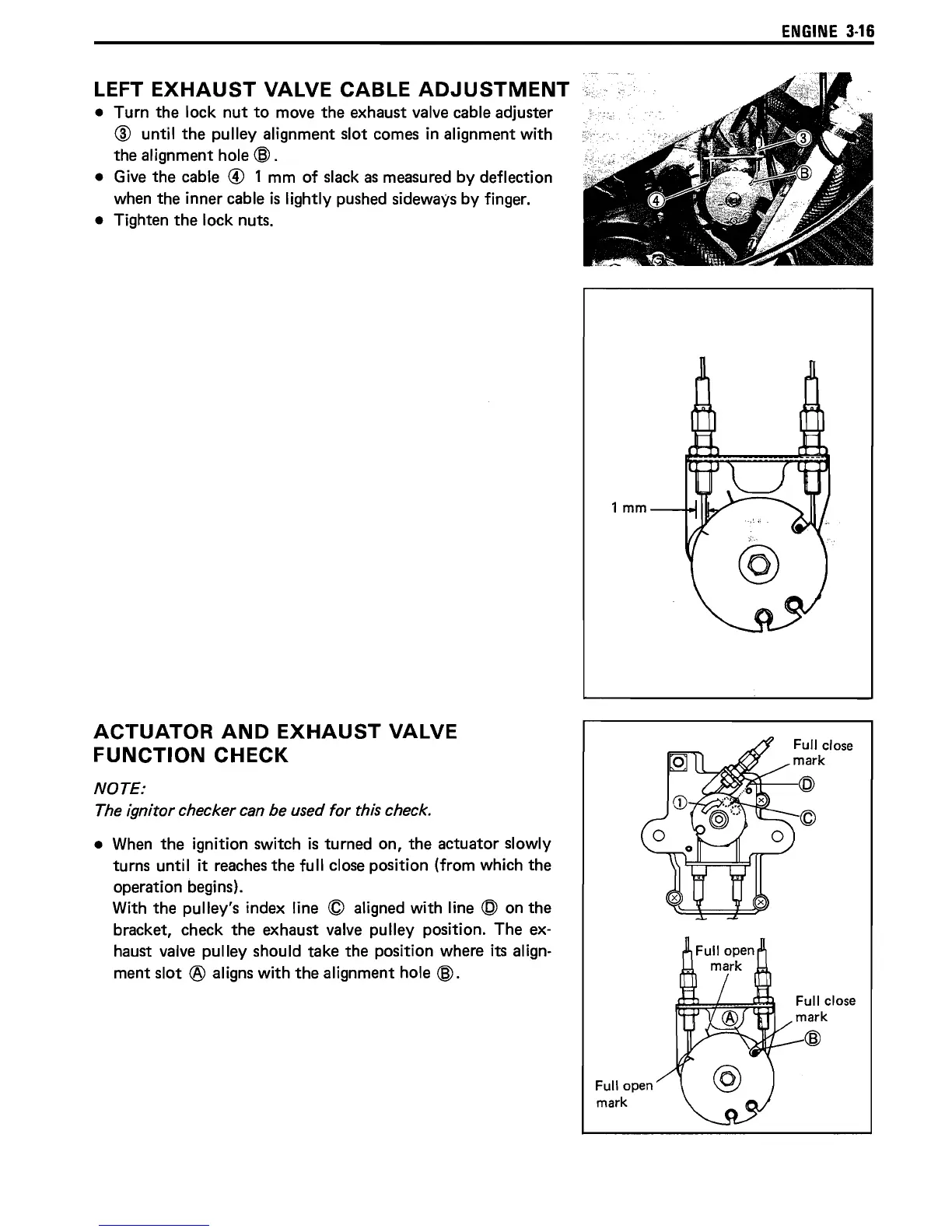

LEFT EXHAUST VALVE CABLE ADJUSTMENT
• Turn the lock nut to move the exhaust valve cable adjuster
@ until the pulley alignment slot comes in alignment with
the alignment hole @ .
• Give the cable @ 1 mm of slack as measured by deflection
when the inner cable
is lightly pushed sideways by finger.
• Tighten the lock nuts.
ACTUATOR AND EXHAUST VALVE
FUNCTION CHECK
NOTE:
The ignitor checker can be used for this check.
• When the ignition switch is turned on, the actuator slowly
turns
until it reaches the full close position (from which the
operation begins).
With the pulley's index line
© aligned with line @ on the
bracket, check the exhaust valve pulley position. The ex·
haust valve pulley should take the position where its align·
ment slot
® aligns with the alignment hole @.
1 mm---+-!
Full open
mark
ENGINE 3·16
Full close
mark
@
