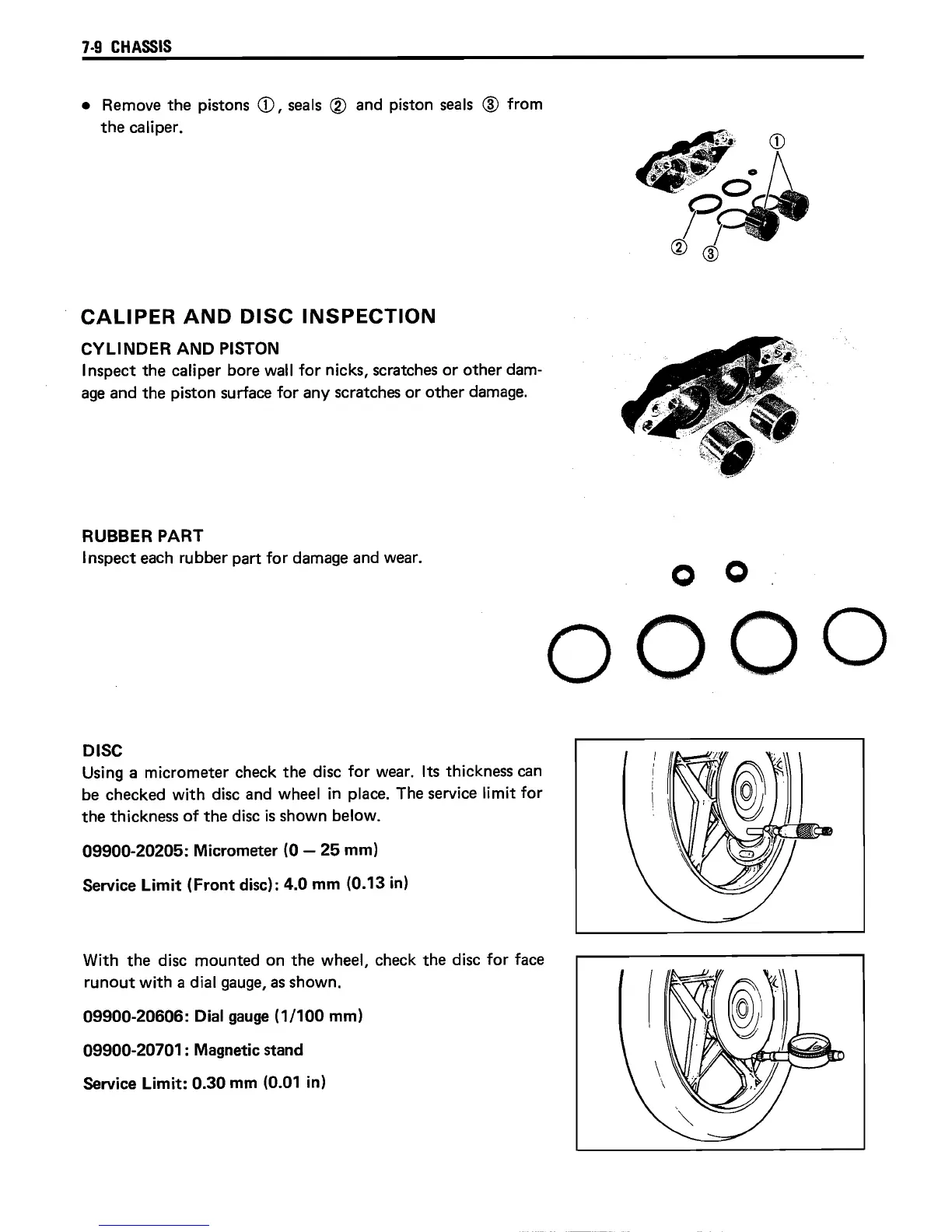

7·9
CHASSIS
• Remove the pistons
CD,
seals
<ID
and piston
seals
@ from
the caliper.
CALlPER
AND
DISC
INSPECTION
CYLINDER
AND
PISTON
Inspect the caliper bore wall
for
nicks, scratches
or
other dam·
age
and the piston surface
for
any scratches
or
other
damage.
RUBBER PART
Inspect
each
rubber part
for
damage
and
wear.
DISC
Using a micrometer check the disc
for
wear. Its thickness
can
be
checked
with
disc
and
wheel in place. The service
limit
for
the thickness
of
the disc
is
shown below.
09900·20205: Micrometer (0 -
25
mm)
Service
Limit
(Front
disc): 4.0
mm
(0.13 in)
With
the disc mounted
on
the wheel, check the disc
for
face
runout
with
a dial
gauge,
as
shown.
09900·20606: Dial
gauge
(1/100 mm)
09900·20701 : Magnetic stand
Service
Limit:
0.30 mm (0.01 in)
o
o
0000
