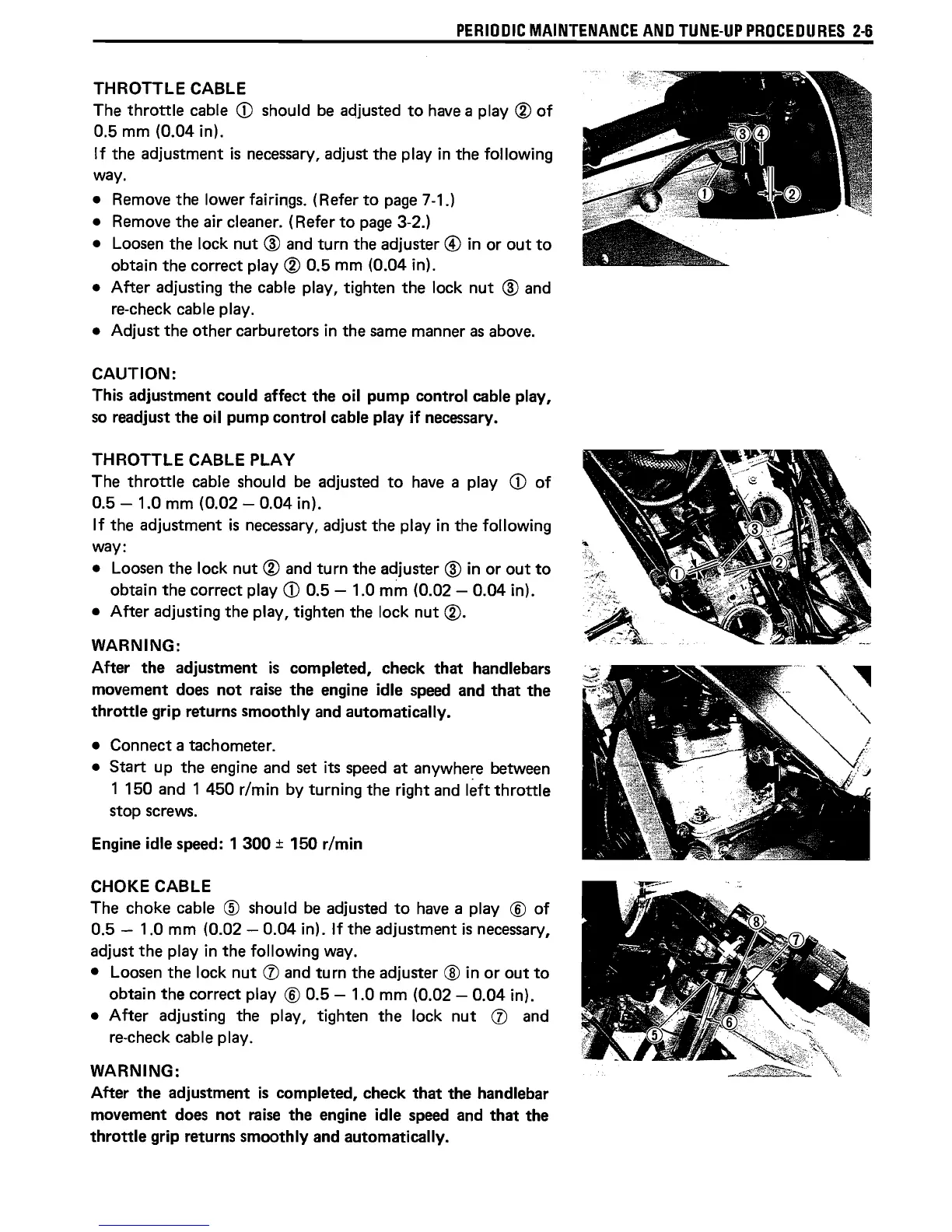

PERIODIC
MAINTENANCE
AND
TUNE·UP
PROCEDURES
2·6
THROTTLE
CABLE
The
throttle
cable
CD
should
be
adjusted
to
have
a play
CID
of
0.5 mm (0.04 in).
If
the adjustment
is
necessary,
adjust the play in the following
way.
• Remove the lower fairings. (Refer
to
page
7·1.)
• Remove the air cleaner. (Refer
to
page
3·2.)
• Loosen the lock
nut
@
and
turn the adjuster @ in or
out
to
obtain the correct play
CID
0.5 mm (0.04 in).
•
After
adjusting the cable play, tighten the lock
nut
@ and
re·check cable play.
• Adjust the other carburetors in the
same
manner
as
above.
CAUTION:
This adjustment could affect the oil pump control cable play,
so
readjust the
oil
pump control cable play
if
necessary.
THROTTLE
CABLE
PLAY
The
throttle
cable should
be
adjusted
to
have
a play
CD
of
0.5 - 1.0 mm (0.02 - 0.04 in).
If
the adjustment
is
necessary,
adjust the play in the following
way:
• Loosen the lock
nut
CID
and turn the adjuster @ in
or
out
to
obtain the correct play
CD
0.5 - 1.0
mm
(0.02 - 0.04 in).
•
After
adjusting the play, tighten the lock
nut
CID.
WARNING:
After
the adjustment
is
completed, check that handlebars
movement
does
not
raise
the engine idle
speed
and
that
the
throttle
grip returns smoothly
and
automatically.
• Connect a tachometer.
• Start up the engine and
set
its
speed
at anywhere between
1 150 and 1 450 r/min
by
turning the right
and
left
throttle
stop
screws.
Engine idle speed: 1 300 ± 150
r/min
CHOKE CABLE
The choke cable
CID
should
be
adjusted
to
have
a play ®
of
0.5 - 1.0 mm (0.02 - 0.04 in).
If
the adjustment
is
necessary,
adjust the play in the following way.
• Loosen the lock
nut
(J)
and
turn the adjuster ® in
or
out
to
obtain the correct play ® 0.5 - 1.0 mm (0.02 - 0.04 in).
•
After
adjusting the play, tighten the lock
nut
(J)
and
re·check cable play.
WARNING:
After
the adjustment
is
completed, check
that
the handlebar
movement
does
not
raise
the engine idle
speed
and
that
the
throttle
grip returns smoothly and automatically.
