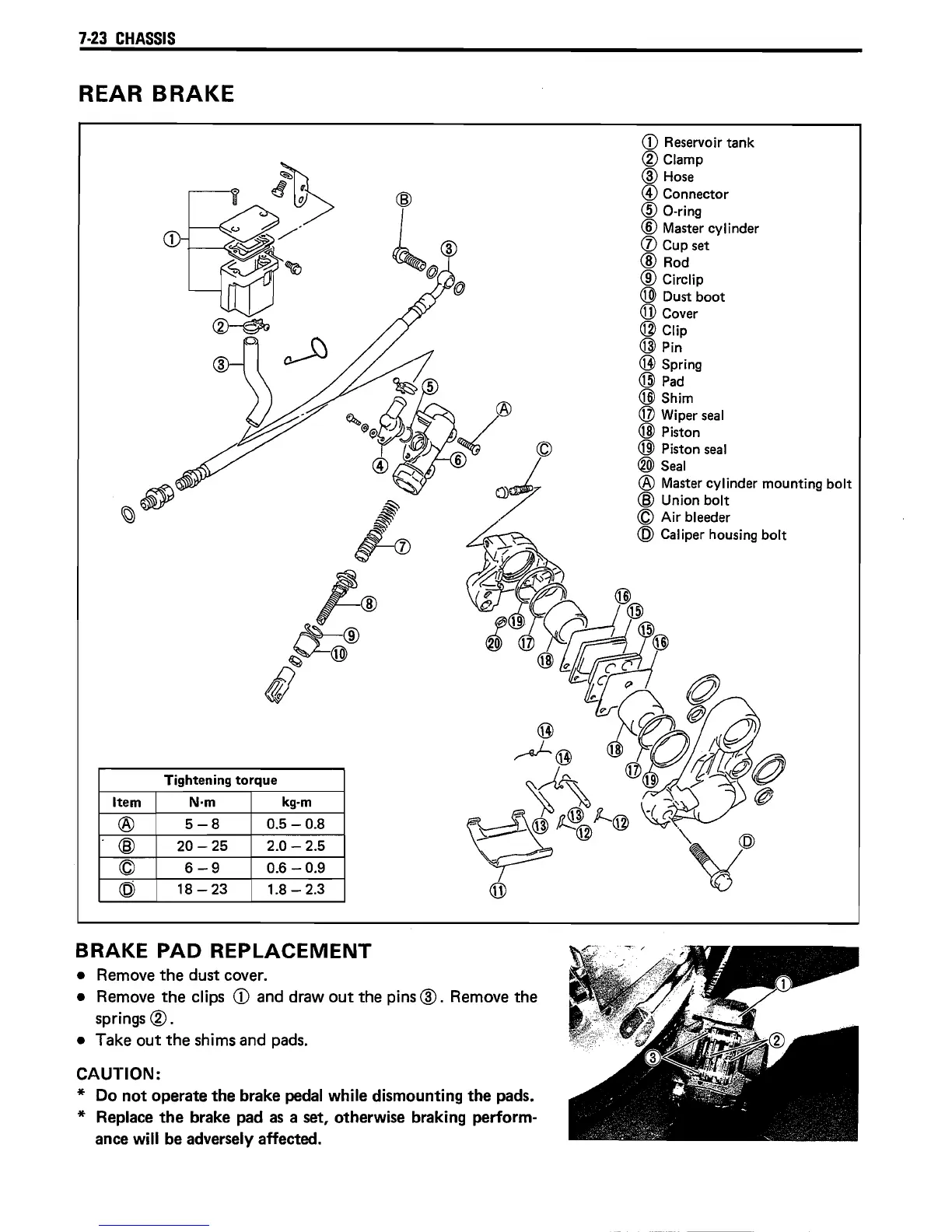

7·23 CHASSIS
REAR BRAKE
CD
@
Tightening torque
Item N·m
kg-m
®
5-8 0.5 - 0.8
@ 20-25 2.0 - 2.5
©
6-9 0.6 - 0.9
@
18 - 23 1.8 - 2.3
BRAKE PAD REPLACEMENT
• Remove the dust cover.
• Remove the clips CD and draw out the pins @. Remove the
springs
CID.
• Take out the shims and pads.
CAUTION:
* Do not operate the brake pedal while dismounting the pads.
* Replace the brake pad as a set, otherwise braking perform·
ance
will be adversely affected.
CD Reservoir tank
CID Clamp
@ Hose
@ Connector
CID O-ring
® Master cylinder
(J) Cup set
® Rod
® Circlip
@ Dust boot
(jJ) Cover
@ Clip
@Pin
@ Spring
@ Pad
@Shim
@ Wiper seal
@ Piston
@) Piston seal
® Seal
® Master cylinder mounting bolt
@ Union bolt
© Air bleeder
@ Caliper housing bolt
