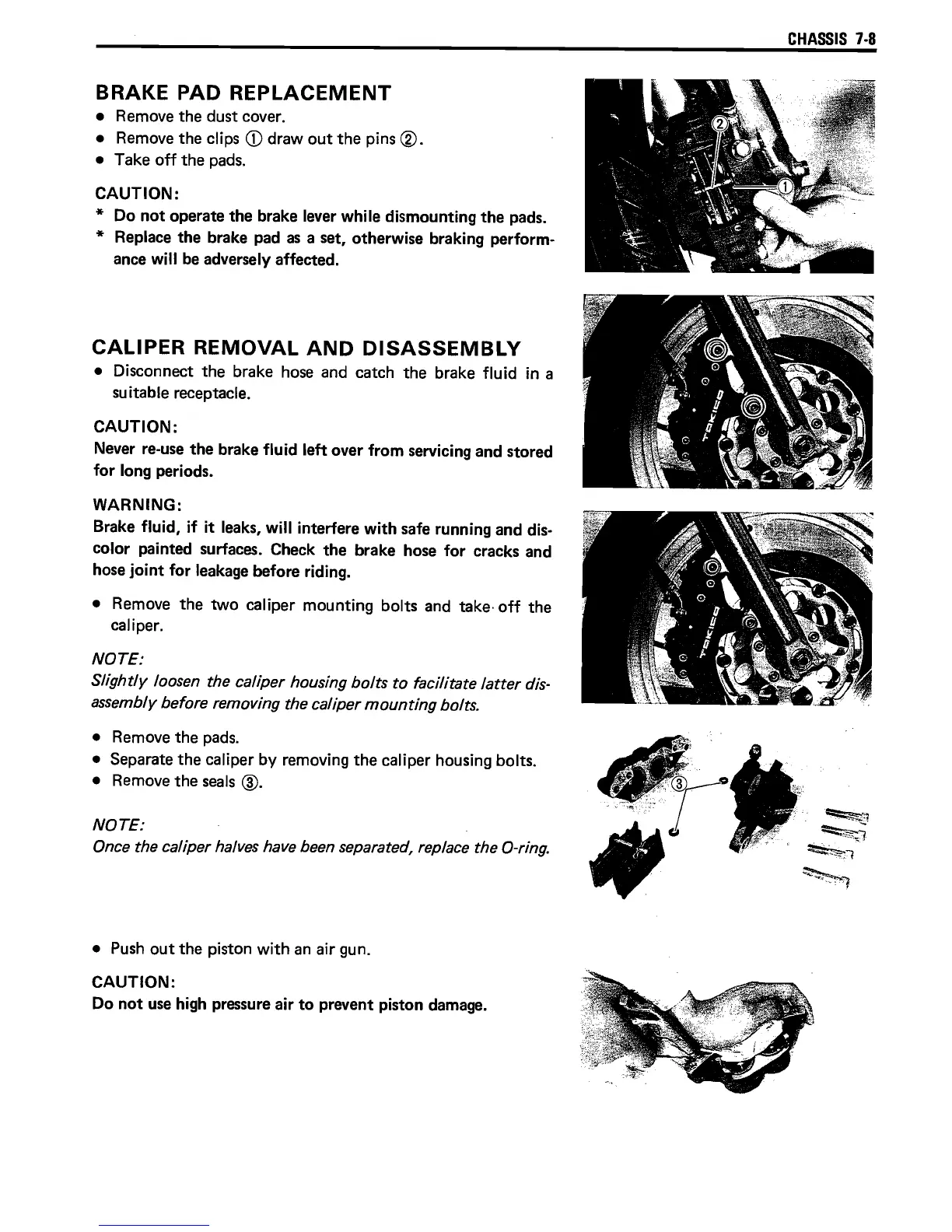

BRAKE PAD REPLACEMENT
• Remove
the
dust cover.
• Remove
the
clips
CD
draw
out
the
pins
CV.
• Take off
the
pads.
CAUTION:
* Do
not
operate
the
brake lever while dismounting
the
pads.
* Replace
the
brake pad
as
a set. otherwise braking perform-
ance will be adversely affected.
CALlPER REMOVAL
AND
DISASSEMBLY
• Disconnect the brake hose and catch
the
brake fluid
in
a
suitable receptacle.
CAUTION:
Never re-use
the
brake fluid left over from servicing and stored
for long periods.
WARNING:
Brake fluid. if it leaks. will interfere with safe running and dis-
color painted surfaces. Check
the
brake hose for cracks and
hose joint for leakage before riding.
• Remove
the
two caliper mounting bolts and take·
off
the
caliper.
NOTE:
Slightly loosen the caliper housing bolts
to
facilitate latter
dis-
assembly before removing the caliper
mounting
bolts.
• Remove
the
pads.
• Separate
the
caliper by removing
the
caliper housing bolts.
• Remove the seals @.
NOTE:
Once the caliper halves have been separated, replace the
O-ring.
• Push
out
the
piston with an air gun.
CAUTION:
Do
not
use high pressure air
to
prevent piston damage.
CHASSIS
7-8
