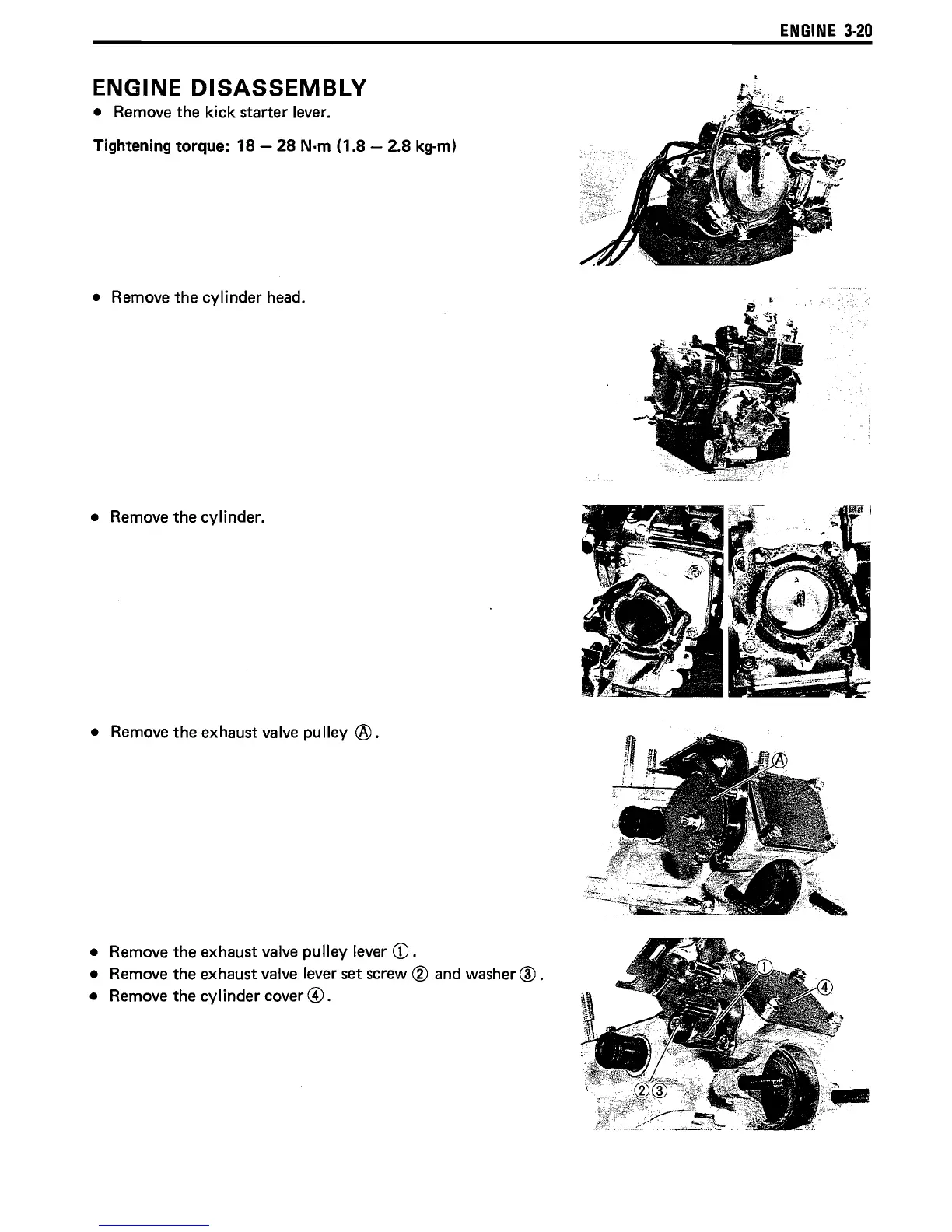

ENGINE
3-20
ENGINE
DISASSEMBLY
•
Remove
the
kick
starter
lever.
Tightening
torque:
18
-
28
N·m
(1.8
-
2.8
kg-m)
•
Remove
the
cylinder
head.
•
Remove
the
cylinder.
•
Remove
the
exhaust
valve
pulley
®.
•
Remove
the
exhaust
valve
pulley
lever
CD.
•
Remove
the
exhaust
valve
lever
set
screw
®
and
washer
@
.
•
Remove
the
cylinder
cover@.
52
54
