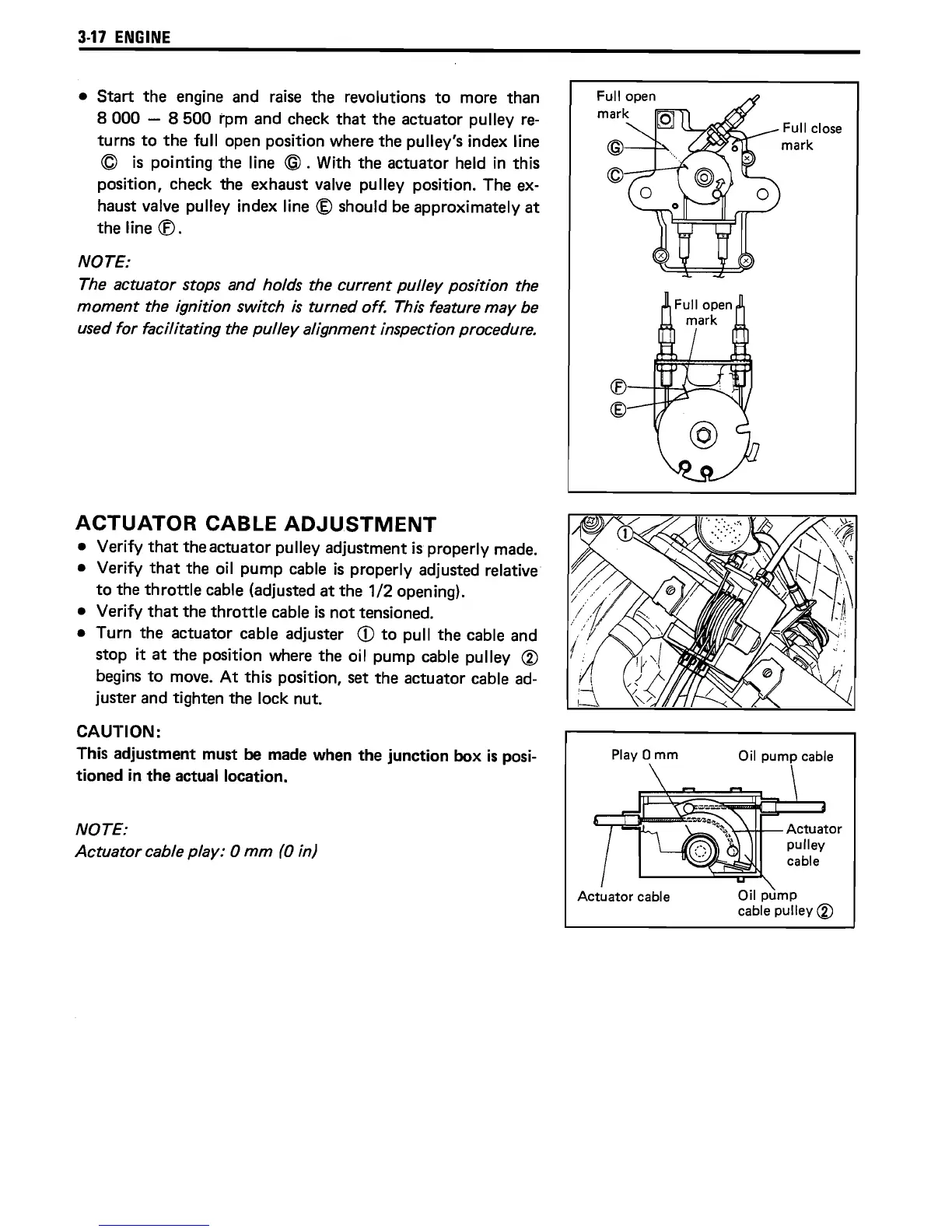

3-17 ENGINE
• Start the engine and raise the revolutions to more than
8000 - 8500 rpm and check that the actuator pulley re-
turns to the full open position where the pulley's index line
© is pointing the line @. With the actuator held in this
position, check the exhaust valve pulley position. The ex-
haust valve pulley index line
® should be approximately at
the line
CB.
NOTE:
The actuator stops and holds the current pulley position the
moment the ignition switch is turned off. This feature may be
used
for facilitating the pulley alignment inspection procedure.
ACTUATOR CABLE ADJUSTMENT
• Verify that the actuator pulley adjustment is properly made.
• Verify that the oil pump cable is properly adjusted relative
to the throttle cable (adjusted at the 1/2 opening).
•
Verify that the throttle cable is not tensioned.
• Turn the actuator cable adjuster
CD to pull the cable and
stop
it at the position where the oil pump cable pulley CID
begins to move. At this position, set the actuator cable ad-
juster and tighten the lock nut.
CAUTION:
This adjustment must be made when the junction box is posi-
tioned in the actual location.
NOTE:
Actuator cable play: 0 mm (0 in)
Full open
@
©
Play 0 mm
Actuator cable
Full close
mark
Oil
pump cable
.
.......... -H--Actuator
pulley
cable
Oil
pump
cable pulley CID
