g.g RGV250L ('90·MODEL)

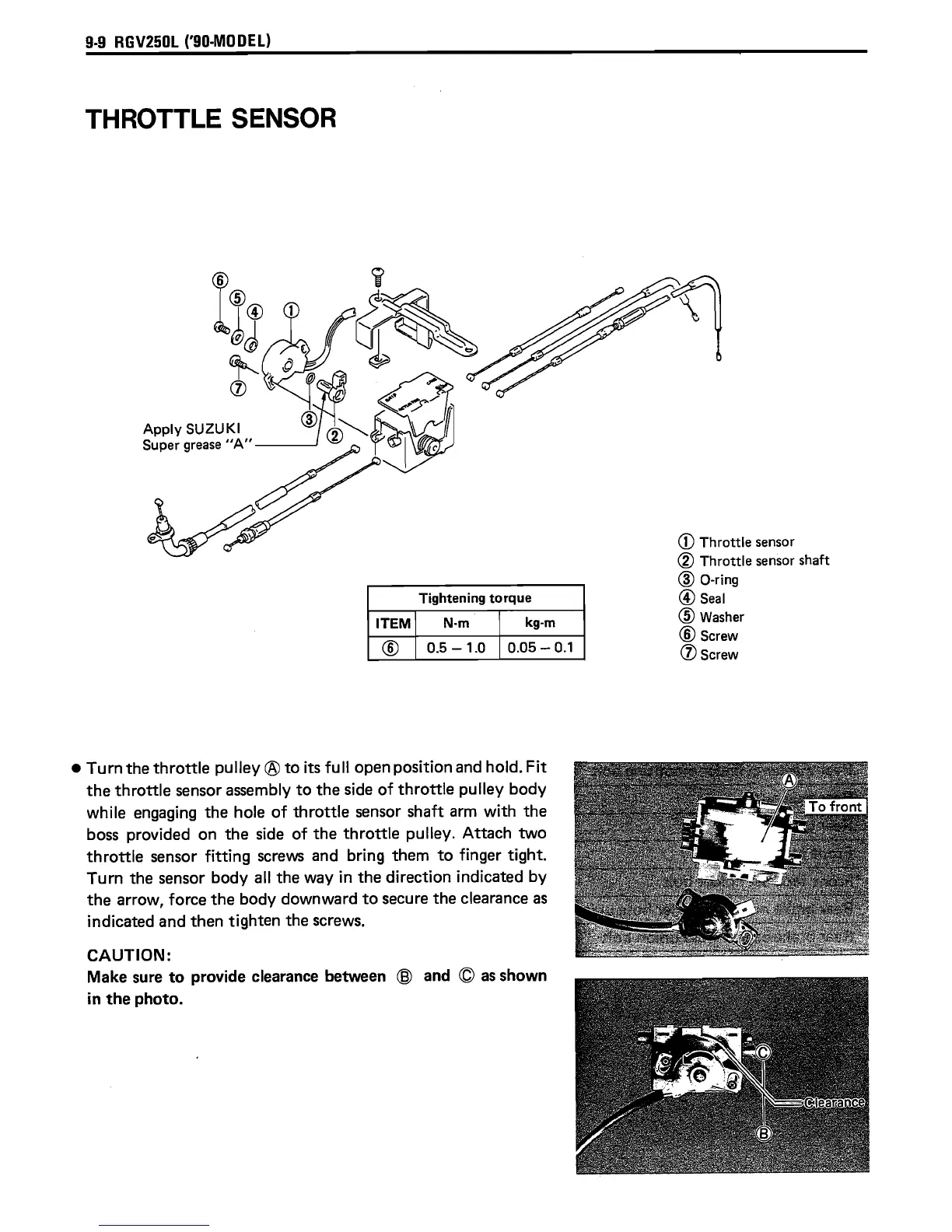

THROTTLE SENSOR
Tightening torque
ITEM N·m
kg·m
®
0.5 -1.0 0.05 - 0.1
• Turn the throttle pulley ® to its full open position and hold. Fit
the throttle sensor assembly to the side of throttle pulley body
while engaging
the hole of throttle sensor shaft arm with the
boss provided on the side of the throttle pulley. Attach two
throttle sensor fitting screws and bring them to finger tight.
Turn the sensor body
all the way in the direction indicated by
the arrow, force the body downward to secure the clearance as
indicated and then tighten the screws.
CAUTION:
Make sure to provide clearance between @ and © as shown
in
the photo.
CD Throttle sensor
CID Throttle sensor shaft
® a-ring
@Seal
CID Washer
® Screw
(j) Screw
