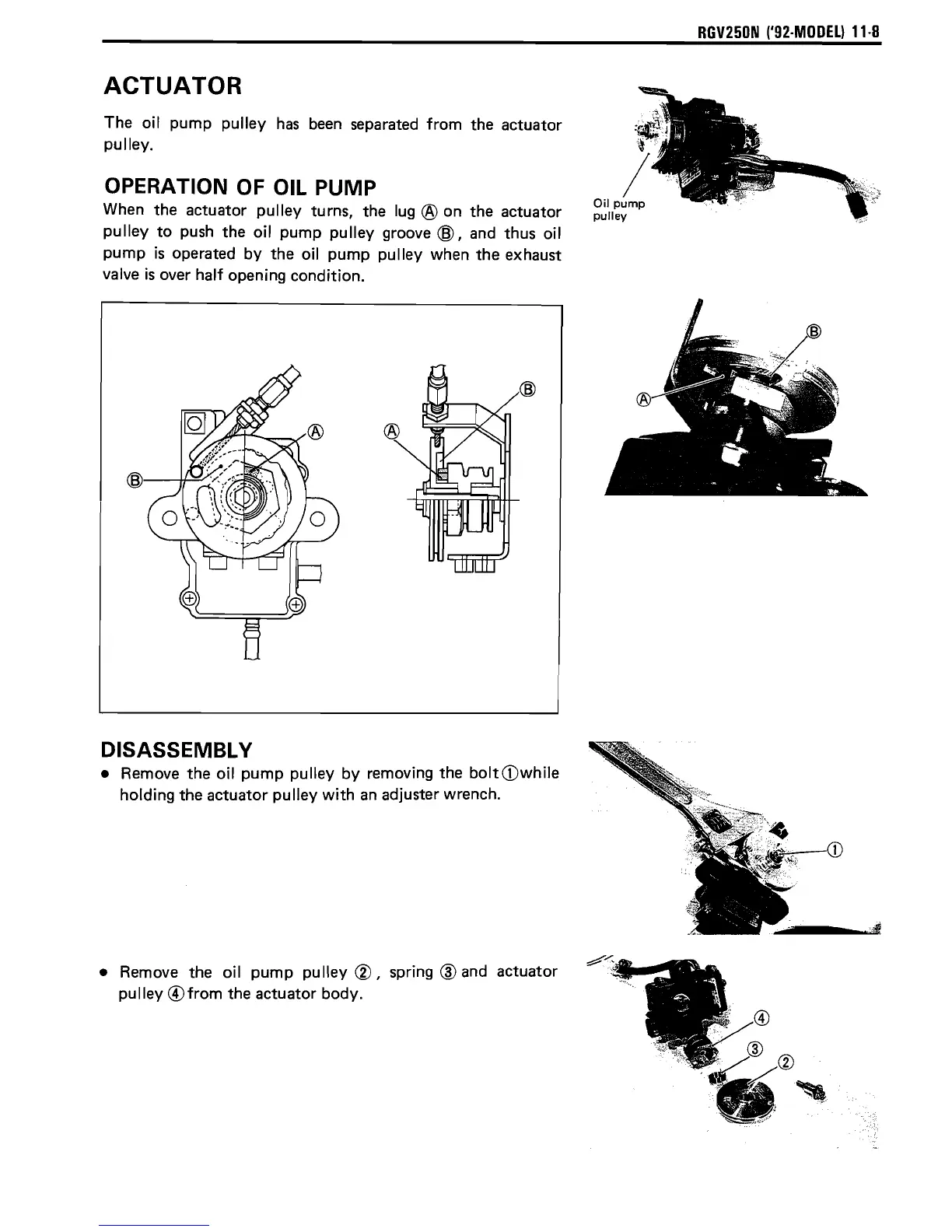

ACTUATOR
The
oil
pump
pulley
has
been
separated
from
the
actuator
pulley.
OPERATION
OF
OIL
PUMP
When
the
actuator
pulley
turns,
the
lug
®
on
the
actuator
pulley
to
push
the
oil
pump
pulley
groove
@,
and
thus
oil
pump
is
operated
by
the
oil
pump
pulley
when
the
exhaust
valve
is
over
half
opening
condition.
DISASSEMBL
Y
•
Remove
the
oil
pump
pulley
by
removing
the
boltCDwhile
holding
the
actuator
pulley
with
an
adjuster
wrench
.
•
Remove
the
oil
pump
pulley
CID,
spring
®
and
actuator
pu
lIey
@
from
the
actuator
body.
RGV250N
('92·MODEL)
11·8
