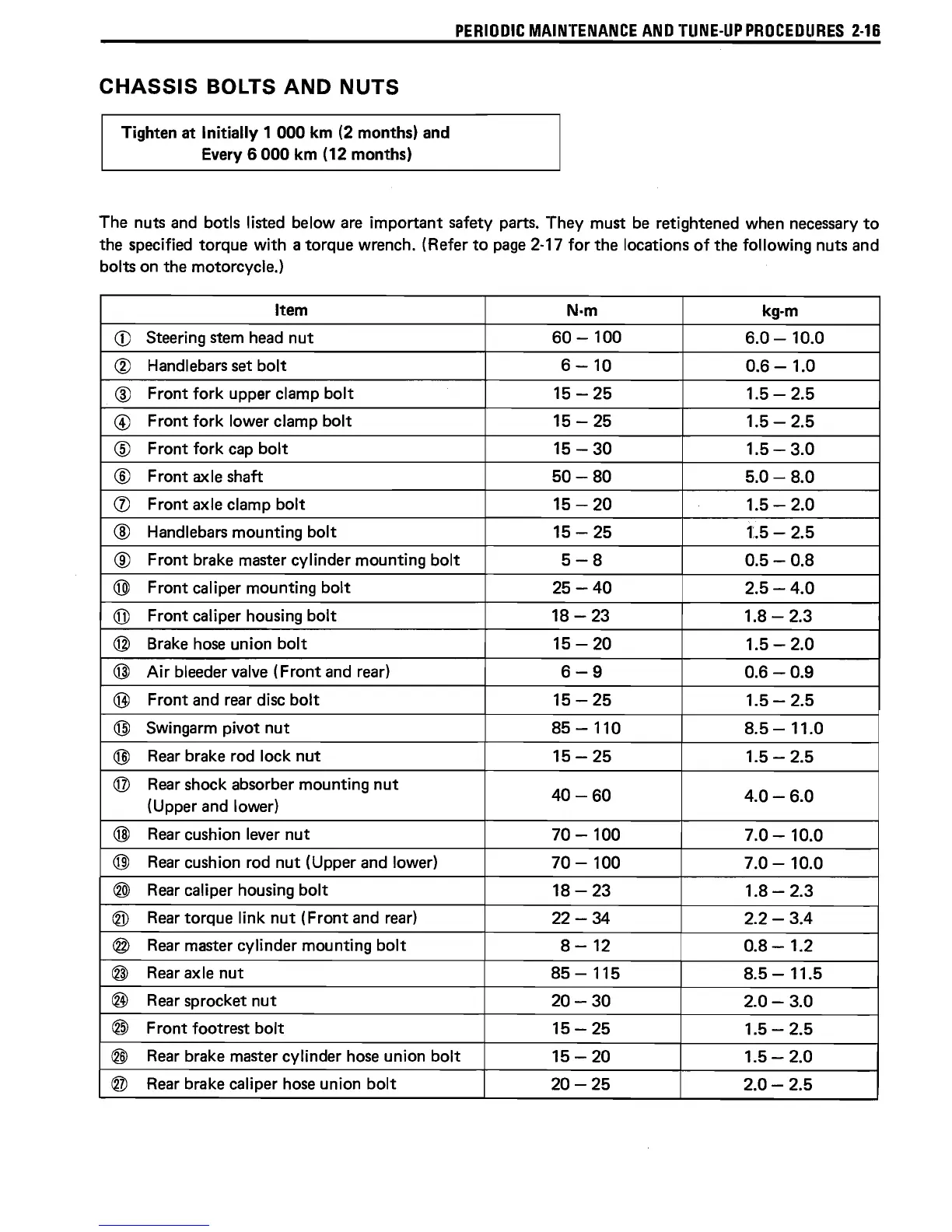

PERIODIC MAINTENANCE AND TUNE-UP PROCEDURES 2-16
CHASSIS BOLTS AND NUTS
Tighten at Initially 1 000 km (2 months) and
Every 6 000 km (12 months)
The nuts
and botls listed below are important safety parts. They must be retightened when necessary to
the specified torque with a torque wrench. (Refer to page 2-17 for the locations of the following nuts and
bolts
on the motorcycle.)
Item
N·m kg-m
CD
Steering stem head nut 60 -100
6.0 - 10.0
<ID
Handlebars set bolt 6 -10
0.6 - 1.0
®
Front fork upper clamp bolt
15 - 25 1.5 - 2.5
®
Front fork lower clamp bolt 15- 25
1.5 - 2.5
@
Front fork cap bolt
15 -30
1.5 - 3.0
®
Front axle shaft 50-80
5.0 - 8.0
(j)
Front axle clamp bolt
15 - 20
1.5 - 2.0
®
Handlebars mounting bolt
15- 25
1:.5 - 2.5
®
Front brake master cylinder mounting bolt 5-8
0.5- 0.8
®
Front caliper mounting bolt 25-40
2.5 - 4.0
C[j)
Front caliper housing bolt
18 - 23 1.8 - 2.3
@
Brake hose union bolt
15 - 20
1.5 - 2.0
@
Air bleeder valve (Front and rear)
6-9
0.6 - 0.9
@
Front and rear disc bolt
15- 25
1.5 - 2.5
@
Swingarm pivot nut
85 - 110 8.5 -11.0
@
Rear brake rod lock nut
15- 25
1.5 - 2.5
@
Rear shock absorber mounting nut
40-60
4.0- 6.0
(Upper and lower)
@
Rear cushion lever nut
70 - 100
7.0 - 10.0
@
Rear cushion rod nut (Upper and lower)
70 - 100
7.0 - 10.0
®
Rear caliper housing bolt
18 - 23
1.8 - 2.3
@
Rear torque link nut (Front and rear)
22-34
2.2 - 3.4
®
Rear master cylinder mounting bolt 8 -12
0.8 - 1.2
@
Rear axle nut
85 - 115
8.5 - 11.5
@
Rear sprocket nut
20-30
2.0 - 3.0
@
Front footrest bolt
15- 25
1.5 - 2.5
@
Rear brake master cylinder hose union bolt
15 - 20 1.5 - 2.0
®
Rear brake caliper hose union bolt
20-25
2.0- 2.5
