5B-6 Manual Transmission:
Driveshaft Assembly

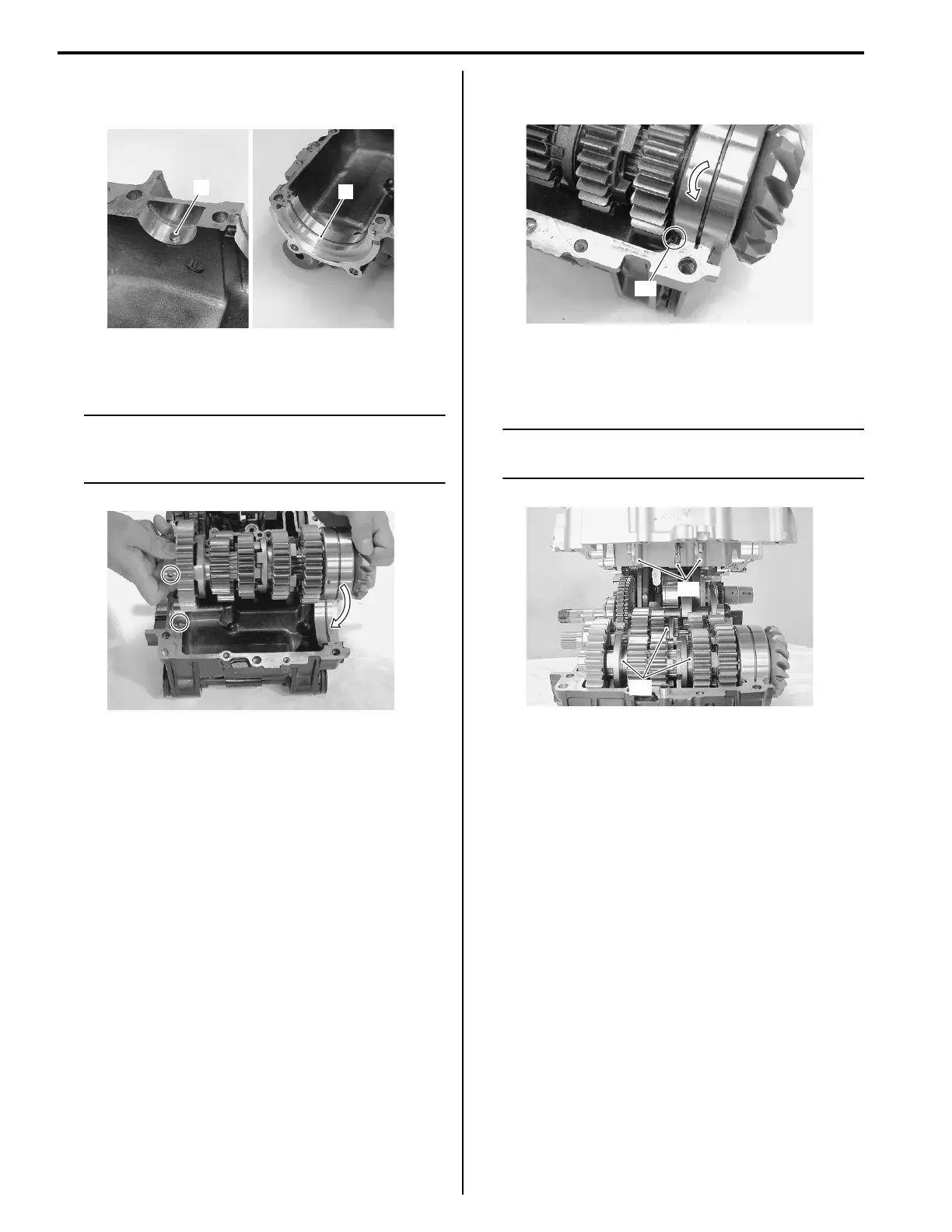

• Install the bearing pin (1) and C-ring (2).
• Install the driveshaft assembly on the upper
crankcase.
NOTE
Align the C-ring with the groove of the
bearing and the bearing pin with the indent
on the bearing.
• Turn the bearing to fit the bearing dowel pin in the
position “A”.
• Assemble the upper and lower crankcases. Refer to
“Engine Bottom Side Assembly in Section 1D
(Page 1D-68)”.
NOTE
Align the gear shift forks “B” with their
grooves “C”.
• Assemble the engine. Refer to “Engine Bottom Side
Assembly in Section 1D (Page 1D-68)” and “Engine
Top Side Assembly in Section 1D (Page 1D-30)”.
• Remount the engine assembly. Refer to “Engine
Assembly Installation in Section 1D (Page 1D-23)”.
1
2
I822H1520018-01
I822H1520019-02
“A”
I822H1520020-01
“C”
“B”
I822H1520021-01
