Analyzing waveforms Configure a search
Configure a search
From the Analyze menu, select Search; then open the Configure tab.
Overview
Use the controls in this window to set up the instrument to automatically search and place marks.
NOTE. Sear c
h and mark operations are not available on digital channels.
To use
For information on the controls, click the buttons.
Behavior

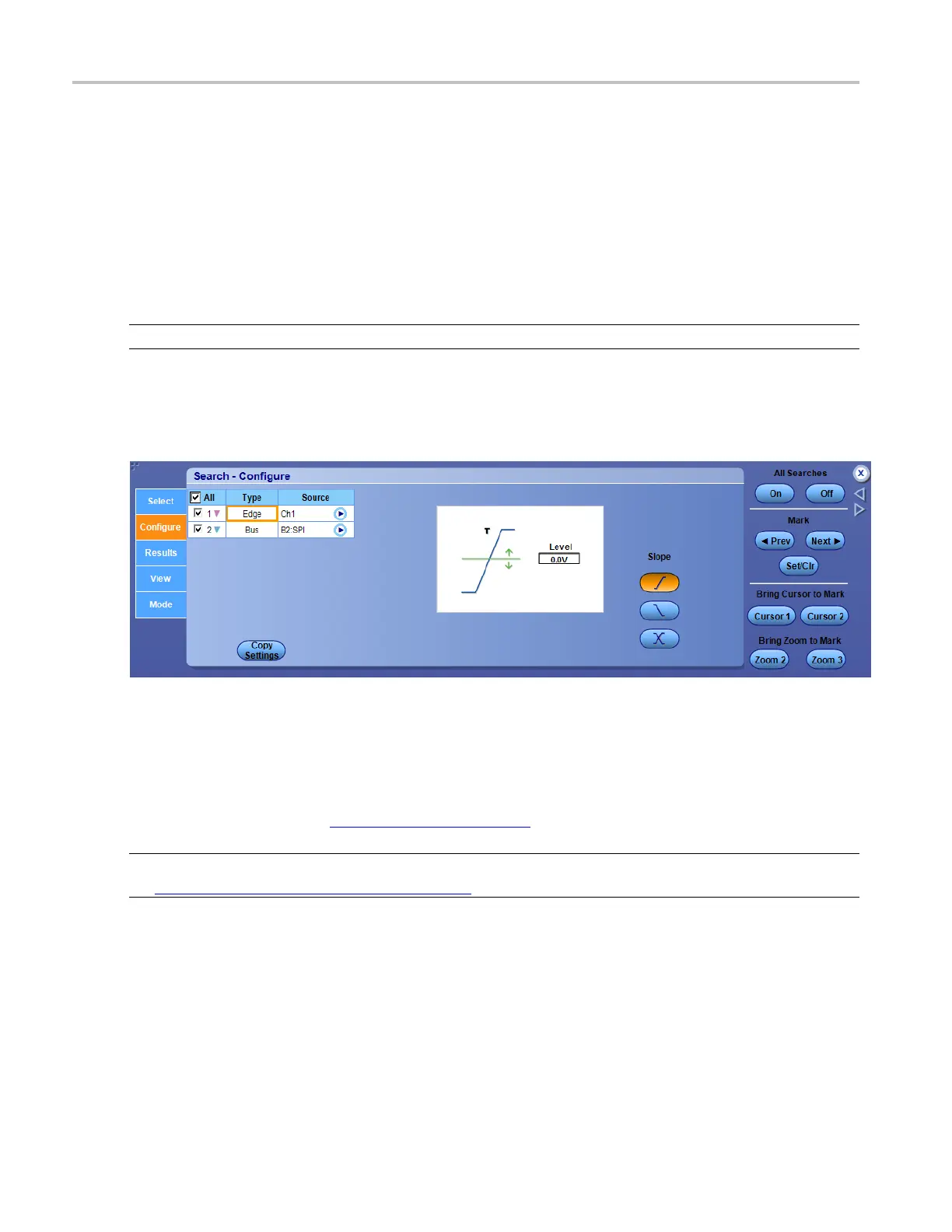

Clicking an entry in the Type column activates the individual search controls, similar to the one shown
above. These controls vary depending on the search Type. Setting the search conditions is similar to
setting the parameters for an Event Trigger
(see page 386).
NO
TE. No information will be displayed in this window until you specify at least one search Type in
the Search Select Control Window
(see page 300).
C
opy search settings
F
rom the Analyze menu, select Search; then open the Configure tab and press the Copy Settings button.
