Tektronix DSA70000D Series User Manual

Vertical Setups Probe Properties

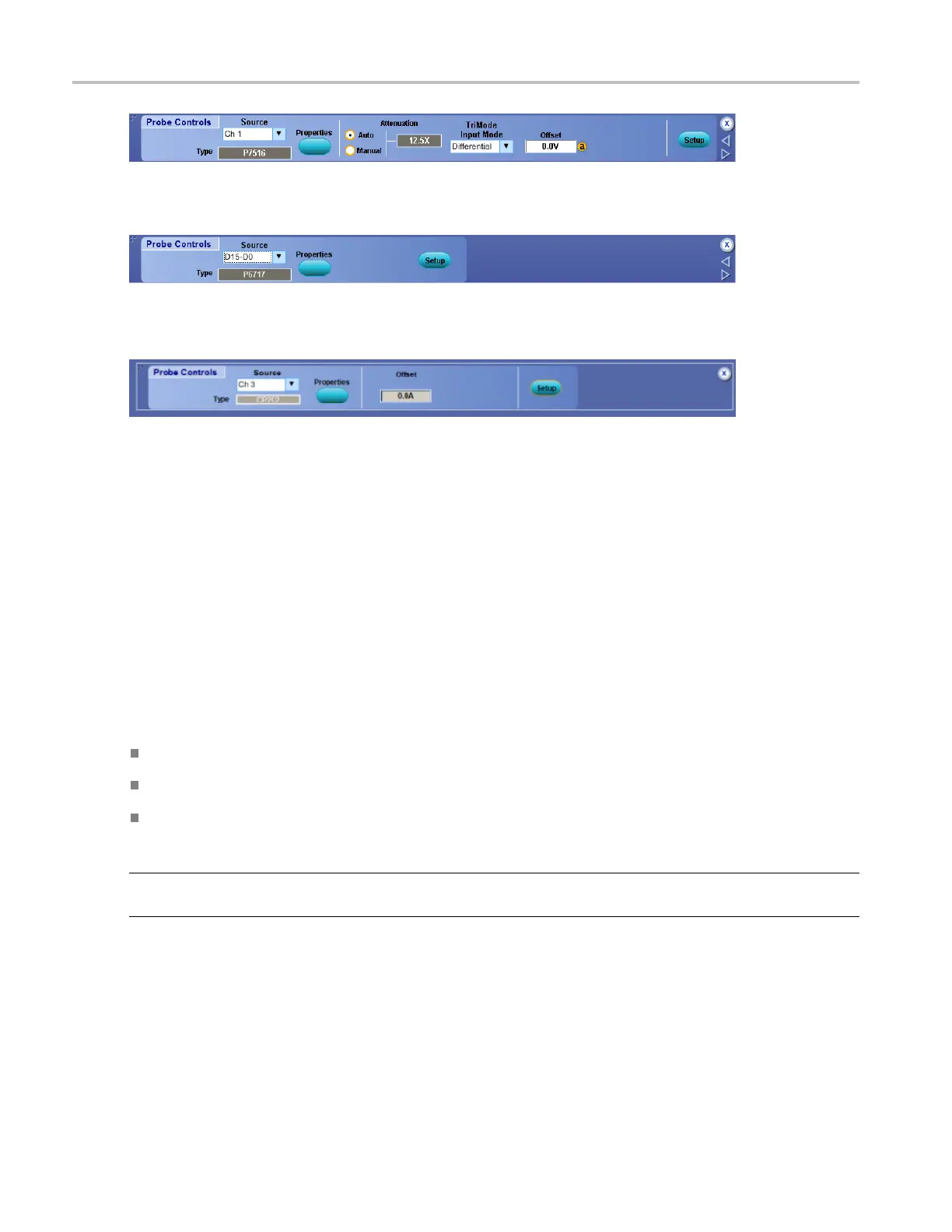

This window contains controls for Tektronix logic probes.
This window contains controls for Tektronix generic probes.
Probe Properties
From the Vertical menu, select Probe Controls, click the Setup button, and then click the Properties button.
To use
The Probe Properties dialog displays information on the probe attached to the analog or to the digital
chann
els. To view the probe information, select the channel of interest from the drop-down list of
channels under Probe.
The d
ialog includes the following information for analog probes:
Type of probe connected to the selected channel
Serial number of the attached probe (for probes with serial numbers)
Status information, such as the time you connected the probe, the probe type, the serial number, and
compensation results
NOTE. When the probe is compensated, the instrument polls the probe and displays the serial number. An
N
/A indicates that the probe has not been compensated.
508 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series

Tektronix DSA70000D Series Specifications

General

Channels	up to 4
Memory Depth	up to 1 Gpts
Vertical Sensitivity	1 mV/div to 1 V/div
Input Coupling	AC, DC, GND
Sample Rate	up to 100 GS/s
Input Impedance	50 Ω
Trigger Types	Edge, Runt, Timeout, Setup/Hold
Display	12.1-inch LCD
Vertical Resolution	8 bits
Interface	GPIB, USB, Ethernet
