Analyzing waveforms Set up FLEXRAY search parameters

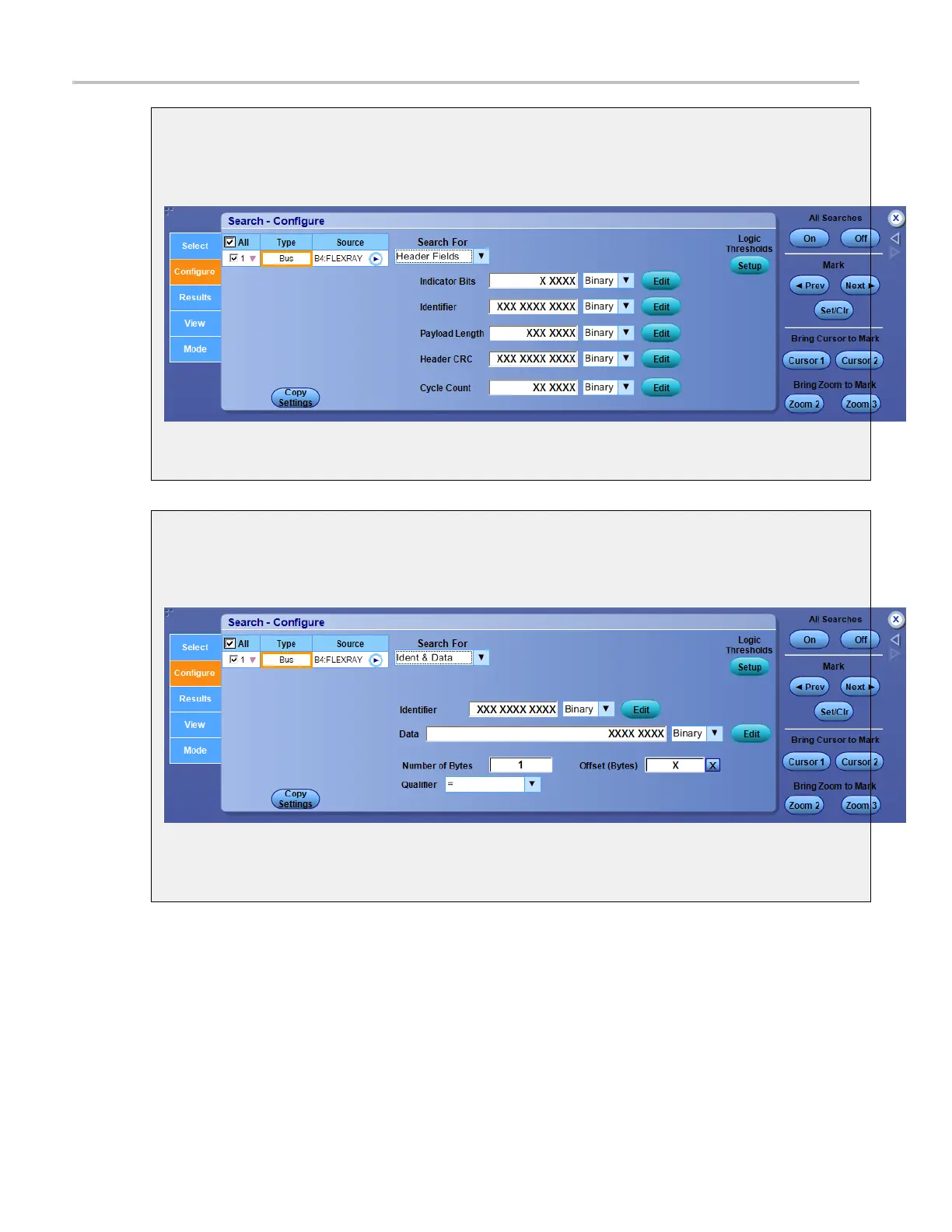

Search for hea der fields
The data type options available in Search For Header Fields are Indicator Bits, Identifier, Payload
Length, Heade
r CRC, and Cycle Count.
Click Edit to enter the data value. Click Logic Thresholds to adjust the logic thresholds.
Search for ident & data
The d ata type options available in Search For Ident & Data are Identifier, Number o f Bytes, Qualifier,
Offset, and Data.
Select the Identifier from the drop-down list. Click Edit to enter the data values. Click Logic
Thresholds to adjust the logic thresholds.
