Model 4200A-SCS Prober and External Instrument Control Section 9: Using a Cascade Microtech PA200 Prober

4200A-913-01 Rev. A December 2020 9-7

# Configuration for direct GPIB probers:

# PA200

#PROBER_1_PROBTYPE=PA200

#PROBER_1_OPTIONS=0,0,0,0,1,0

#PROBER_1_IO_MODE=GPIB

#PROBER_1_GPIB_UNIT=0

#PROBER_1_GPIB_SLOT=1

#PROBER_1_GPIB_ADDRESS=8

#PROBER_1_GPIB_WRITEMODE=0

#PROBER_1_GPIB_READMODE=2

#PROBER_1_GPIB_TERMINATOR=13

#PROBER_1_TIMEOUT=300

#PROBER_1_SHORT_TIMEOUT=5

#PROBER_1_MAX_SLOT=25

#PROBER_1_MAX_CASSETTE=1

Set up communications on the prober

You can configure the PA-200 prober for serial or GPIB communication. Ensure that the prober is set

up for the type of communications interface that is defined on the 4200A-SCS (see Set up

communications on the 4200A-SCS (on page 9-6)).

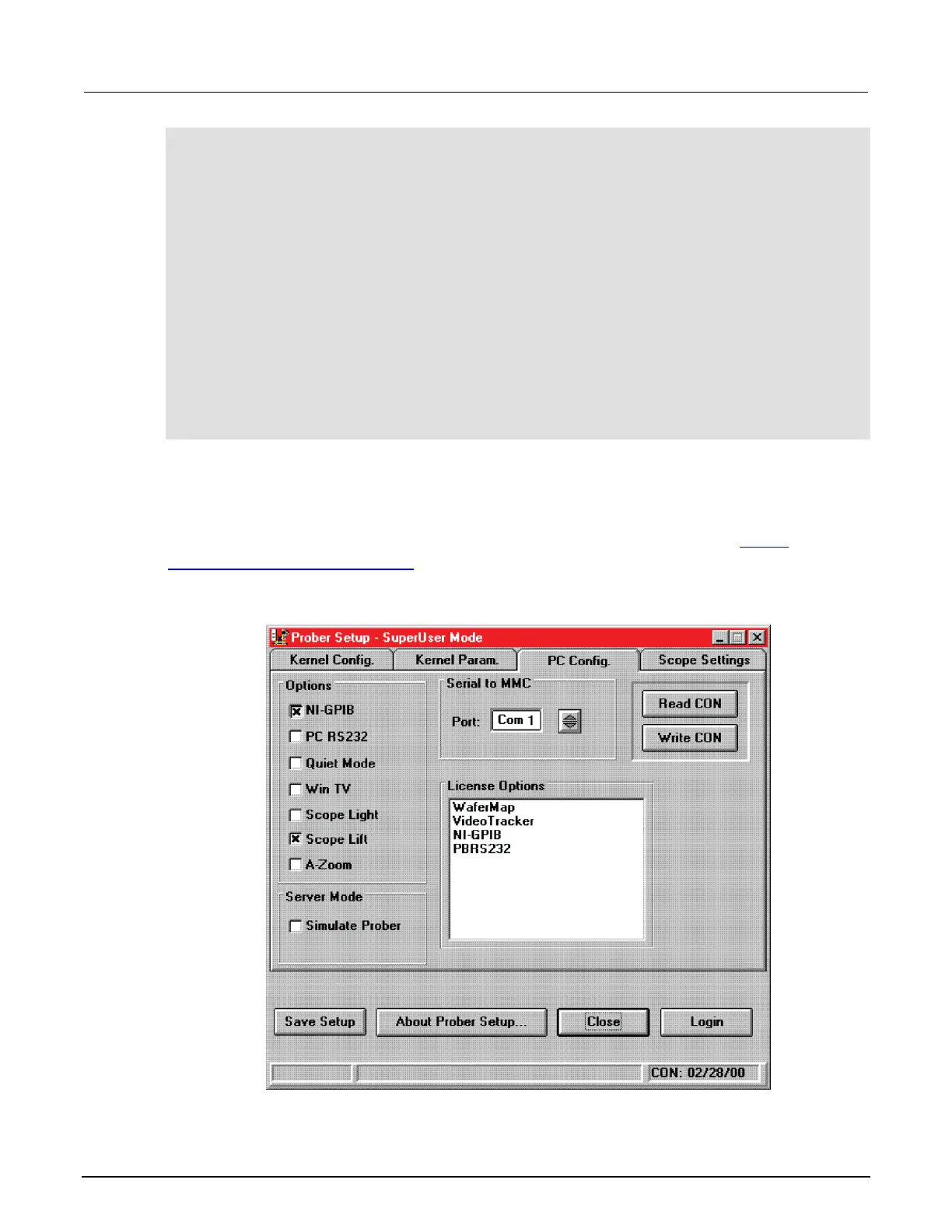

Figure 134: Prober setup: PC Config tab
