Output frequency [Hz]
Time [s]
Designated frequency  
ON
OFF
Designated frequency  
Setting frequency
Output frequency attainment signal
: OUT-NO terminals
Inversion of output frequency
attainment signal
ON
OFF
0

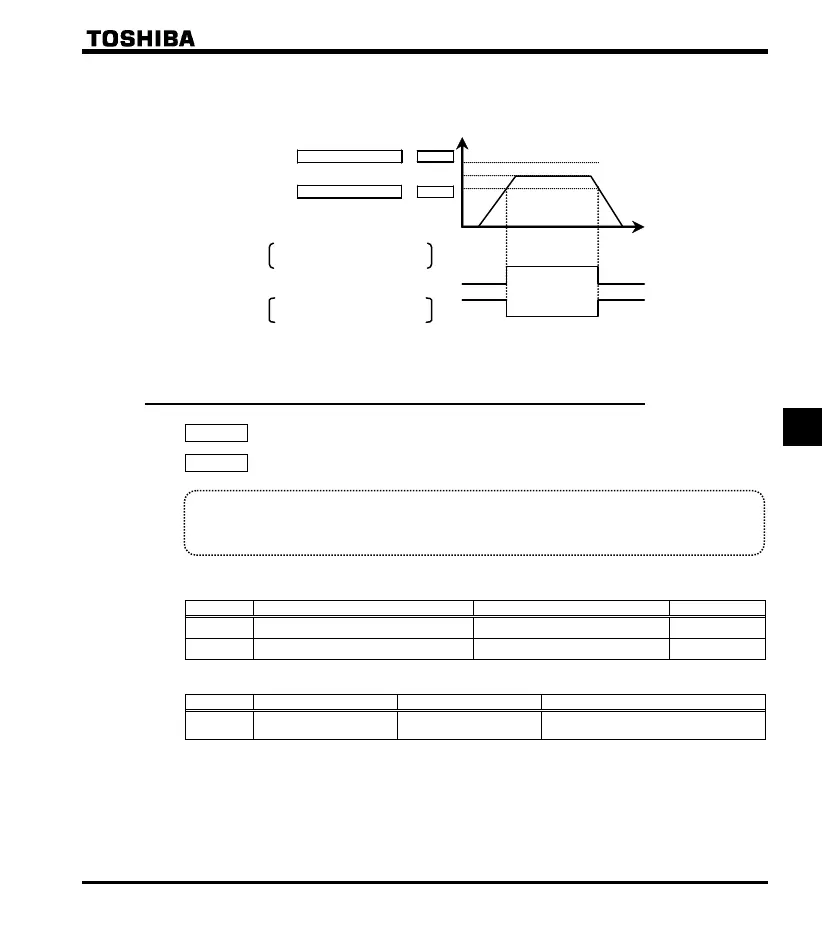

6.1.3 Output of set frequency speed reach signal
 : Speed reach setting frequency
 : Speed reach detection band
 Function
When the output frequency becomes equal to the frequency set by
, an ON or OFF
signal is generated.
[Parameter setting]
Parameter setting of frequency and detection band
Title Function Ad
j
ustment ran
g
e Default settin
g

Speed reach setting frequency 0.0 -
 (Hz) 0.0

Speed reach detection band 0.0 -
 (Hz) 2.5
Parameter setting of output terminal selection
Title Function Ad
j
ustment ran
g
e Settin
g

Output terminal
selection 1A
(
OUT
)
0-255
(
Refer to section 10.6
)
8: RCHF (Set frequency attainment
si
g
nal
)
Setting value 9 is reverse signal.
Note: Set
 to assign to FLA-FLC-FLB terminals.
