Toshiba TOSVERT VF-nC3E User Manual

E6582233
F-46
6

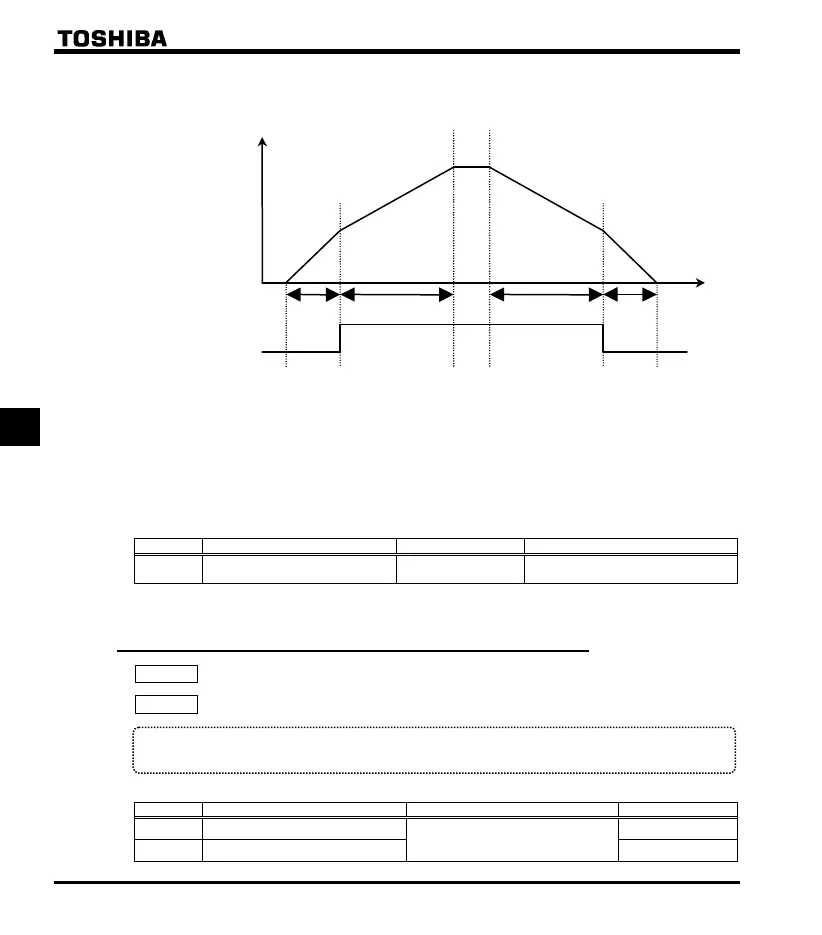

2) Switching according to terminal (switching acceleration/deceleration time by
external terminal)
(3) Acceleration at ramp of
deceleration time

(4) Acceleration at ramp of
deceleration time

(1) Acceleration at ramp of
acceleration time

(2) Acceleration at ramp of
acceleration time

Output frequency [Hz]
(4)
(1)
(2) (3)
Second acceleration/deceleration
selection signal
Time
[s]
0
ON
OFF
 Parameter configuration method
a) Method of operation from terminal input
Set run operation selection  to  (terminal block).
b) Set the second acceleration/deceleration switching to any input terminal.
The following shows an example of setting to input terminal S2.
Title Function Ad
j
ustment ran
g
e Settin
g
 Input terminal selection 4A (S2)
0
 201
24: AD2 (2nd
acceleration/deceleration
)
Setting value 25 is reverse signal.
6.17.2 Acceleration/deceleration pattern setting
 :Acceleration/deceleration 1 pattern
 :Acceleration/deceleration 2 pattern
 Function
Select a acceleration and deceleration pattern appropriate for the application.
[Parameter setting]
Title Function Ad
j
ustment ran
g
e Default settin
g

Acceleration/deceleration 1 pattern
0: Linear
1: S-pattern 1
2: S-pattern 2
0
 Acceleration/deceleration 2 pattern 0
