Toshiba TOSVERT VF-nC3E User Manual

E6582233
A-6
1
1.3.2 Opening the terminal cover
Caution
Mandatory
action
 When removing and installing the terminal cover with a screwdriver, be sure not to scratch your hand
as this results in injury.
 Pressing too hard on the screwdriver may scratch the inverter.
 Always cut the power supply when removing the wiring cover.
 After wiring is complete, be sure to replace the terminal cover.

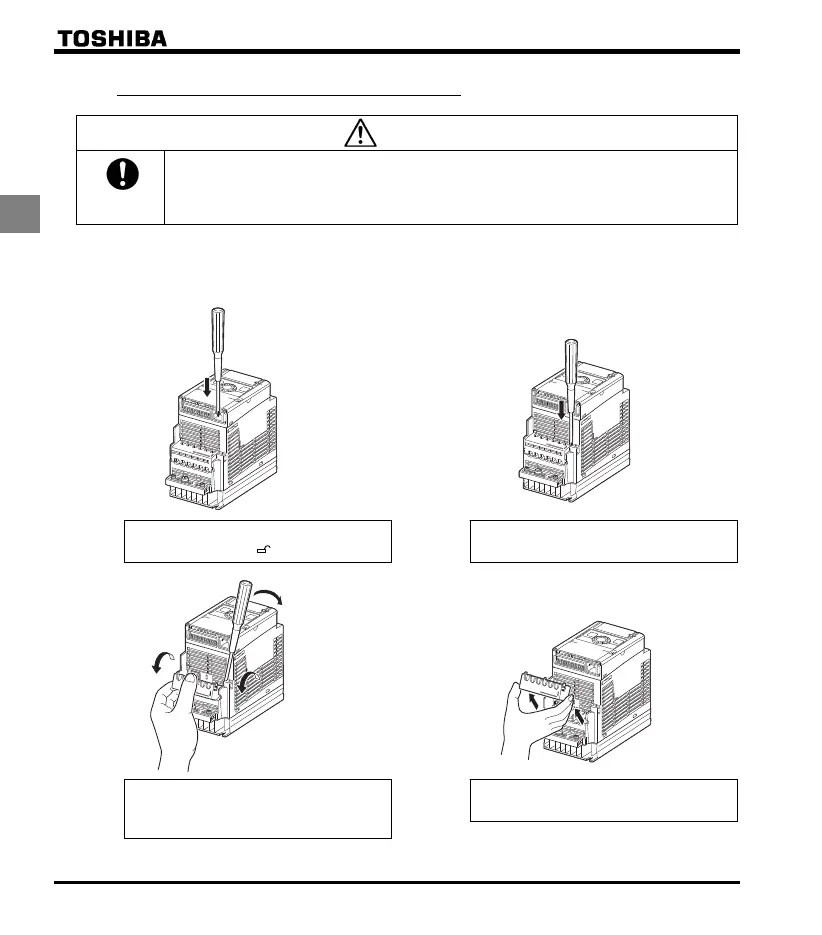

Use the following procedure to remove the power terminal block covers.
(1) Removing the power terminal cover (VFNC3E-4004P, 4007P)
 Use the small sized flat-blade screwdriver for control circuit terminal
★ After wiring is complete, be sure to restore the terminal cover to its original position.
1)
2)
3)
4)
Insert a screwdriver or other thin object into the
hole indicated with the
mark.
Press in on the screwdriver.
While pressing on the screwdriver, rotate the
screwdriver to right and rotate the terminal
cover downward to remove it.
Pull the terminal cover up at an angle.
