How to use the guidance function

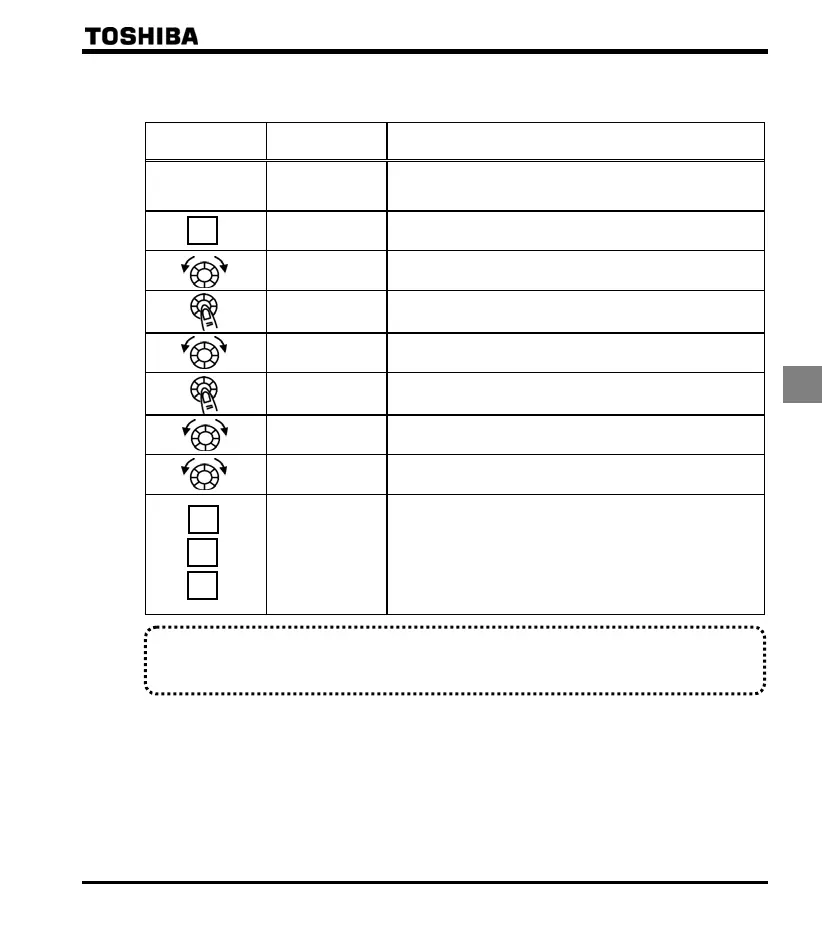

Here are the steps to follow to set parameters, using the guidance function. (When the basic setting guidance
(auf) is set to 1)
Operation panel
action
LED display Operation
Displays the operation frequency (operation stopped).
(When standard monitor display selection = is set to 0 [operation
frequency]).
The first basic parameter "History ()" is displayed.
Turn the setting dial to select the guidance function ().
Press the center of the setting dial to display .
Turn the setting dial to change to the purpose-specific guidance
setting value "".
Press the center of the setting dial to display the purpose-specific
guidance parameter group (refer to table below).
＊＊＊＊
After moving to the purpose-specific guidance parameter group, use
the setting dial to change the parameters.
is dialyzed on completion of the setting of the guidance parameter
group.
Display of parameter
↓
↓
↓
Press the MODE key to exit the guidance parameter group.
By pressing the MODE key, you can return to the default monitoring mode
(display of operation frequency).
If there is anything you do not understand during this operation, press the MODE key several times to start over
from the step of display.
or is affixed respectively to the first or last parameter in each guidance wizard parameter group.
