Toshiba TOSVERT VF-nC3E User Manual

E6582233
A-9
1
1.3.3 Power circuit and control circuit terminal boards
In case of the lug connector, cover the lug connector with insulated tube, or use the insulated lug connector.
1) Power circuit terminal board
In case of the lug connector, cover the lug connector with insulated tube, or use the insulated lug
connector.
Screw size Ti
g
htenin
g
torque
M3.5 screw 1.0Nm 8.9lb  in
M4 screw 1.4Nm 12.4lb  in
M5 screw 2.4Nm 21.3lb  in
Refer to section 2.3.1 for details about terminal functions.

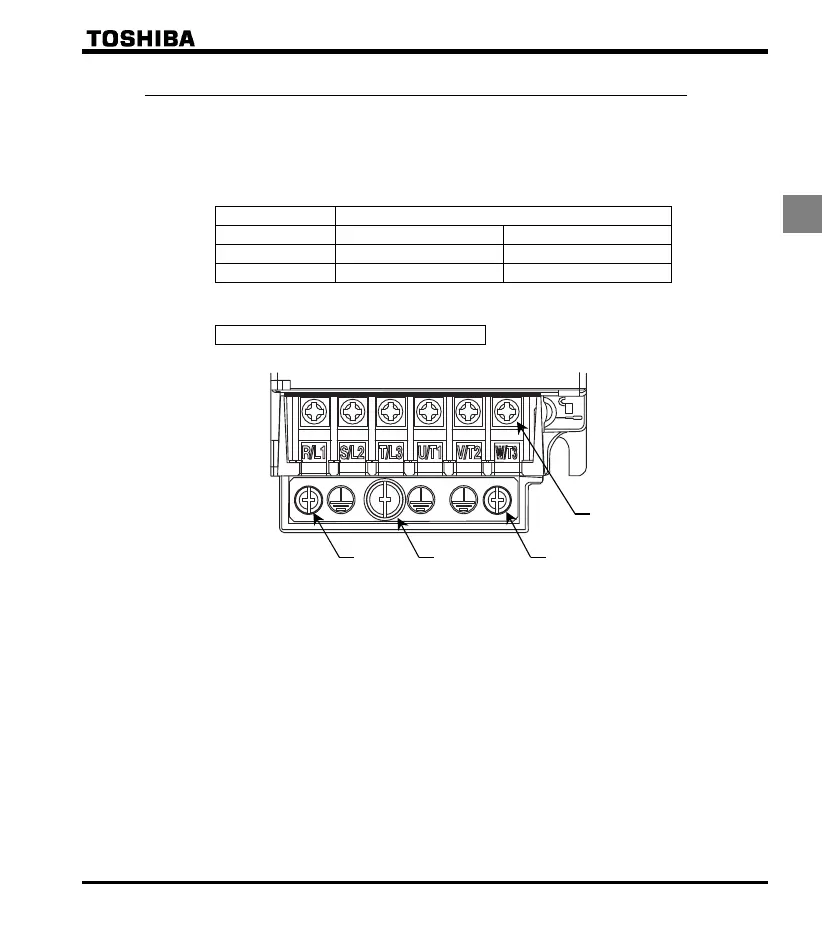

VFNC3E-4004P, 4007P
M3.5 screw
Earth
terminal
(M4 screw)
Earth
terminal
(M4 screw)
Earth
terminal
(M5 screw)
