4-1

FUEL

FUEL HOSE AND FUEL FILTER

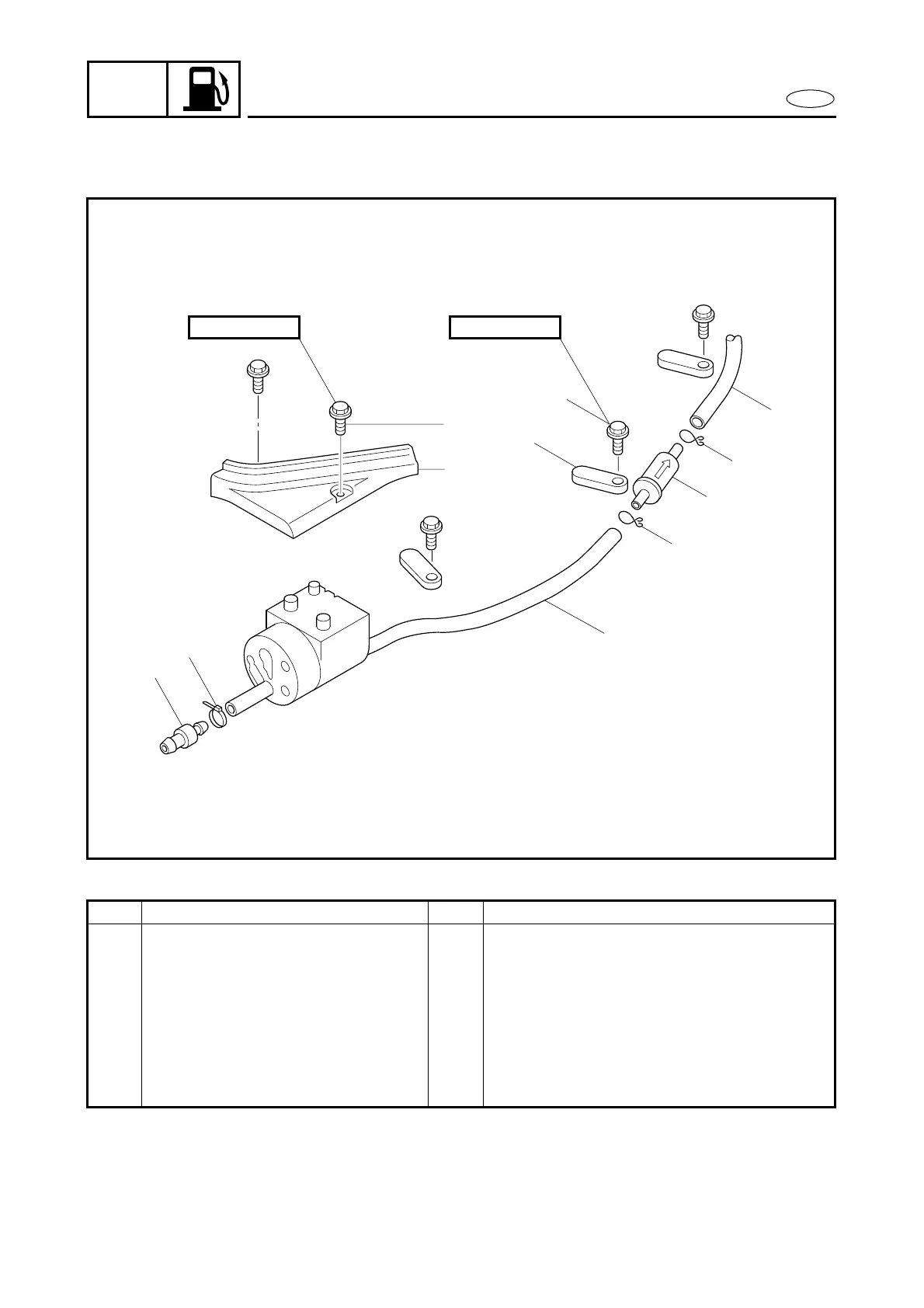

EXPLODED DIAGRAM

6 × 25 mm

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

FUEL HOSE AND FUEL FILTER

REMOVAL

Follow the left “Step” for removal.

1 Bolt 2

2 Grommet retaining plate 1

3 Bolt 3

4 Plate 3

5 Clip 2

6 Fuel filter 1
