8-28

–+

ELEC

BATTERY

Refer to “GENERAL” in chapter 3.

FUSES

Refer to “STARTING SYSTEM”.

LIGHTING COIL

Refer to “IGNITION SYSTEM”.

RECTIFIER/REGULATOR

Refer to “IGNITION SYSTEM”.

ELECTROTHERMAL VALVE

1. Check:

● Electrothermal valve operation

Faulty → Replace.

Checking steps:

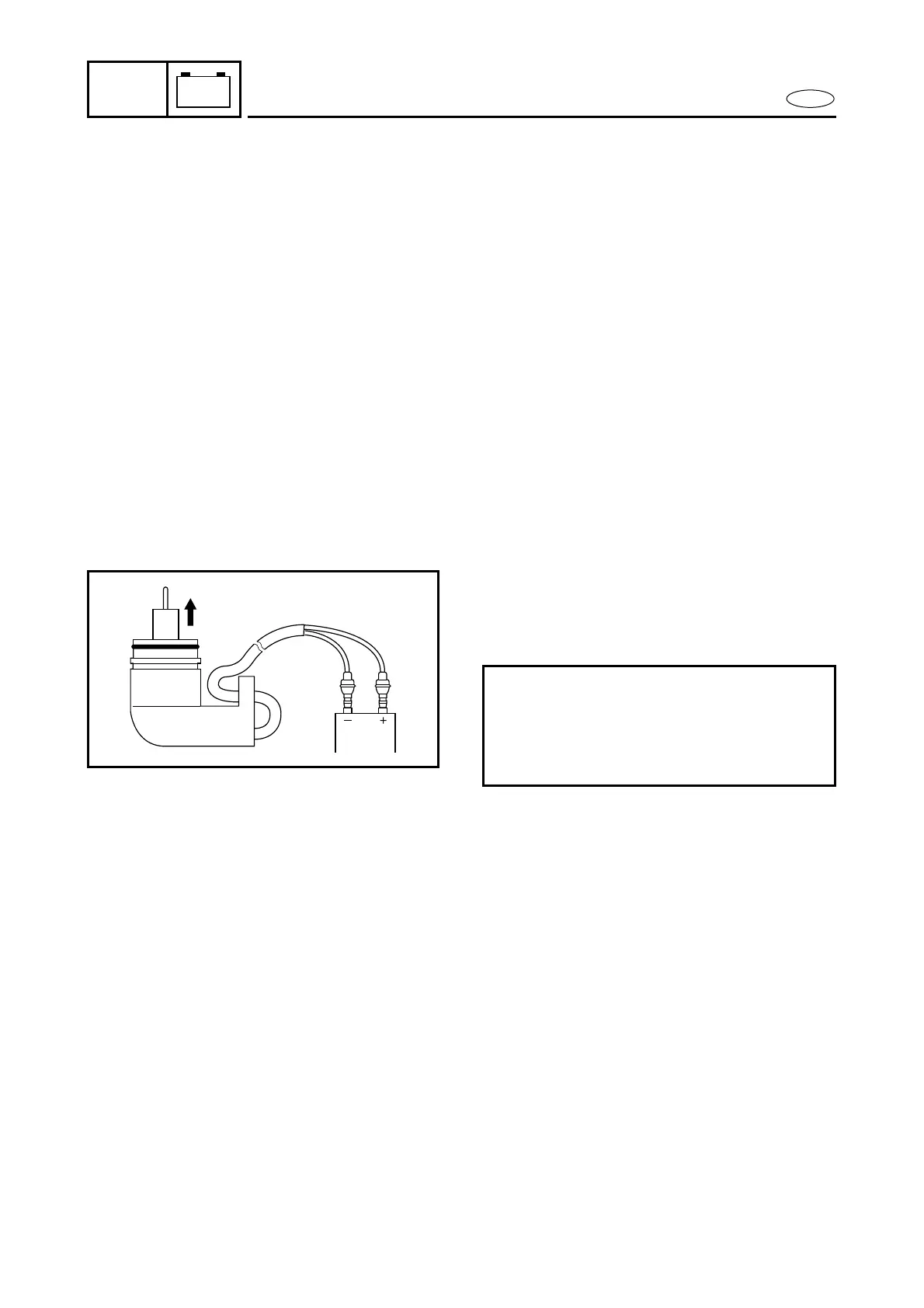

● Connect a 12-V battery to the electro-

thermal valve.

● Check that the plunger pushes out

from the holder.

ENRICHMENT CONTROL SYSTEM
