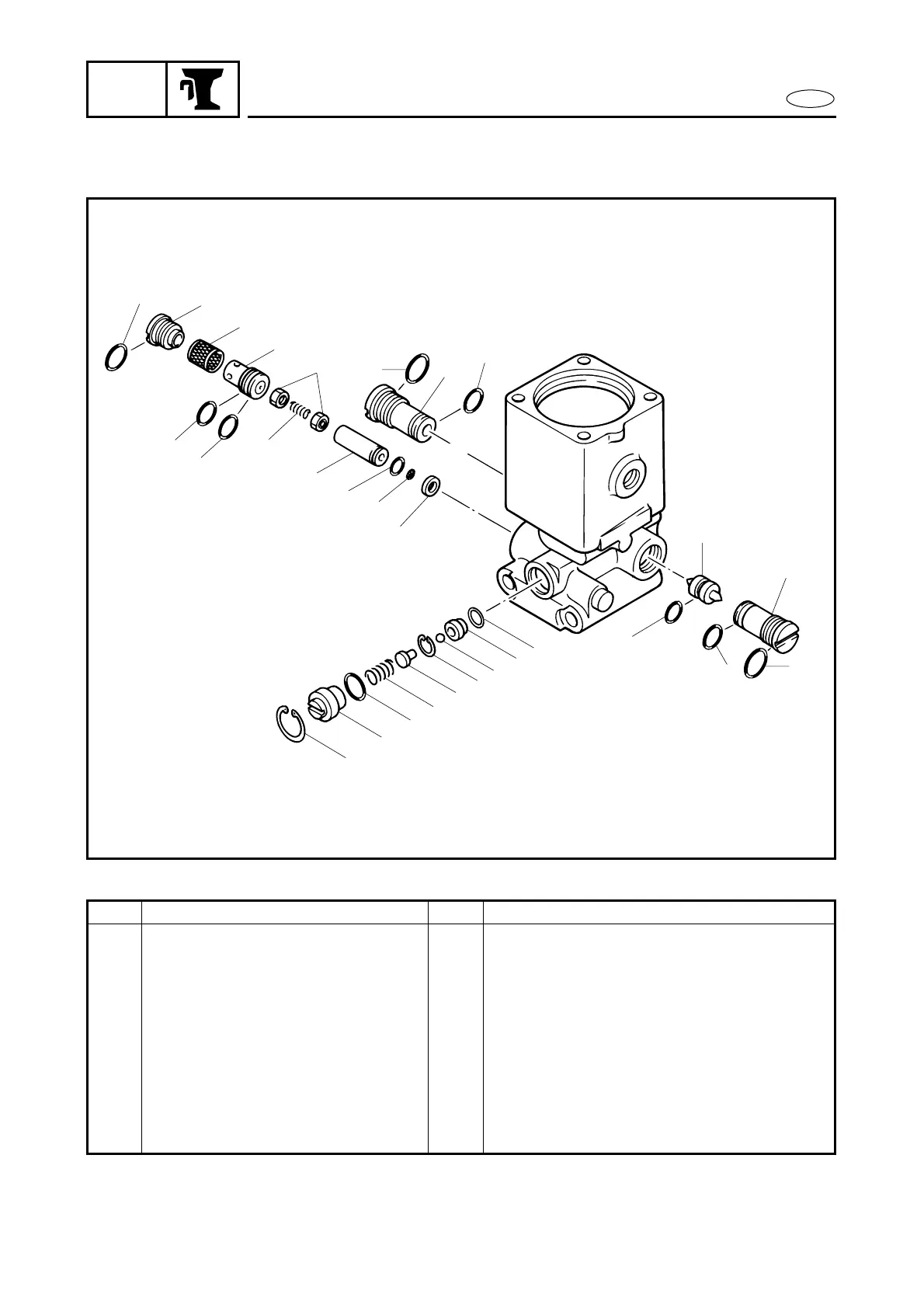

Yamaha F100X - Pump Housing Exploded Diagram

7-29
E
BRKT
PUMP HOUSING
PUMP HOUSING
EXPLODED DIAGRAM
1
2
3
4
6
5
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
22
23
23
24
24
25
26
15
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PUMP HOUSING DISASSEMBLY Follow the left “Step” for removal.
PTT unit Refer to “POWER TRIM AND TILT (PTT)
UNIT”.
1 Circlip 1
2 Manual valve screw 1
3 O-ring 1
4 Circlip 1
5 Spring 1
6 Plunger 1
7 Ball 1
