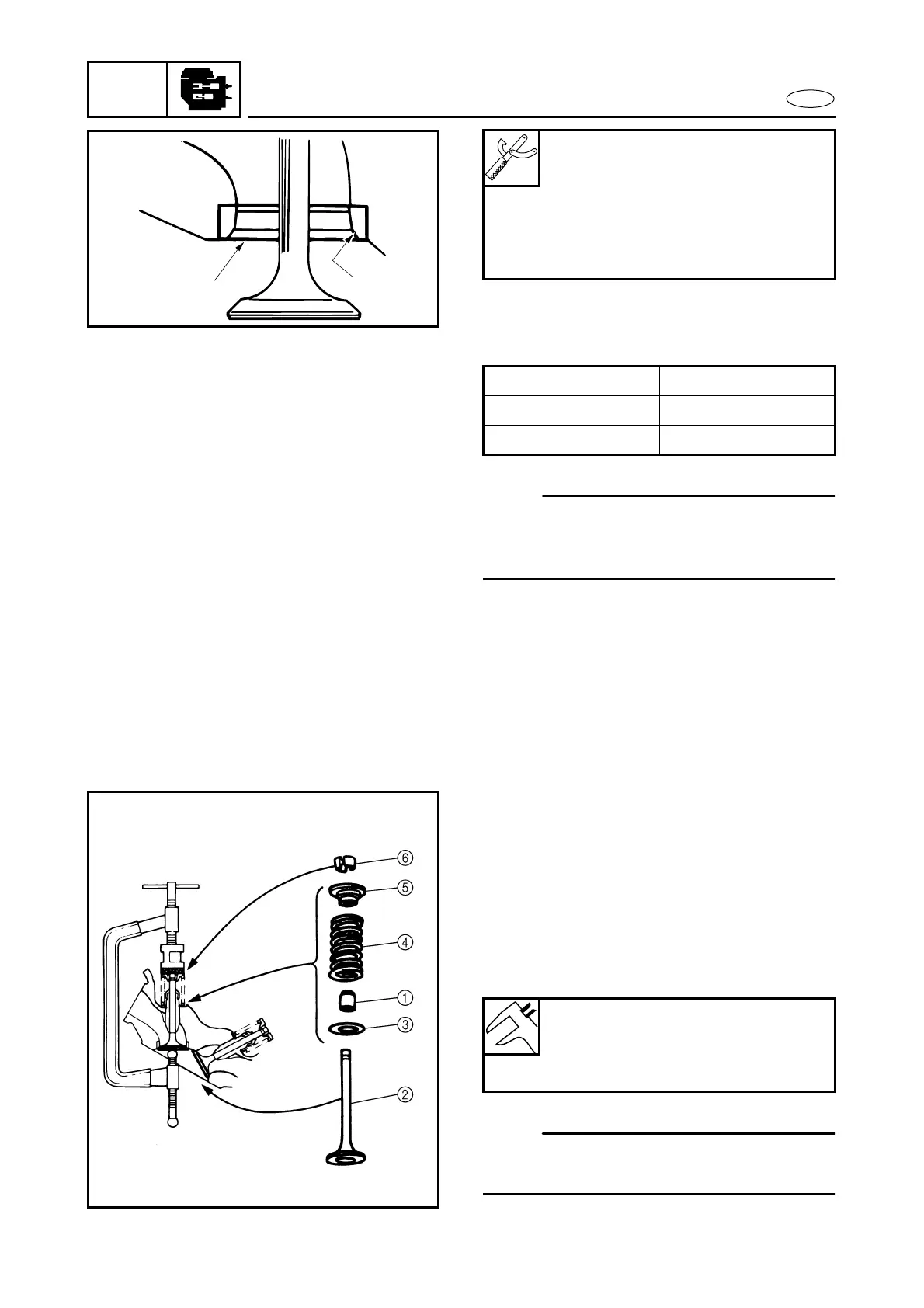

● Refer to the following chart to deter-
mine the appropriate valve seat cut-
ter.
NOTE:
After refacing the valve seat or replacing
the valve and valve guide, lap the valve seat
and valve face.
Valve seat cutter set:
YM-91043-C/90890-06803
Valve seat cutter holder:
YB-06553/90890-06553
Valve seat cutter:
(45˚) YB-06555/90890-06555
(90˚) YB-06556/90890-06556
Valve seat area Valve seat cutter
A 90˚
B 45˚
B
A
Valve installation
1. Install:
● Valve stem seal 1
● Valve 2
● Spring seat 3
● Valve spring 4
● Spring retainer 5
2. Install:
● Valve cotter 6
NOTE:
Compress the valve spring with the special
tools and install the cotters onto the valve.
Valve spring compressor:
YM-01253/90890-04019
Adapter:
YB-06554/90890-06554
