Yamaha F100X Service Manual

7-6
E
BRKT
UPPER CASE ASSY.
UPPER CASE ASSY.

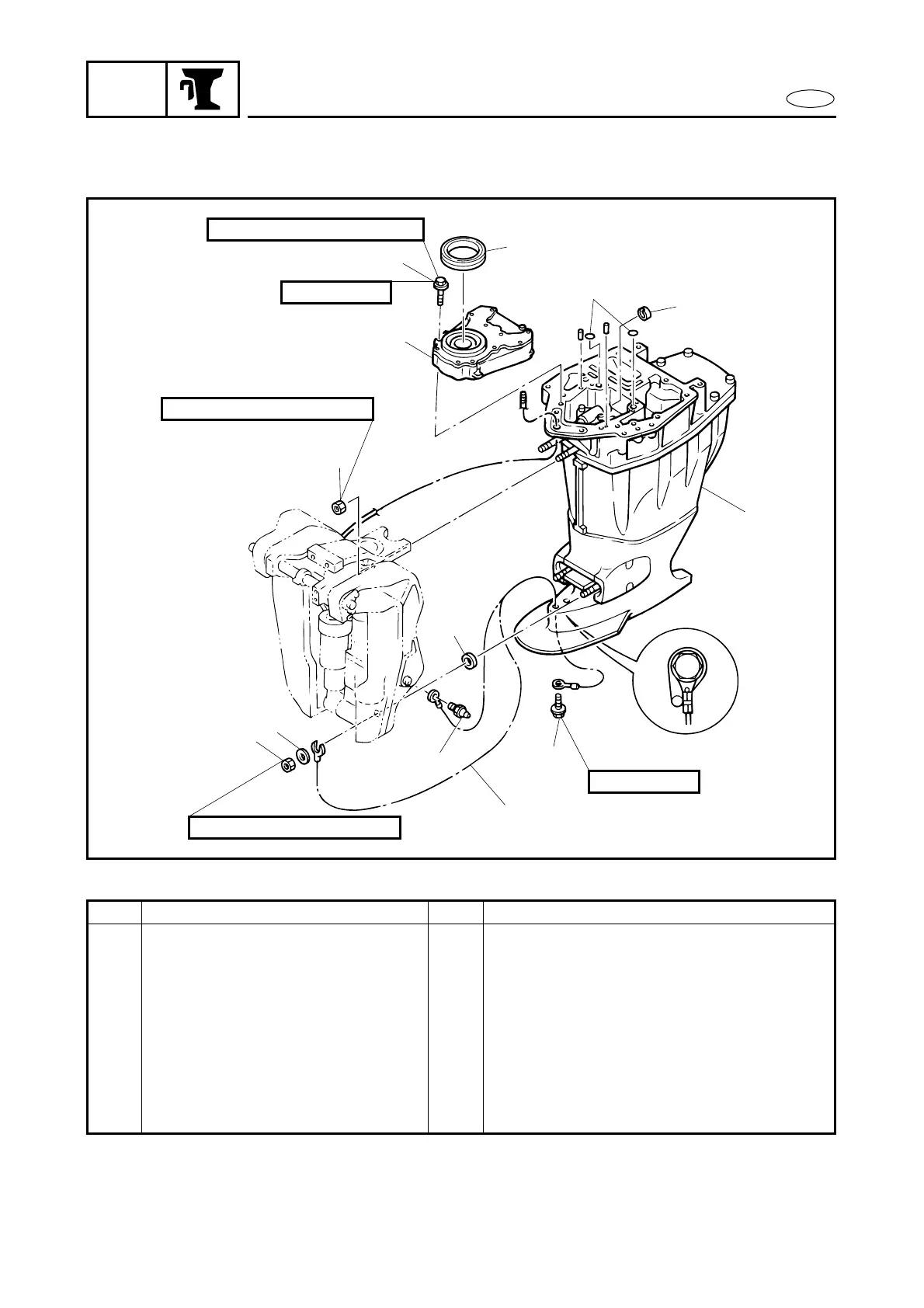

EXPLODED DIAGRAM
1
2
4
3
8
9
10
12
5
6
13
6 × 45 mm
8 × 16 mm
52 Nm (5.2 m
•
kg, 38 ft
•
Ib)
52 Nm (5.2 m
•
kg, 38 ft
•
Ib)
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
11
7
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
UPPER CASE ASSY. REMOVAL Follow the left “Step” for removal.
Lower unit Refer to “LOWER UNIT” in chapter 6.
Bottom cowling Refer to “BOTTOM COWLING”.
1 Bolt 6
2 Oil pump 1
3 Seal 1
4 O-ring 2
5 Grease nipple 1
6 Bolt 1
