7-17

BRKT

SWIVEL BRACKET

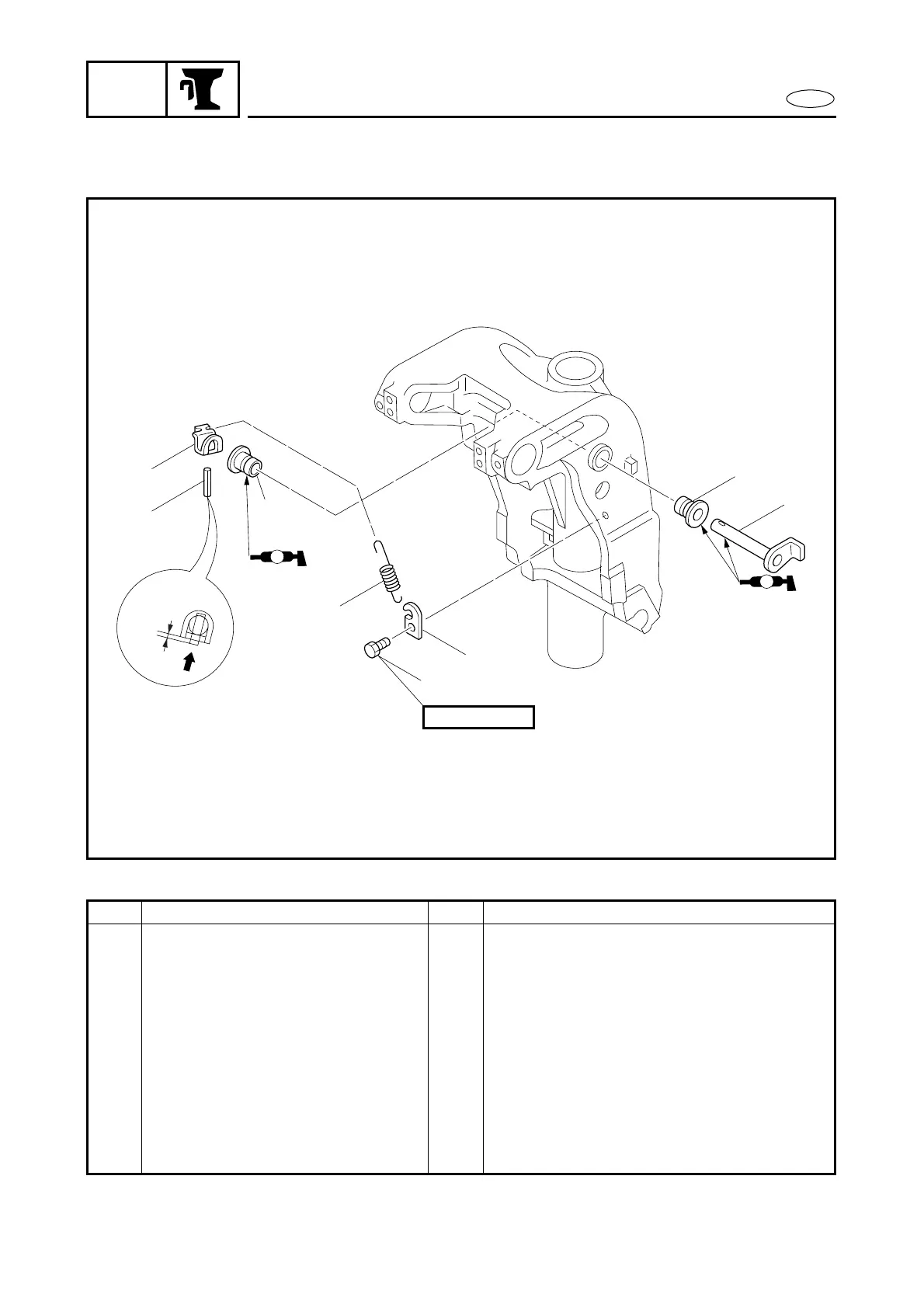

EXPLODED DIAGRAM

3 mm

6 × 10 mm

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

SWIVEL BRACKET

DISASSEMBLY

Follow the left “Step” for removal.

1 Spring 1

2 Bolt 1

3 Spring hook 1

4 Spring pin 1

5 Tilt lever 1

6 Tilt support lever 1

7 Bushing 2

Reverse the disassembly steps for

installation.
