6-10

LOWR

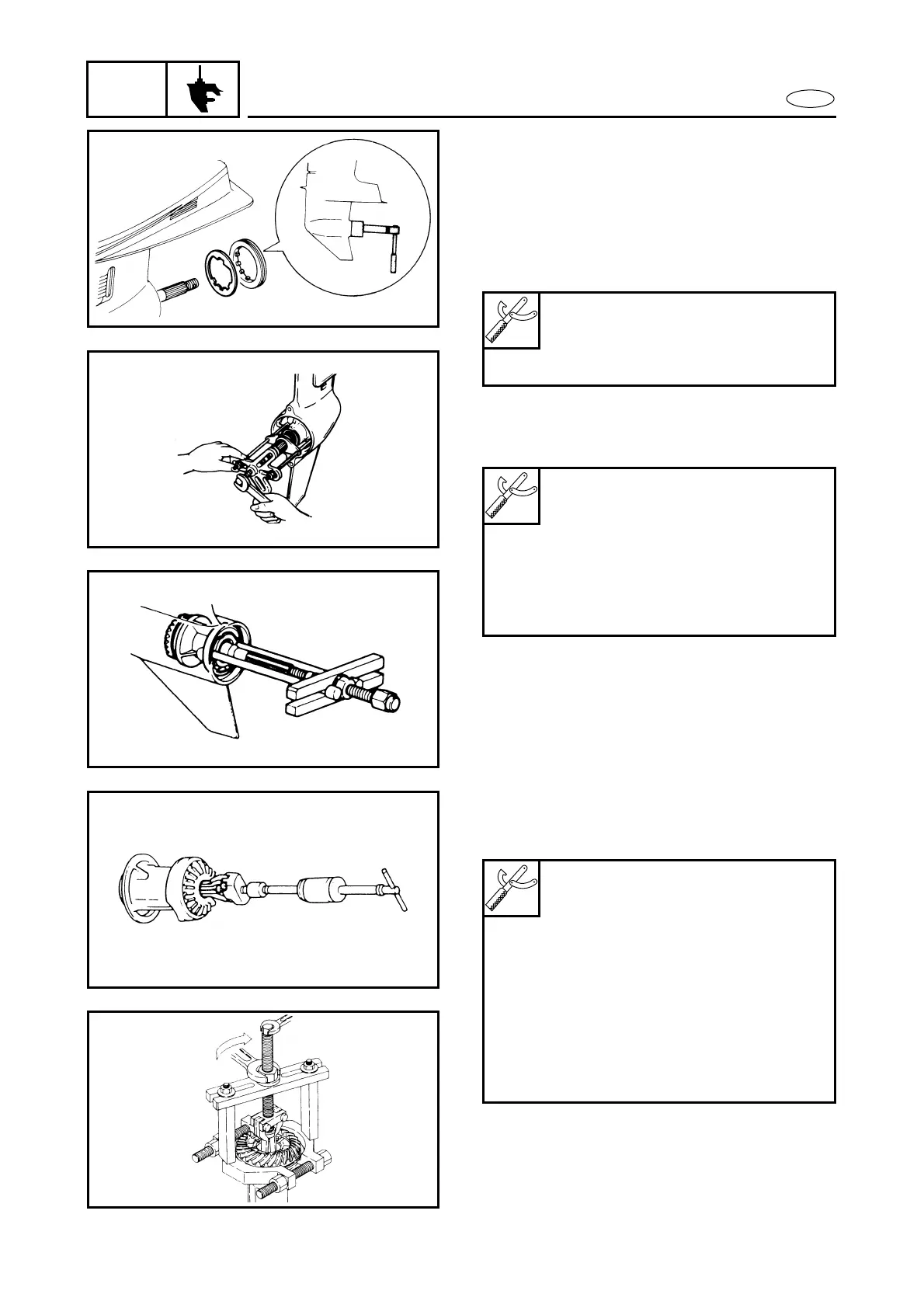

PROPELLER SHAFT HOUSING ASSY.

SERVICE POINTS

Propeller shaft housing assy. removal

1. Straighten:

● Claw washer tabs

2. Remove:

● Ring nut

● Claw washer

3. Remove:

● Propeller shaft housing assy.

● Straight key

Å For USA and CANADA

ı For worldwide

Ring nut wrench:

YB-34447/90890-06511

Extension:

90890-06513

Bearing housing puller:

YB-06207/90890-06502

Universal puller:

YB-06117

Stopper guide plate:

90890-06501

Center bolt:

90890-06504

Propeller shaft housing assy. disassembly

1. Remove:

● Reverse gear

Å For USA and CANADA

ı For worldwide

Slide hammer:

YB-06096

Bearing separator:

YB-06219/90890-06534

Stopper guide plate:

90890-06501

Stopper guide stand:

90890-06538

Bearing puller:

90890-06535

Claw:

90890-06536
