Yamaha F100X Service Manual

3-6
INSP
ADJ
E
CONTROL SYSTEM

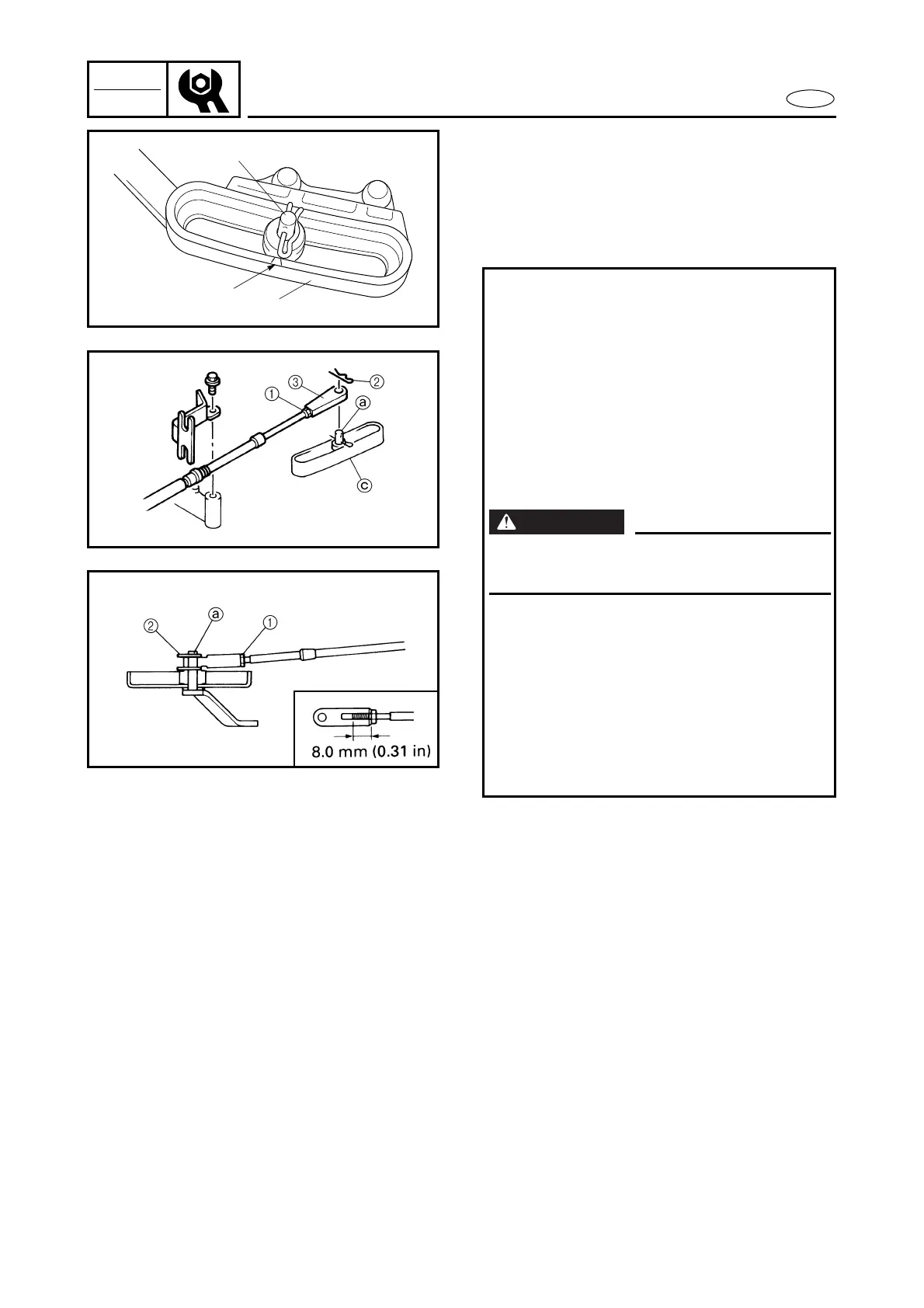

Shift cable adjustment
1. Check:
● Shift operation
Incorrect → Adjust.
2. Adjust:
● Shift cable joint position
3. Check:
● Shift operation
Unsmooth operation → Repair.
Adjustment steps:
● Align the center of the set pin a with
the mark b on the bracket c.
● Loosen the locknut 1 and remove the
clip 2.
● Remove shift cable joint 3 from the
set pin.
● Position the remote control lever in the
neutral position.
● Adjust the position of the shift cable
joint until it aligns with the set pin.
● Install the shift cable joint onto the set
pin.
● Install the clip and tighten the locknut.
● Move the remote control lever to the
forward, neutral, and reverse positions
and make sure it shifts smoothly and
correctly. If the shifting operation is
unsmooth or incorrect, repeat the
above procedure.
a
b
c
WARNING
The shift cable joint must be screwed in at
least 8 mm (0.31 in).
