Yamaha F100X - Power Unit Exploded Diagram; Removal and Installation Chart

5-4
E
POWR
POWER UNIT
POWER UNIT

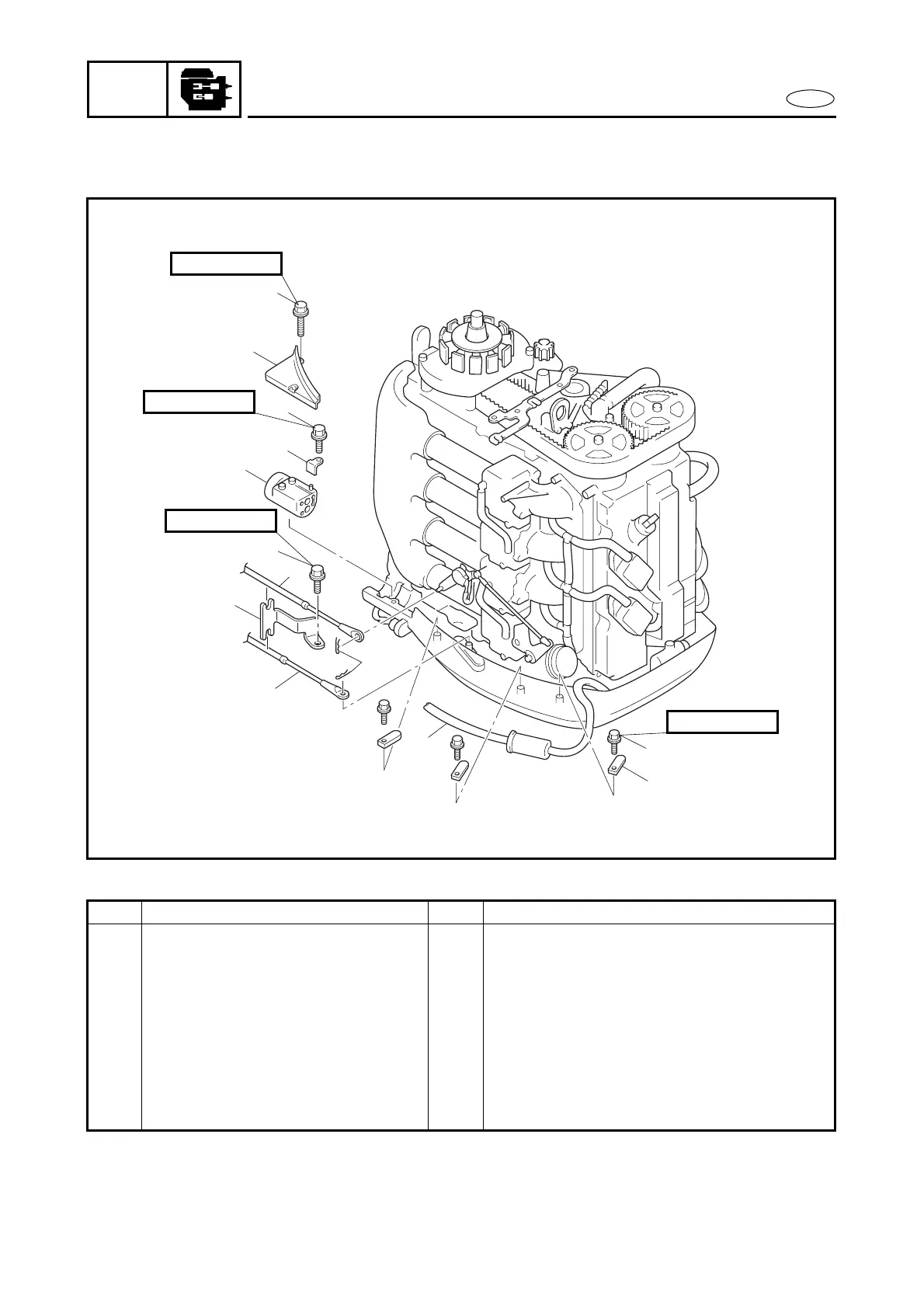

EXPLODED DIAGRAM
1
2
3
4
8
6
7
10
5
13
12
11
9
6 × 20 mm
6 × 20 mm
6 × 25 mm
6 × 25 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CONTROL CABLE REMOVAL Follow the left “Step” for removal.
Battery leads Disconnect the leads form the battery ter-
minals.
1 Bolt 2
2 Grommet retaining plate 1
3 Bolt 1
4 Hose locating plate 1
5 Clip 2
6 Bolt 1
