6-29
E
LOWR
SHIMMING
MEASURING THE BACKLASH
NOTE:
● Do not install the water pump compo-
nents when measuring the backlash.
● Measure the forward gear backlash.
● If the forward gear backlash is larger than
specified, the pinion gear may be too
high.
● If the forward gear backlash is smaller
than specified, the pinion gear may be too
low.
● If either of these conditions exists, then
check the pinion gear shim selection.
1. Place the shift rod in the neutral posi-
tion.

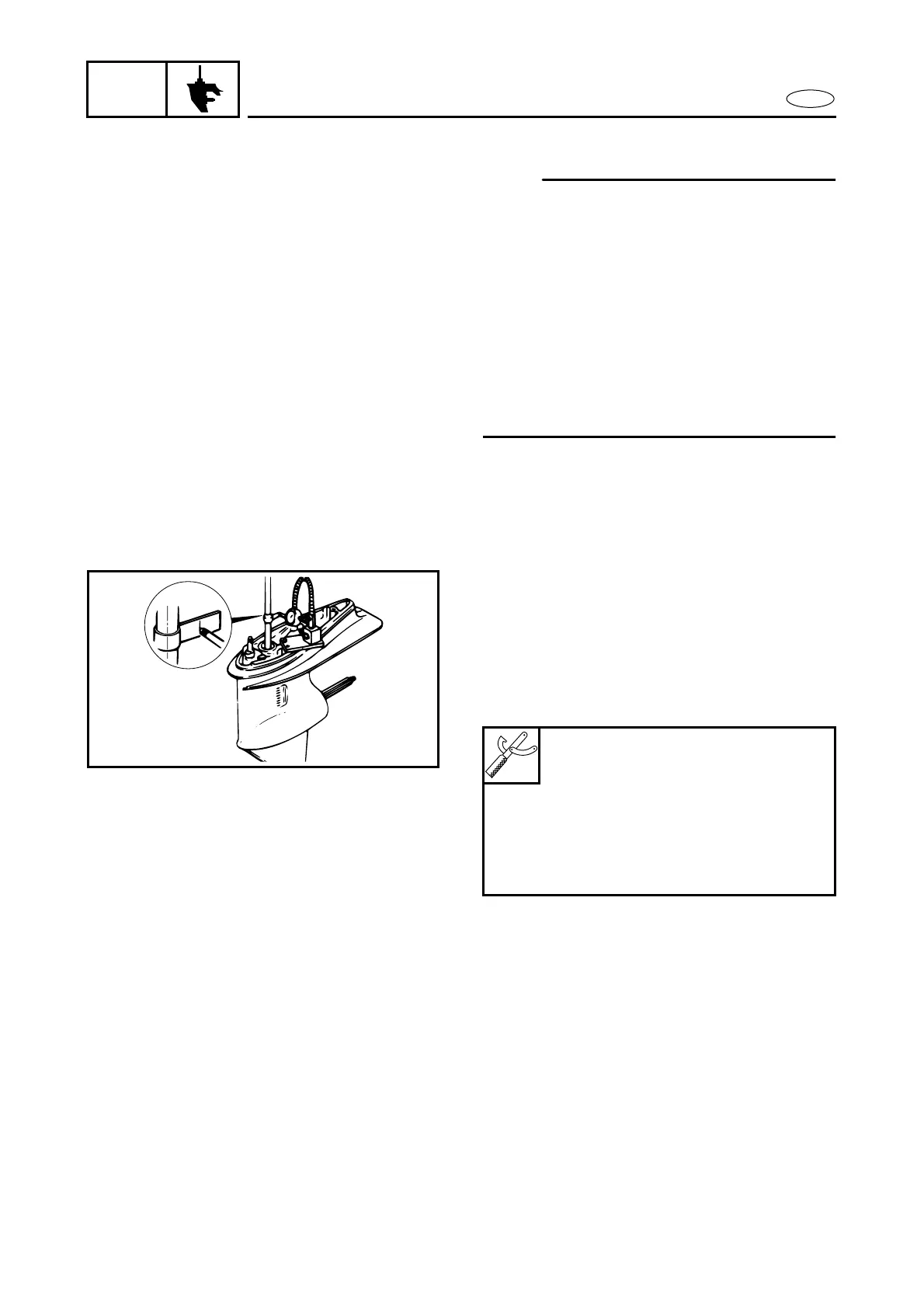

2. Install the dial gauge onto the lower
case.
3. Install the backlash indicator on the
drive shaft and have the dial gauge
plunger contact the specified point.
Dial gauge:
YU-3097/90890-01252
Magnet base:
YU-34481/90890-06705
Backlash indicator:
YB-06265/90890-06706
Backlash adjusting plate:
YB-07003
