CONTROL SYSTEM

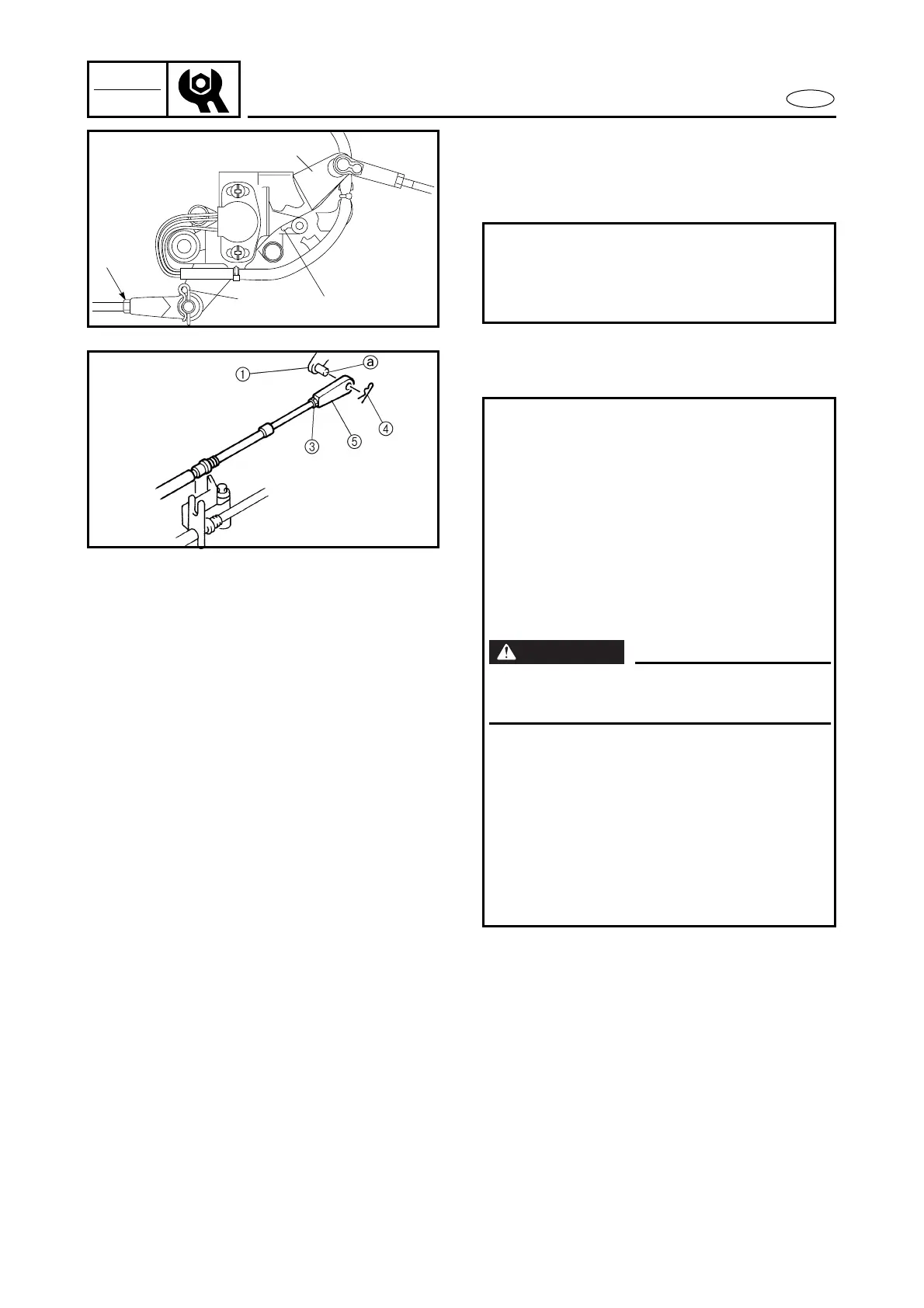

Throttle cable adjustment
1. Check:
● Fully closed position
Incorrect → Adjust.
Checking steps:
● Fully close the throttle.
● Check that the throttle control lever 1
touches the fully-closed stopper 2.
1
2
3
4
2. Adjust:
● Throttle cable joint position
Adjustment steps:
● Contact the throttle control lever 1
with the fully-closed stopper 2.
● Loosen the locknut 3 and remove the
clip 4.
● Remove throttle cable joint 5 from the
set pin a.
● Position the remote control lever in the
neutral position.
● Adjust the position of the throttle cable
joint until it aligns with the set pin.
● Install the throttle cable joint onto the
set pin.
● Install the clip and tighten the locknut.
● Open and close the throttle (at the
remote control) several times and
make sure the throttle valves open and
close smoothly and correctly. If the
throttle operation is unsmooth or
incorrect, repeat the above procedure.
WARNING
The throttle cable joint must be screwed
in at least 8 mm (0.31 in).
