Yamaha F100X Service Manual

7-20
E
BRKT
PTT MOTOR, PUMP HOUSING, AND TILT
CYLINDER

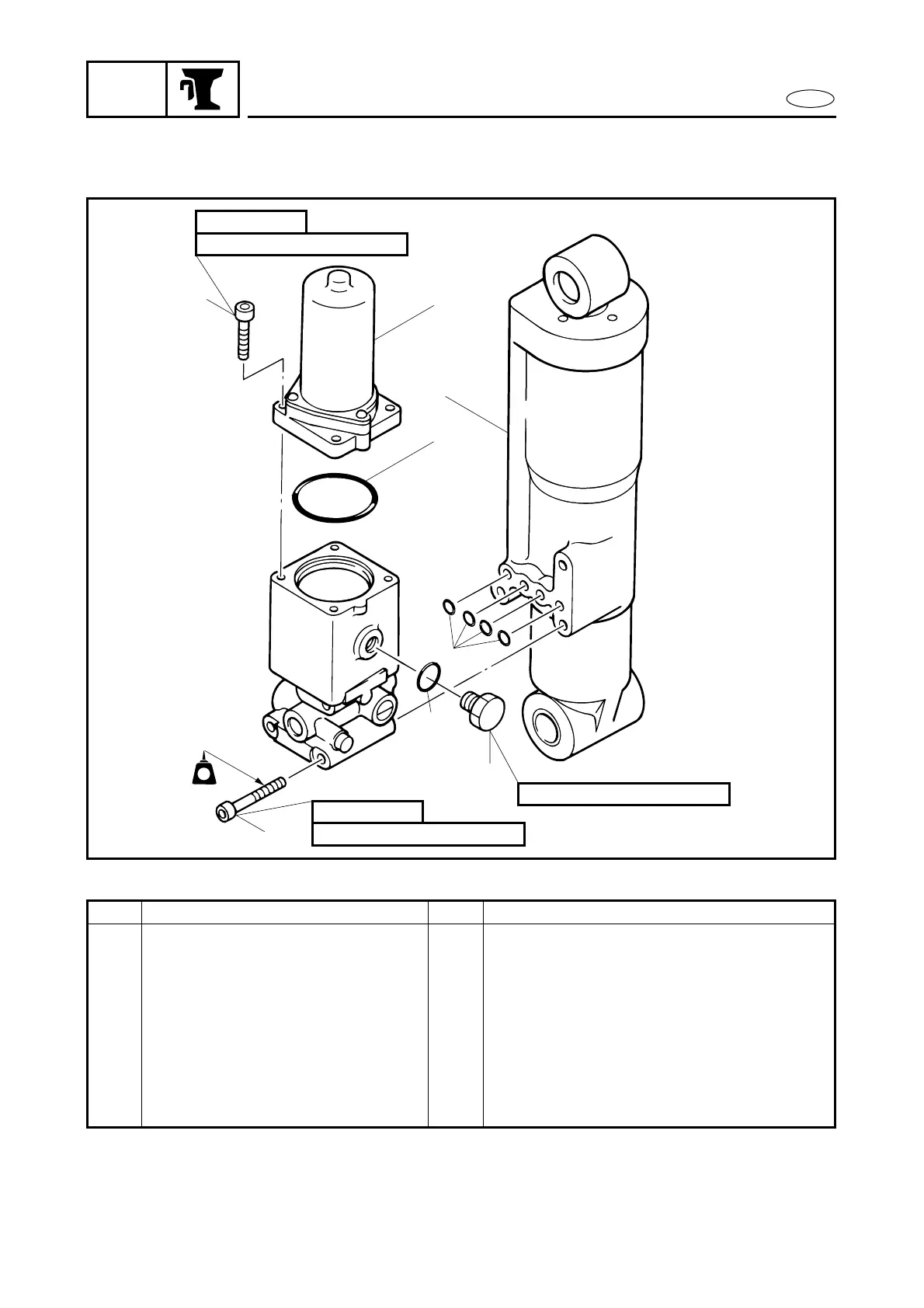

PTT MOTOR, PUMP HOUSING, AND TILT CYLINDER
EXPLODED DIAGRAM
1
3
4
5
2
6
7
8
6 × 20 mm
6 × 75 mm
LT
LT
572
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
9 Nm (0.9 m
•
kg, 6.5 ft
•
Ib)
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PTT MOTOR, PUMP HOUSING,
AND TILT CYLINDER REMOVAL
Follow the left “Step” for removal.
Power trim and tilt (PTT) unit Refer to “POWER TRIM AND TILT (PTT)
UNIT”.
1 Reservoir plug 1
2 O-ring 1
3 Bolt 3
4 Tilt cylinder assy. 1
5 O-ring 4
