5-15

POWR

IGNITION COILS AND STARTER MOTOR

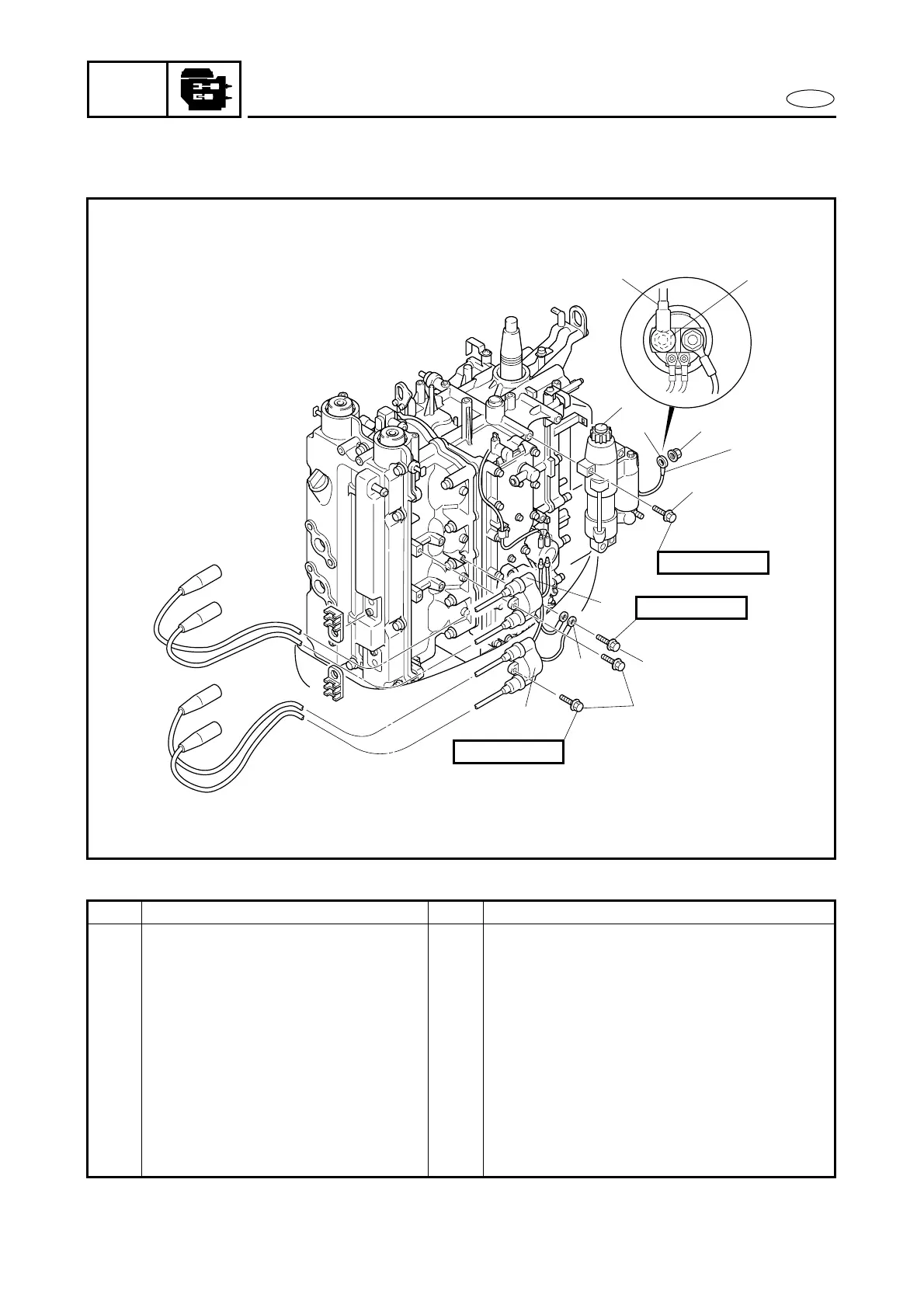

EXPLODED DIAGRAM

B/W

6 × 30 mm

6 × 20 mm

8 × 45 mm

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

IGNITION COILS AND STARTER

MOTOR REMOVAL

Follow the left “Step” for removal.

1 Bolt 1

2 Ground lead 2

3 Bolt 4

4 Ignition coil 2

5 Nut 1

6 Relay (magnetic switch) lead 1

7 Bolt 3

8 Starter motor 1

Reverse the removal steps for installation.
