6-9

LOWR

PROPELLER SHAFT HOUSING ASSY.

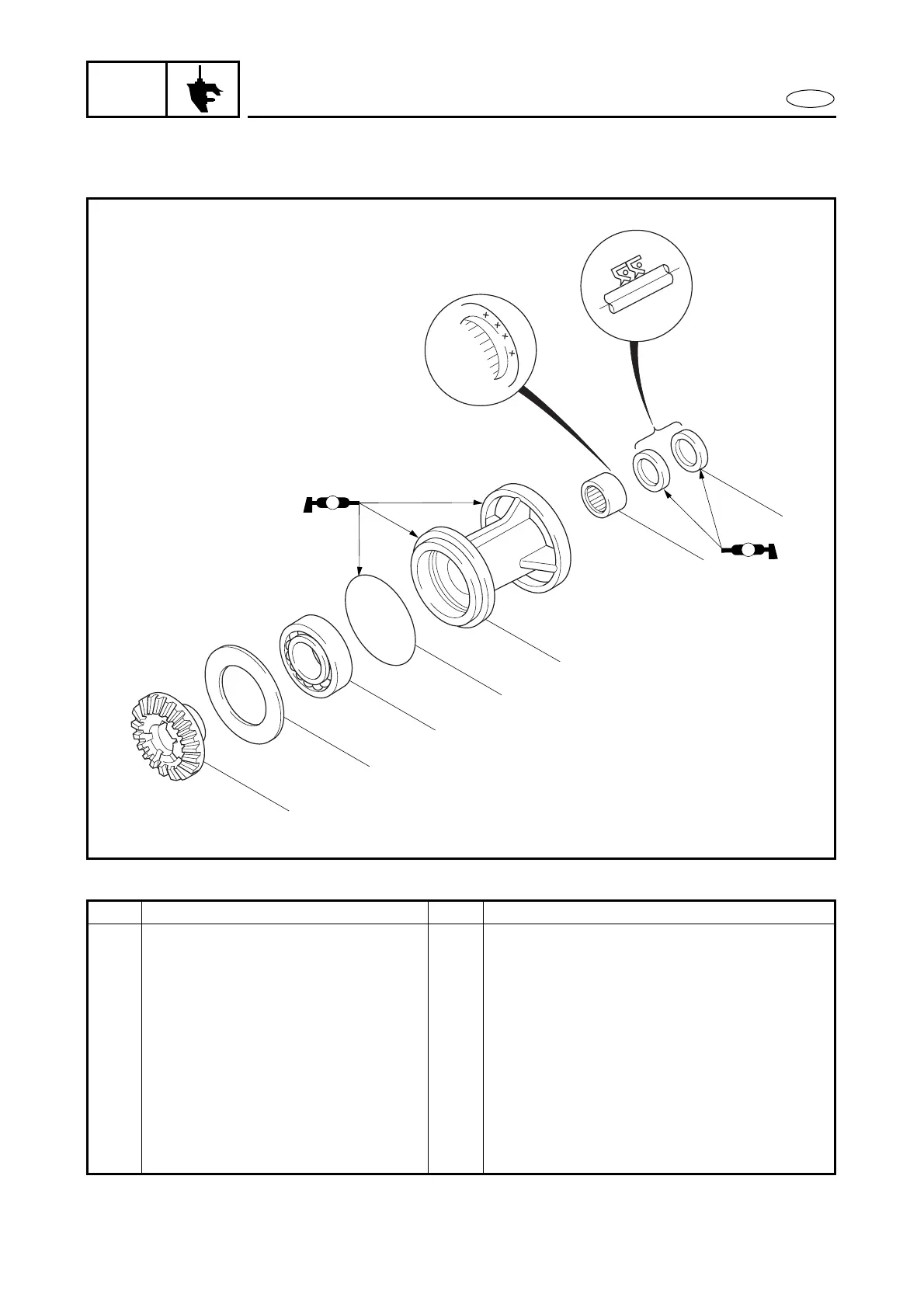

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

PROPELLER SHAFT HOUSING

ASSY. DISASSEMBLY

Follow the left “Step” for removal.

1 O-ring 1

2 Reverse gear 1

3 Thrust washer 1

4 Ball bearing 1

5 Oil seal 2

6 Needle bearing 1

7 Propeller shaft housing 1

Reverse the disassembly steps for

installation.
